DGL1010GM – RedBack Electronic Digital Grade / Slope with Tracking Grade Match H/V with MM Receiver
RedBack Lasers DGL1010GM is an electronic auto levelling rotating laser level with Dual Digital Grade and Auto Grade Match with horizontal and vertical modes of operation. Ideal for concreting, general site levelling, plumbing and earthmoving. Included is a heavy duty grade match receiver with dual mm displays and staff clamp, smart remote control, rechargeable batteries and charger and hard shell carry case. This is the ultimate all round laser for site levelling, grading for plumbing or earthmoving and even fencing with it tracking feature used in the vertical plane. more details and videos below.
The DGL1010GM is an electronic digital grade / slope with tracking grade match rotating laser.
Digital Grade with Tracking Video Guides followed by Descriptions and Specifications
The RedBack Lasers DGL1010GM Digital Grade / Slope Laser with Tracking laser is fully electronic self levelling and features dual digital grade setting either from its control panel or Smart Remote. It is the ultimate in Grade setting on site.
Digital Grade with Tracking
DGL1010GM can set up to a 10% grade one axis at a time or both axis simultaneously and grades can be set to 3 decimal places. The sophisticated mechanism will even re-level and re-set grade automatically if disturbed or you can select TILT to warn of any major knocks or vibrations, so, providing peace of mind your grades are accurate.
The DGL1010GM can, in addition, auto grade match on either axis by locking onto the special two way RF communicating tracking millimeter receiver. The laser level on the selected axis slopes up and down to find the receiver and then locks onto its position, once locked the laser even displays the percentage grade it has matched to. This tracking feature can also be used with the laser on its side for vertical alignment. Making it an awesome fencing laser, see video on fence alignment above.
DGL1010GM tracks to the height of the receiver and locks on to provide auto grade match. (Drag slider above to see animation)
The DGL1010GM also features V-W-S vibration and Wind Settings, during high winds or on side with heavy machinery the laser may stop to re-level frequently. To save time select V-W-S and the laser will continue rotating whilst making these small adjustments, thus saving a great deal of time on site.
Another feature is TILT. When selected this operates much like tilt on a pin ball table, any major movement or vibration and the laser will shut down, thus warning the user. The user can then make sure everything is still true to the datum and let the laser re-start.
Horizontal and Vertical
RedBack Lasers DGL1010GM can also operate in vertical rotation mode for alignment and site layout applications and has scan line mode to intensify laser clarity for indoor fit out.
The DGL1010GM can use its tracking receiver in vertical mode with the laser on its side. This is handy for jobs such as fence alignment or site squaring layout when used in combination with the laser dot at 90 degrees to the rotating beam.

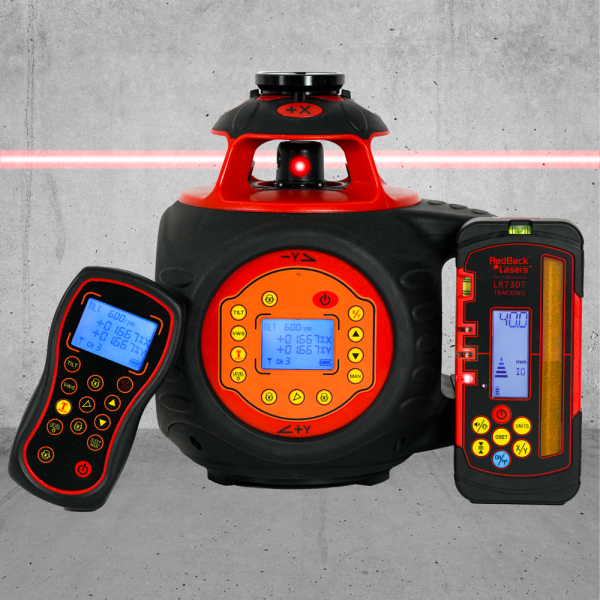

The DGL1010GM comes with a Smart Remote with LCD display, the remote can control nearly all the facets of the laser level but is particularly handy for setting digital grades, for example, when you have the laser high in the air (using HDET 3m Tripod). This laser comes with a special heavy duty double LCD display receiver that not only sets automatic grade match but also has a large reception window and displays distance from level in millimeters, Also included is Li-ion rechargeable laser level batteries and charger, Axis alignment scope, axis fine adjustment plate, side mount plate and a hard shell carry case.
The DGL1010GM laser is suitable for just about any general levelling tasks but is designed for serious grade or slope setting in earthmoving and civil construction.
So if you need a serious digital grade laser, with dual axis, auto grade match, millimeter receiver and Li-ion power all as standard then the DGL1010GM by RedBack Lasers is the tool for you.
The RedBack DGL1010GM comes with a 5 Year manufacturers warranty.
- Electronic Self Levelling
- Horizontal Rotation for Levelling
- Vertical Rotation for Alignment and Site Layout
- Digital Dual Grade Setting
- Smart Remote Control
- V-W-S and TILT modes
- Scan Line modes for indoor fit out
- Internal cast metal Safety Cage
- Direct Drive Rotation
- INCLUDES Li-ion Rechargeable Battery & Charger also Std “D” cell Battery Operation
- RF Remote Grade Match Dual LCD Receiver with millimeter display and large reception window
- Side Mount Plate
- Axis Alignment Scope
- Axis adjustment plate
- 5 Year RedBack Warranty
- Range – 600m diameter using Millimeter Receiver
- Accuracy – +/- 1mm at 20m
- Grade – Dual Axis +/- 10.000%
- Remote Range – 60m
- Laser Class – class 3 <5mW 635-670nm red
- Water Dust Resistance – IP66
Compare with other lasers in this range Compare
Also available the FAK1010 Fence Alignment Kit which makes this laser ideal for long distance fence alignment tasks in commercial and rural situations. CALL 1800 769 858 for details.
Fence Alignment Kit FAK1010 designed for use with the RedBack DGL1010GM
RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Fukuda, aLIne, Bince, Stabila, Stanley, sokkia, Spectra Precision HV302
|Dimensions||40 × 51 × 29 cm|
Brochure PDF can be viewed, printed and downloaded HERE
Instruction PDF can be viewed, printed and downloaded HERE
NOTE instruction for DGL1010VS cover most features of the DGL1010GM. The addition instruction sheet following contains the additional features of the DGL1010GM model.
Additional Instruction PDF can be viewed, printed and downloaded HERE
Additional Instructions PDF Purchased Later 2020 HERE
