A Premium Machine Receiver
360° reception & a massive 260mm sensor length. The MR825WD has ultra-bright LED height indicators, featuring Plumb Swing & Blade Tilt.
MR825WD

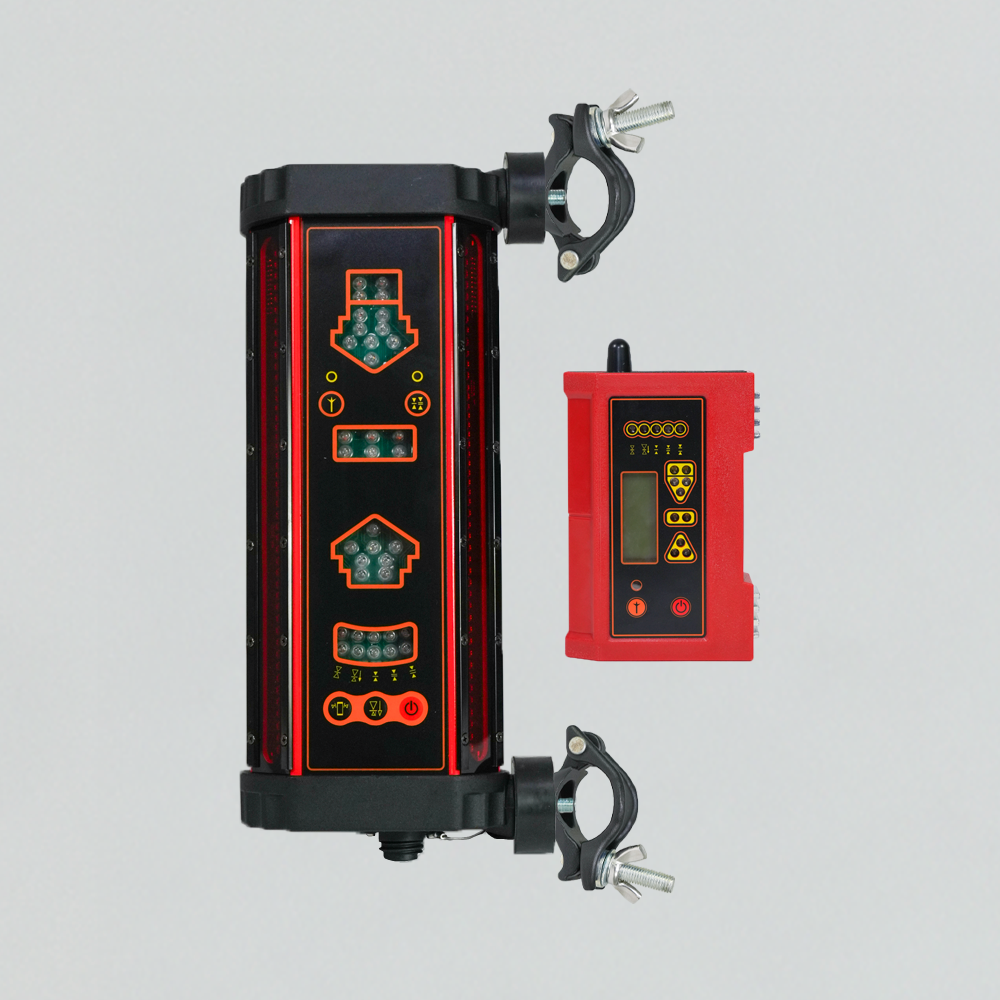

RedBack Machine Receiver with Wireless In-Cab
- No more getting in & out of the cabin of your Earthmoving Machinery
- The ultimate Machine Receiver for features & flexibility
- Wireless In-Cabin Display makes swapping machinery a breeze
- Easy Height Reading with Plumb Swing for Excavators & Blade Tilt Indicators
- Comes complete with Magnet & Clamp Mounts in Hard Case
Some accessories shown are optional extras. See what's included
$3,199.00inc GST
Out of stock
Out of stock — get notified
Leave your details and we'll let you know the moment it's back.
- Free delivery Australia-wide. Dispatched fast from our warehouse.
- 2 Year warranty. Warranty and care details
- Talk to a laser specialist. Call 1800 769 858 or .
Overview
RedBack Lasers' MR825WD Wireless Machine Mounted Receiver with Clamp & Magnetic Mounts Includes wireless In-Cab Unit & Displays Laser Height, Blade tilt (left to right), Plumb Swing (front to back). Great package for Laser Planes, Box Blades, Grader Blades, Dozers, Backhoes and more...
RedBack Machine Receiver with Wireless In-Cab Display
RedBack MR825WD machine receiver with wireless comes with both clamp mount and magnetic mounting options. The MR825WD includes a wireless in-cab repeater unit providing a convenient remote display directly in your cab without any cables.
One specialist feature of this system is Blade Tilt indication — when mounted on a dozer or grader blade, it indicates when the blade is level or at an angle. Another specialist feature is Plumb Swing indication — when mounted on a backhoe, it indicates when the receiver/arm is vertically upright or tilting forward or back, ideal for getting correct depth in trenching.
The RedBack MR825WD requires a red Class 3 rotating laser level for optimum range and performance, such as the RedBack DGL1010VS, DGL1010GM or DGL2510Q. It can also be operated at a reduced range with a Class 2 red beam rotating laser such as the EGL624.
This is a great machine receiver for Laser Planes, Box Blades, Grader Blades, Dozers, Backhoes and more.
The RedBack Lasers MR825WD wireless machine mounted receiver is specifically designed for earthmovers, excavating and large civil construction jobs. Having all the information inside your cab saves huge amounts of time jumping in and out, or having a second person on the ground checking your work. The receiver is extremely well built, watertight, and features dampening between the receiver and the mounting options.
Videos
MR825WD Wireless Machine Receiver - Feature Deep Dive
Key Features
Large Rechargeable Battery
The MR825WD features a larger Ni-MH rechargeable battery for up to 40 hours of continuous use. Includes Mains Charger for easy charging.
All The Mounting Options
The MR825WD includes a pair of both magnetic mounts and adjustable clamp mounts. Simply screw your required mounts onto the receiver and attach to your equipment.
Mount Anywhere. Read Anywhere
The wireless In-Cab Display keeps height readings right in front of you. Allows you to have your laser and receiver above the machine cabin to avoid shadowing.
Desired Accuracy at a Button Press
The MR825WD features Blade Tilt Mode for Bulldozers & Graders. The LEDs display the level of the blade between left & right on the receiver's LED display or In-Cab Display.
Accurate & Consistent Cutting Depths
Excavator Mode on the MR825WD indicates if a boom arm is tilted away from or towards the machine cabin. The LEDs will flash quickly when tilted away, flash slowly when tilted towards, and illuminate solid when plumb to ground.
- Premium Wireless Earthmoving Receiver
- Convenient "Heads-up" Height Readings while operating
- Easy to use solution for swapping between multiple machines
- Wirelessly connects to In-Cabin Display
- Plumb Swing Indication
- Blade Tilt Indication
- 3 x Accuracy Settings (Fine, Standard, Coarse)
- Magnet Mount for Excavator Use
- Clamp Mount for Pole Mounting onto Blades or Buckets
- Last Known Position Indication

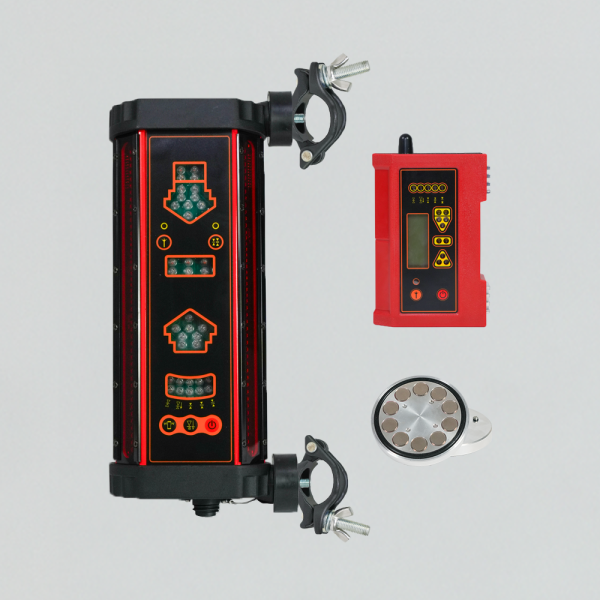

What's Included
- 1MR825 Machine ReceiverPremium Machine Receiver with Easy Height Readings, Plumb Swing, & Blade Tilt indicators.
- 2Clamp Mounts PairMount your receiver onto 50mm round pole.
- 3Magnet Mounts PairAllows for easy mounting onto excavators & earthmoving equipment.
- 4240V Mains ChargerEasily recharge your receiver.
- 5WRD In-Cab DisplayMount the In-Cab display anywhere in your machine without the need for wiring. Perfect when visibility of your receiver is poor.
- 6In-Cab Magnet Mount
- 7In-Cab Clamp Mount
- 8In-Cab Glass Suction Mount
- 9Heavy Duty Carry CaseHard exterior carry case with foam-cut inserts for receiver & accessories
Full Specifications
| Sensor Length | 250mm Long |
|---|---|
| Sensor Coverage | 360° |
| Compatible lasers | Rotating lasers |
| Accuracy Settings | ± 5mm, ± 10mm, ± 20mm |
| Maximum Range | ~200m Radius with Class 3 Red Beam Lasers |
|---|---|
| Water Dust Resistance | IP67 |
| Battery Type | Internal NiMH Rechargeable Battery |
| Warranty | 2 Year |
Built for Professionals
Earthmoving
Machine receivers help you achieve maximum efficiency while earthmoving. Get height readings from the comfort of your cabin - no more jumping out to check your staff.
Complete Your Setup
Reviews
5.0 ★★★★★2 reviews
Only verified customers can leave a review
Unreal machine saves heaps of time not having to get out of the machine and get the levels yourself
Jack went above and beyond to help me and keep operational downtown to a minimum. Very happy with the unit does everything as advertised!
Spare Parts
-
Clamp Mounts [Pair] to suit MR7 Series & MR825 Machine Receivers
$150.00
Add
-
Magnet Mounts [Pair] to suit MR7 Series & MR825 Machine Receivers
$150.00
Add
-
CASE DRedBack Lasers carry case shell for DGL, MR and PL ranges
$179.00
Out of stock -
MRP-A800B | Adjustable 800–1400mm Machine Receiver Pole with Bolt-On Bracket
$690.00
Add
-
MRP-A800W | Adjustable 800–1400mm Machine Receiver Pole with Weld-On Bracket
$690.00
Add
-
MRP-800MC | 800mm Machine Receiver Pole with Magnet & Clamp Bracket
$499.00
Add
Care Information
2 Year Warranty
A genuine "No-BS" warranty - no signup or regular calibration/service required to get the full term.
Looking after it
Machine Mount Receivers are pretty easy to look after!
The best advice we can give is to make sure your receiver is fully dry before storing it back in the case for an extended period of time. Water vapours can ingress inside places where water itself can't, which can cause condensation to build inside the unit.
Avoid getting the magnets stuck together unless you like a challenge!
Calibration & servicing
Machine Receivers don't require calibration. If you need any service/repairs done you can contact us for options.
