RedBack Lasers MR708 Machine Mounted Receiver

RedBack MR708 machine-mounted receiver with a clamp mount.  The MR708 is designed to work with most red rotating laser levels.  This model features clamp mounting on a machine with rod structure (not supplied) on either a boom or blade/bucket which makes it extremely secure.  The MR708 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window.  When the laser moves out of this reception window the receiver will flash slowly indicating the last height the laser was detected.

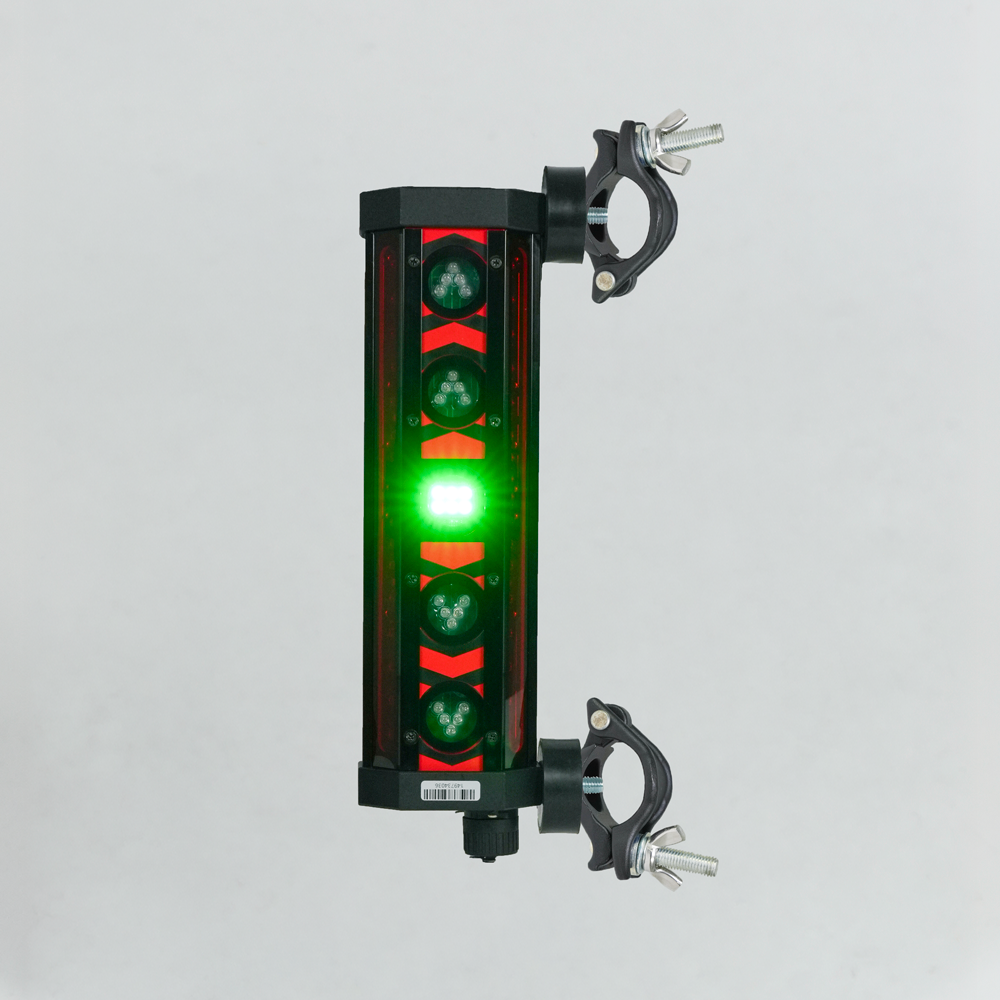

MR708 Machine Receiver with Clamp Mount

On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser.  These display both above and below level as well as on level.  The RedBack Lasers MR708 has an internal Ni-mh battery that can be charged with the included mains charging unit.  It can also operate on a 12 or 24V system with the included cable with crocodile clips.  Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.

Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines.  This is a great receiver for Box Blade, Grade Blade, Dozer, Bobcat, Skid Steer and more.


  • 360 Degree Sensors for all-round reception
  • Large 250mm Reception Window
  • Laser Received Height Flash Indicator
  • Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
  • IP66 water and dust-tight
  • Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
  • Operates with Red Beam Rotating Lasers.
  • Two Year Warranty

Also available as a magnetic Mounted unit MR706 HERE


RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Fukuda, aLIne, Bince, Stabila, Stanley, sokkia, Bear, Apache,

Weight7.1 kg
Dimensions40 × 51 × 29 cm


Brochure PDF can be viewed, printed and downloaded HERE

Instruction PDF can be viewed, printed and downloaded HERE
