Machine Mounted Receiver MR706

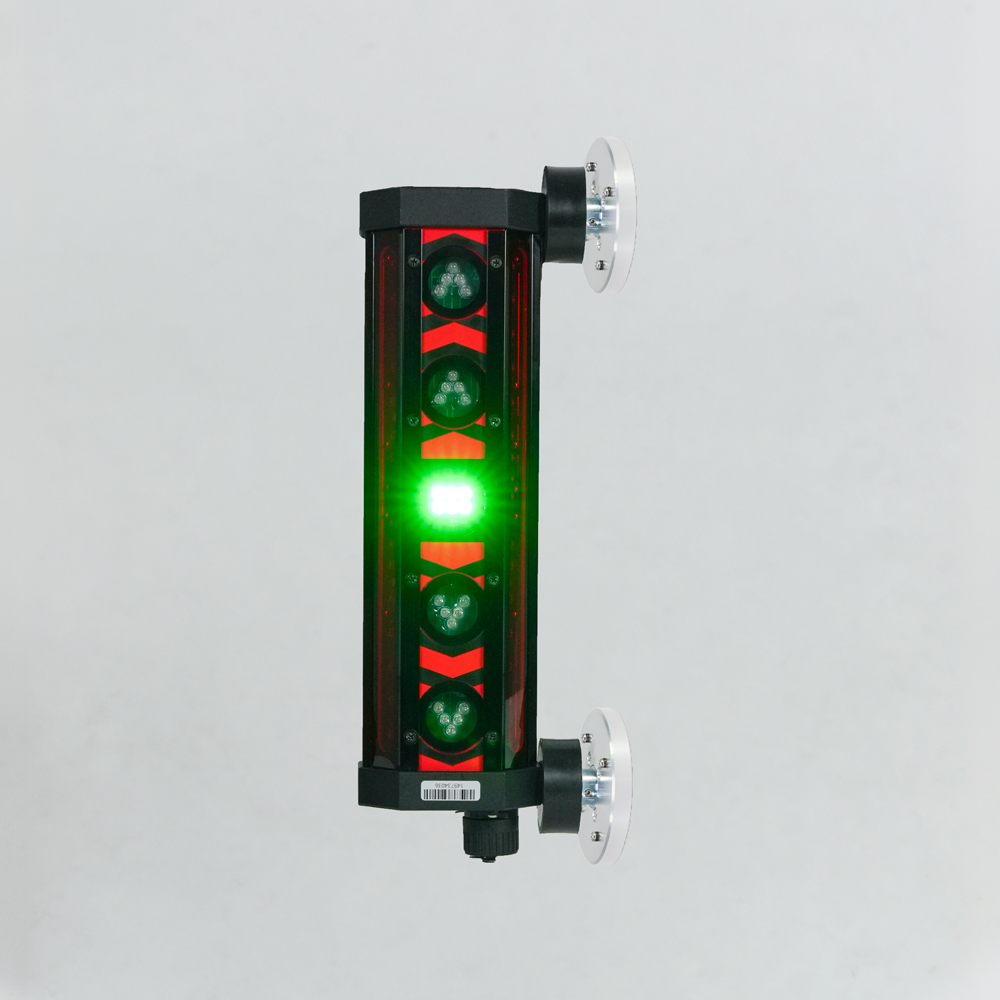

RedBack Lasers MR706 machine mounted receiver with magnetic mount.  The MR706 is designed to work with most red rotating laser levels.  It features magnetic mounting for attaching to a machine dipper arm boom or blade/bucket. This is a great receiver for Excavators, Backhoes and more.

The MR706 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window.  The receiver will flash slowly it indicates when the laser moves outside of the reception window and shows the height at the laser was last detected.  On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser.   Both above and below level as well as for level.

MR706 machine receiver

The RedBack Lasers MR706 has an internal Ni-mh battery that can be charged with the included mains charging unit.  It can also operate on a 12 or 24V system with the included cable with crocodile clips.  Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.

Machine receivers are ideal for all types of earthmoving and groundworks, excavating for level and grades, and can be installed on a number of machines.


  • 360 Degree Sensors for all-round reception
  • Large 250mm Reception Window
  • Laser Received Height Flash Indicator
  • Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
  • IP66 water and dust-tight
  • Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
  • Operates with Red Beam Rotating Lasers.
  • Two Year Warranty

Also available with Clamp Mount MR708 HERE


RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Fukuda, aLIne, Bince, Stabila, Stanley, sokkia, Bear, Apache

Weight7.1 kg
Dimensions40 × 51 × 29 cm


Brochure PDF can be viewed, printed and downloaded HERE

Instruction PDF can be viewed, printed and downloaded HERE
