Clamp Mount Machine Receiver with In-Cab

RedBack Lasers MR708D machine mounted receiver with clamp mount and in-cab repeater unit.  The MR708 is designed to work with most red rotating laser levels it features clamp mounting. This attaches to a rod (not supplied) on either a boom or blade/bucket which makes it extremely secure.  The MR708 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window.  When the laser moves out of this reception window the receiver will flash slowly indicating the laser height the laser was last detected.  On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser both above and below level as well as on level.  The RedBack Lasers MR708 has an internal Ni-mh battery that can be charged with the included mains charging unit.  It can also operate on a 12 or 24V system with the included cable with crocodile clips.  Note though, on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.

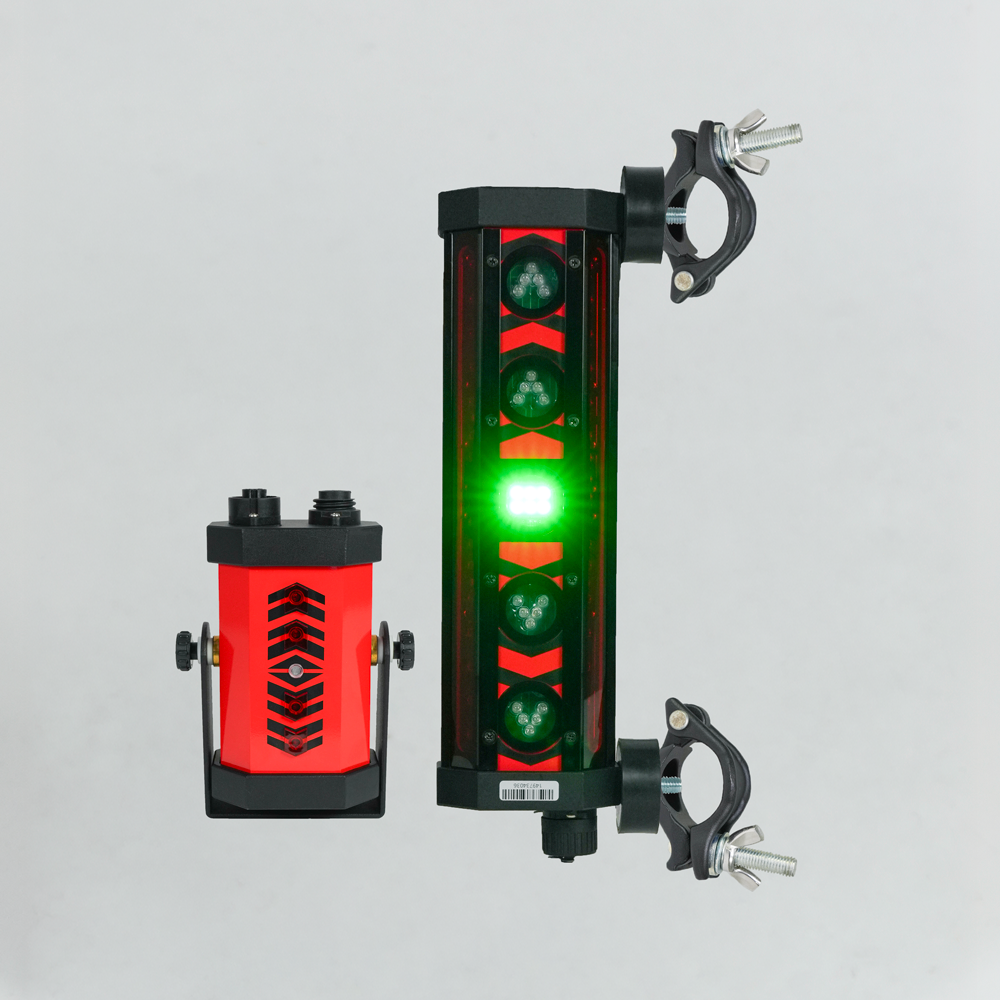

MR708D Clamp Mounted machine receiver with in-cab repeater

The RedBack Lasers MR708D pack comes also with an in-cab repeater unit and cables.  The in-cab repeater unit duplicates the display given on the receiver itself and so when placing the repeater unit inside the cab the height indication lights are easier to see.  The MR708 can be used without the in-cab repeater if desired.

Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines, backhoes, graders, etc.  This is a great receiver for Laser Plane, Box Blade, Grade Blade, Dozer, Bobcat and more.

Features

  • 360 Degree Sensors for all-round reception
  • Large 250mm Reception Window
  • Laser Received Height Flash Indicator
  • Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
  • IP66 water and dust-tight
  • Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
  • MRD In-Cab Repeater Unit and Cables
  • Operates with Red Beam Rotating Lasers.
  • Two Year Warranty

Also available as a magnetic mount MR706D HERE




RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Fukuda, aLIne, Bince, Stabila, Stanley, sokkia, Bear, Apache,

Weight7.5 kg
Dimensions40 × 51 × 29 cm

DOWNLOADS

Brochure PDF can be viewed, printed and downloaded HERE

Instruction PDF can be viewed, printed and downloaded HERE
