MR825WD-800P | RedBack Machine Receiver with Wireless In-Cab Display & 800mm Magnetic Dipper Arm Pole

1 / 5

Sensor 250mm Long

Versatility

2 Year Warranty

MR825WD-800P | RedBack Machine Receiver with Wireless In-Cab Display & 800mm Magnetic Dipper Arm Pole

0754169451318

No more getting in & out of the cabin of your earthmoving machinery
The ultimate machine receiver for features & flexibility
Wireless In-Cab Display makes swapping machinery a breeze
Easy height reading with Plumb Swing for excavators & Blade Tilt indicators
Comes complete with Magnet & Clamp Mounts in hard case
800mm magnetic dipper arm pole — ultra-strong magnets + rigid steel tube for fast, safe and reliable attachment to your excavator

$3,499.00 inc. GST

✓ In Stock | Fast Dispatch | Free Delivery

Deposit

🚚 Check Delivery Time ▼

Enter your postcode to estimate delivery to your area.

💬 Ask our Laser Specialists — Backed by 25 years of experience! ▼

For more information about this product, including specs, comparison and even to ask for a deal, get in touch with RedBack Lasers' friendly team. We'll help you choose the best option to suit your exact needs and budget.

1800 769 858

MR825WD Instruction Manual

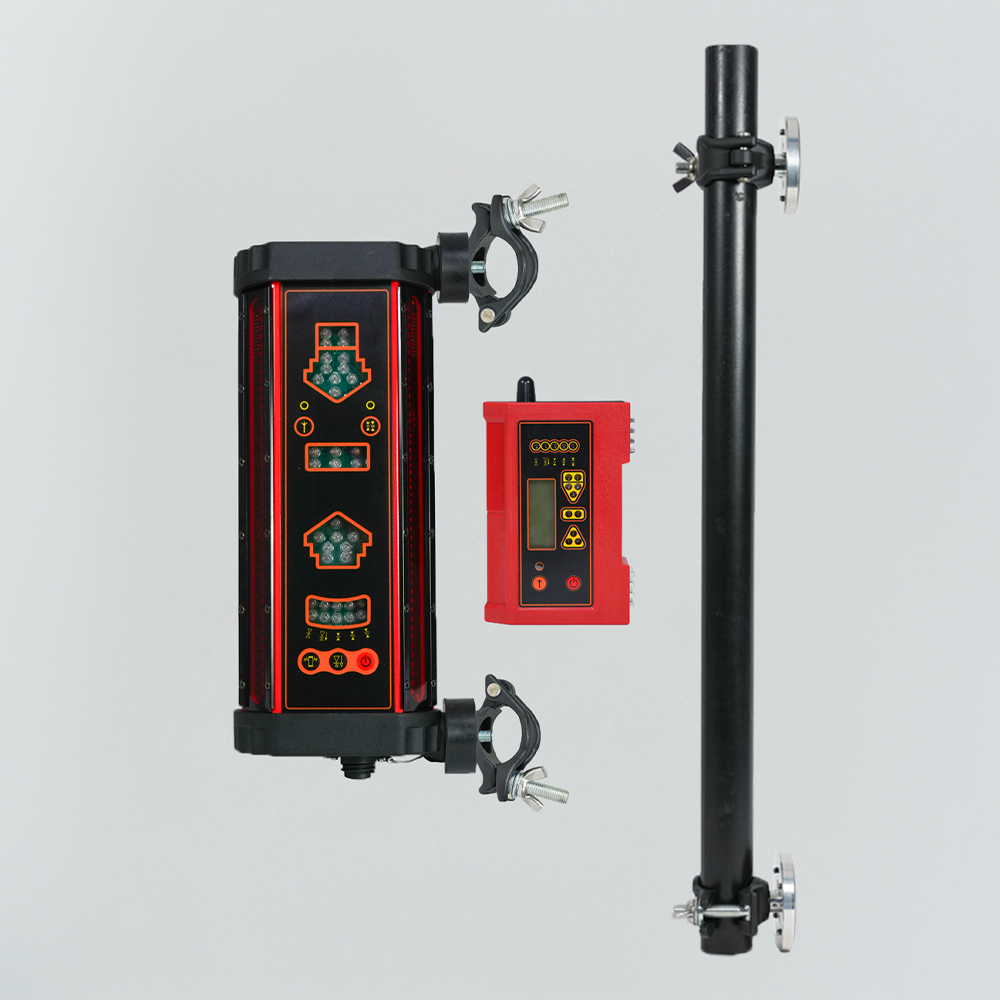

The MR825WD800P combines RedBack's premium wireless machine receiver with an 800mm magnetic dipper arm pole — purpose-built for mounting directly to an excavator's stick. Get wireless height readings, plumb swing, and blade tilt indications from the cab without stopping work.

The MR825WD800P is the ultimate earthmoving receiver kit for excavator operators who demand the best. It includes everything in the MR825WD kit, plus a heavy-duty 800mm magnetic dipper arm pole that mounts directly to the excavator stick using powerful magnets — no drilling or permanent modifications required. The 800mm × 50mm OD steel pole positions the receiver at the ideal height on the dipper arm for optimal laser beam reception. An additional pair of clamp mounts is included to secure the receiver firmly to the pole. The existing magnet mounts are still included for direct attachment to machine bodies or buckets when needed — swap between mounting options in seconds. The wireless in-cab display (WRD) means no cables to run between receiver and cabin — ideal for swapping the receiver between multiple machines on site. Combined with plumb swing indication for excavators, blade tilt indication for dozers and graders, three accuracy settings, IP67 weatherproofing, and a 40-hour battery, this is the most capable machine receiver kit in the RedBack range.

Features

Easy height readings while operating machinery — no leaving the cab
800mm Magnetic Dipper Arm Pole — mounts directly to excavator stick
50mm OD steel pole with powerful magnets for secure dipper arm attachment
Additional clamp mount set included for pole-mounted operation
Wireless in-cab display (WRD) — no cables, swap between machines easily
Plumb Swing indication for excavator use
Blade Tilt indication for dozer and grader use
360° laser sensors with 260mm reception window
3 x accuracy settings: Fine (±5mm), Standard (±10mm), Coarse (±20mm)
Last known position indication
Large internal Ni-MH battery — up to 40hrs runtime
Supreme water & dust resistance — IP67
Compatible with any red beam rotating laser (Class 2 or Class 3)
Range up to ~200m radius with Class 3 red beam lasers

What's in the Box

MR825 machine receiver with 260mm sensor
WRD wireless in-cab display unit
800mm × 50mm OD magnetic dipper arm pole
Clamp mounts — 2 pairs (one for pole, one spare/direct mount)
Magnet mount pair
In-cab magnet mount
In-cab clamp mount
In-cab glass suction mount
240V mains charger
Heavy-duty carry case with foam inserts

Watch

Videos

Features

Key Features

A Premium Machine Receiver

360° reception & a massive 260mm sensor length. The MR825WD has ultra-bright LED height indicators, featuring Plumb Swing & Blade Tilt.

Large Rechargeable Battery

The MR825WD features a large Ni-MH rechargeable battery for up to 40 hours of continuous use. Includes mains charger for easy charging.

All The Mounting Options

The MR825WD includes a pair of both magnetic mounts and adjustable clamp mounts. Simply screw your required mounts onto the receiver and attach to your equipment.

Mount Anywhere. Read Anywhere

The wireless In-Cab Display keeps height readings right in front of you. Allows you to have your laser and receiver above the machine cabin to avoid shadowing — and swap between machines in seconds with no cables to run.

Desired Accuracy at a Button Press

The MR825WD features Blade Tilt Mode for bulldozers & graders. The LEDs display the level of the blade between left & right on the receiver's LED display or In-Cab Display.

Accurate & Consistent Cutting Depths

Excavator Mode on the MR825WD indicates if a boom arm is tilted away from or towards the machine cabin. The LEDs flash quickly when tilted away, flash slowly when tilted towards, and illuminate solid when plumb to ground.

Mount Direct to the Dipper Arm

The included 800mm × 50mm OD steel pole fastens directly to your excavator stick using ultra-strong magnets — no drilling, no welding, no permanent modifications. The rigid steel tube keeps the receiver perfectly aligned for accurate, repeatable height readings, and the additional clamp mount set attaches the receiver securely to the pole. Swap between pole-mount, direct-magnet and clamp-mount in seconds.

In the box

What's Included

1 MR825 Machine Receiver Premium Machine Receiver with Easy Height Readings, Plumb Swing, & Blade Tilt indicators.
2 Clamp Mounts Pair Mount your receiver onto 50mm round pole
3 Magnet Mounts Pair Allows for easy mounting onto excavators & earthmoving equipment.
4 240V Mains Charger Easily recharge your receiver.
5 WRD In-Cab Display Mount the In-Cab Display anywhere in your machine without the need for wiring. Perfect when visibility of your receiver is poor.
6 In-Cab Magnet Mount
7 In-Cab Clamp Mount
8 In-Cab Glass Suction Mount
9 800P Machine Receiver Pole 800m Machine Receiver pole with Magnet & Clamp Mounts.

Technical details

Full Specifications

Sensor Length	260mm Long
Sensor Coverage	360°
Compatible Lasers	Red Class 2 or Class 3 Rotating Lasers
Accuracy Settings	+/- 5mm, +/- 10mm, +/- 20mm
Maximum Range	~200m Radius with Class 3 Red Beam Lasers
Water & Dust Resistance	IP67
Battery Type	Internal Ni-MH Rechargeable Battery
Warranty	2 Year

Industries

Built for Professionals

Earthmoving

Machine receivers help you achieve maximum efficiency while earthmoving. Get height readings from the comfort of your cabin — no more jumping out to check your staff.

Learn more →

After Purchase

Care & Support

Warranty

2 Year Warranty

A genuine "No-BS" warranty - no signup or regular calibration/service required to get the full term.

Care Instructions

Machine Mount Receivers are pretty easy to look after! The best advice we can give is to make sure your receiver is fully dry before storing it back in the case for an extended period of time. Water vapours can ingress inside places where water itself can't, which can cause condensation to build inside the unit. Avoid getting the magnets stuck together unless you like a challenge!

Service & Repair

Machine Receivers don't require calibration. If you need any service/repairs done you can contact us for options. Learn about our service →
