MR710D - RedBack Machine Mounted Receiver with In-Cab Display - Clamp & Magnet Mount
$1,649.00 inc. GST
โ Out of stock
Increases Earthmoving Effiency - no more getting in & out of the cabin!
Convenient Height Readings via In-Cab Display
Quick-attach clamp & magnet mounts included
Large Internal Battery for everyday use
IP65 rated suitable for harsh conditions

| 5 star | 100 | 100% |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
Sorry, no reviews match your current selections
MR710D - RedBack Machine Mounted Receiver with In-Cab Display - Clamp & Magnet Mount
| Weight | 7.1 kg |
|---|---|
| Dimensions | 40 × 51 × 29 cm |
Brochure PDF can be viewed, printed and downloaded HERE
Instruction PDF can be viewed, printed and downloaded HERE
Free Delivery Australia-wide!
Australian Support + Advice
Laser Level Specialists
Lasers built for Repairs
Lasers built for Calibration
Free Delivery Australia-wide!
Australian Support + Advice
Laser Level Specialists
Lasers built for Repairs
Lasers built for Calibration
Operating the MR710/D
RedBackLasers 541 views
Machine Receiver Series: MR710/D
RedBackLasers 260 views
Using a machine laser receiver with excavators and other earthmoving equipment with RedBack Lasers
RedBackLasers 11.5K views
How to Select the right Machine Receiver from RedBack Lasers
RedBackLasers 8.6K views

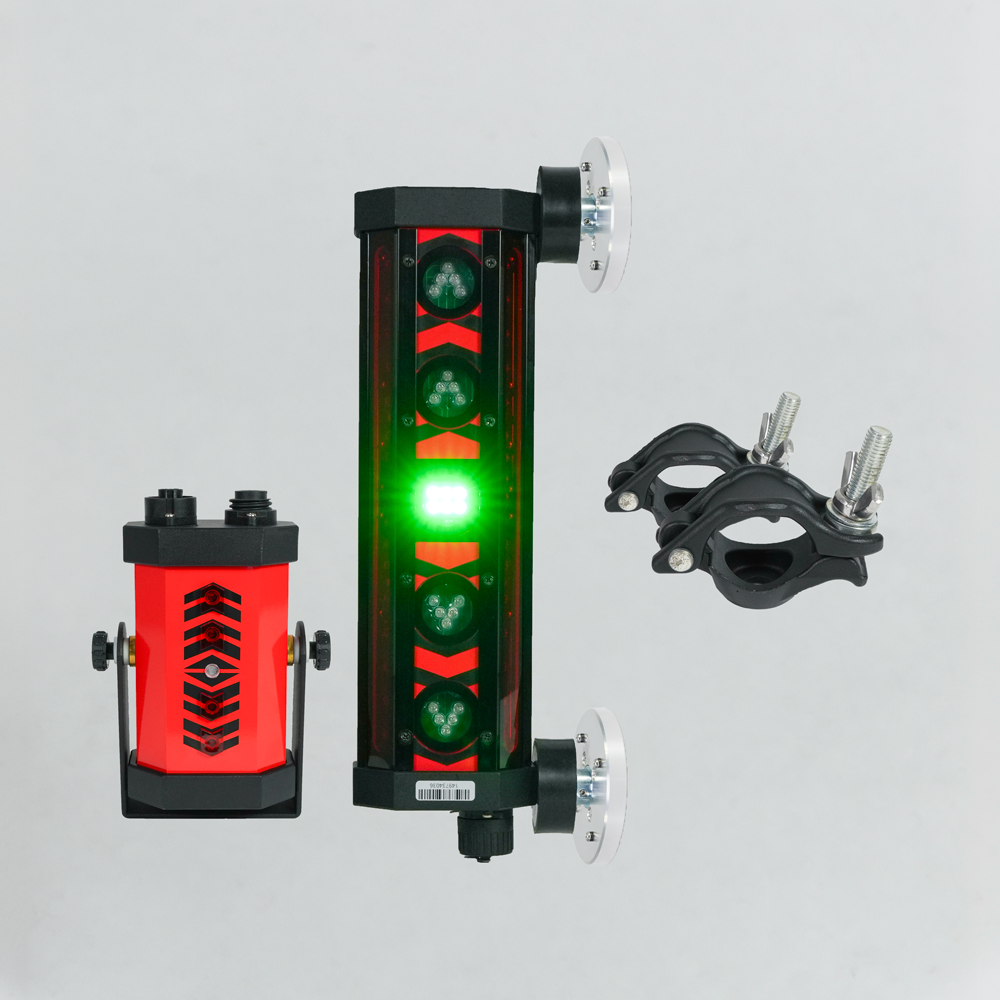

RedBack Lasers’ MR710D machine-mounted receiver comes complete with both clamp and magnet mounts. The MR710D comes with a wired In-Cab Display (10m cable) to give you height indications conveniently positioned in front of the operator. Machine Receivers increase your on-site efficiency by allowing the operator to get height readings from the cabin of their machine, rather than needing to check with a staff.ย The MR710D is designed to work with most red rotating laser levels.
The clamp mount allows you to firmly attach the receiver onto a machine with rod structure (not supplied) fixed to a boom or blade/bucket, giving extremely accurate height readings of these implements.
The magnet mount is primarily designed to attach to the side of an Excavator dipper arm, giving height readings of your bucket, although it can also be attached to square tubing for blade use, or to the side of a skid steer/loader.
The In-Cab Display helps in situations where visibility of the Machine Receiver would be poor, for example when the Receiver is mounted high in the air on a pole, or when using Implements like Backhoes or Land Planes on the back of your Tractor
The MR710 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window.ย When the laser moves out of this reception window the receiver will flash slowly indicating the last height the laser was detected.
On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser.ย These display both above and below level as well as on level. ย The RedBack Lasers MR710 has an internal Ni-mh battery that can be charged with the included mains charging unit.ย It can also operate on a 12 or 24V system with the included cable with crocodile clips. ย Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.
The MR710 is the ideal machine receiver for use over multiple machines and implements due to having both magnets and clamps, making it an extremely versatile unit. Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines.ย This is a great receiver for Excavators, Box Blade, Grade Blade, Dozer, Bobcat, Skid Steer and more. Machine Receivers increase your on-site efficiency by allowing the operator to get height readings from the cabin of their machine, rather than needing to check with a staff.
Also available is a Magnetic Mounted unit MR706 HERE
Also available is a Clamp Mounted unit MR708 HERE
RedBack Lasers Service Department can also service and calibrate the following brands when possible (not all laser levels are built for recalibration - so check with us first); Topcon, Leica, Rugby, Geo Fennel, Spectra, Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, Spectra Precision HV302, CPI, Datum, Fukuda and more. Call us on 1800 769 858 or have a look at our Service & Calibration Page for further info.
If you're looking for a handy grade conversion tool for calculating slopes & grades, check out this page on Laser Level Review.
Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.
