RedBack Lasers EL614GM Grade / Slope Rotating Laser with Auto Grade.

Video Guides followed by Descriptions and Specifications

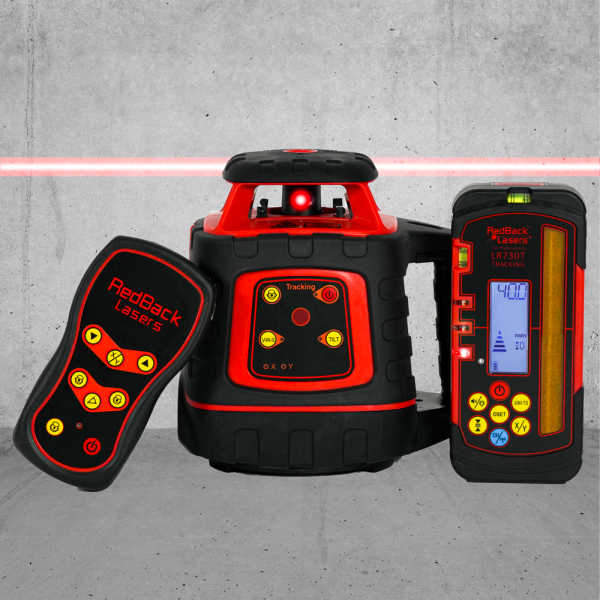

RedBack EL614GM Rotating Grade / Slope Laser with Auto Grade Match Laser





Description of the EL614GM Auto Grade Match Laser

The EL614GM is a fully automatic electronic self levelling rotating laser in the horizontal plane with auto grade match.  Firstly place laser level on a tripod (optional extra) and then press the power button, in seconds it self levels and begins to rotate.  The EL614GM is extremely tough with steel internal chassis and heavy duty rubberised casing it can handle use day in, day out on the toughest of job sites.

This model features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating and indicate something has moved.  It also features V W S (vibration and wind setting) when selected the EL614GM will continue to spin even when making minor adjustments due to vibrations.  Without V W S selected in windy conditions the laser will stop rotating each time to make those minor adjustments, in other words, you can keep working.

The EL614GM rotating laser with auto grade match comes with a remote control that allows the setting of a manual single axis grade with just one person.  Probably the RedBack EL614GM most outstanding feature is Automatic Grade Match Tracking.  This feature allows the user to set the LR720T millimetre tracking receiver at a particular height.  The laser will then slope its beam on the selected axis to find this height and lock to this grade.  This, therefore, makes the setting grades extremely quick and is especially useful where you want to match to a particular slope on site.


The EL614GM comes complete with the Heavy Duty LR720T electronic receiver with millimeter Display & tracking facility, dual LCD front and back.  The EL614GM also comes with rechargeable Ni-mh batteries and charger, however, you can also use standard “C” batteries with the included “C” cell battery caddie.  You can even power the laser off the charger/power supply, therefore, making the laser always available to use.

This laser model is ideal for concreters who need a tough, reliable and accurate laser.  The EL614GM is also ideal for all general building and site levelling applications.  The Automatic Grade Match feature makes this laser also extremely useful in Plumbing and Earthmoving applications.  The millimeter Display receiver, which comes the EL614GM model has a large reception window (110mm) and this,  together with mm from level display makes rough levelling so much quicker.

The RedBack EL614GM comes with a 5 Year manufacturers warranty, thus, providing peace of mind.


  • Electronic Self Levelling
  • Horizontal Rotation for Levelling
  • Single Grade Setting with Remote
  • Automatic Grade Match
  • LR720T Millimeter Tracking Receiver
  • Easy to Set Up and Use
  • TILT and V-W-S Vibration modes
  • Internal Steel Safety Cage
  • Direct Drive Rotation
  • INCLUDES Ni-mh Rechargeable Battery & Charger also Std “C” cell Battery Operation
  • Heavy Duty Receiver
  • 5 Year RedBack Warranty
All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.


  • Range – 500m diameter using LR720 receiver
  • Accuracy – +/- 1.5mm at 20m
  • Laser Class – class 2 <1mW 635-670nm red
  • Water Dust Resistance – IP55
Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.


RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS,

Weight6 kg
Dimensions37 × 45 × 25 cm


Range Brochure PDF can be viewed, printed and downloaded HERE


Base Instruction PDF can be viewed, printed and downloaded HERE

Additional Grade Match and Millimeter Receiver instruction sheet HERE
