Original price was: $3,248.00.$3,098.95Current price is: $3,098.95. inc. GST
Laser Earthmoving Bundle to increase on-site efficencyNo more getting in & out of the cabin to check heights!1-person single grades via Auto Grade Match or Slope RemoteFlexible Receiver Mounting via Magnets or ClampsConvenient wired In-Cabin Display

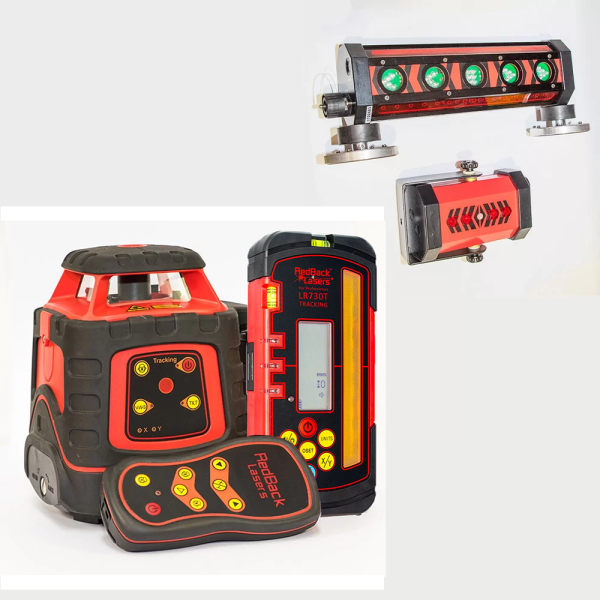

EL614GM & MR710D Combo - Electronic Auto Grade Match Laser with Magnet & Clamp Mount Machine Receiver - Earthmoving Combo
| Weight | 37 kg |
|---|---|
| Dimensions | 45 × 37 × 25 cm |
All orders from RedBack Lasers are delivered free anywhere in Australia - this includes Post Box's & PMBs.
We utilize multiple different couriers including Australia Post, StarTrack, Aramex. We do this to ensure the best possible delivery service for your product, location, amongst other factors. If you have a preference, get in touch and we will try to accomodate you as best we can.
Express Freight is available at an additional charge. This is calculated at checkout once your delivery information has been put in. We can also accomodate Air Freight to certain locations, which we can quote over the phone.
We generally have same or next day dispatch depending on when you order – although this is not guaranteed.
If you need a product in a hurry – it is often best to call us to see what we can organize.
This Laser & Machine Receiver combination is ideal for general site levelling and grade setting applications when using a small machine or excavator.
This combo includes the RedBack EL614GM electronic levelling laser with auto grade tracking functionality. The Laser level includes a millimetre display tracking receiver for this function plus rechargeable batteries and remote control. The RedBack MR710D is a self-contained receiver with an inbuilt rechargeable battery. The receiver mounts onto a machine with extremely strong magnets or clamps for poles, which comes complete with In-Cabin Display. This is a great package for Excavators, Backhoes and more.
RedBack EL614GM Rotating Grade / Slope Laser with Auto Grade Match Laser
RedBack Lasers EL614 range of Electronic Self-Levelling Rotating Laser Levels.
Tilt Function on RedBack Lasers EL614 & EGL624 Range
VWS Vibration Wind Sensor Feature RedBack Lasers EL & EGL Models
Setting an Automatic Grade with RedBack Lasers Grade Match Tracking Lasers
The EL614GM is a fully automatic electronic self-levelling rotating laser in the horizontal plane with an auto-grade match. Firstly place laser level on a tripod (optional extra) and then press the power button, it levels and begins to rotate. The EL614GM is extremely tough with a steel internal chassis and heavy-duty rubberised casing it can handle use day in, day out on the toughest of job sites.
This model features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating and indicate something has moved. It also features V W S (vibration and wind setting) when selected the EL614GM will continue to spin even when making minor adjustments due to vibrations. Without V W S selected in windy conditions, the laser will stop rotating each time to make those minor adjustments, in other words, you can keep working.
The EL614GM rotating laser with auto-grade match comes with a remote control that allows the setting of a manual single-axis grade with just one person. Probably the RedBack EL614GM’s most outstanding feature is Automatic Grade Match Tracking. This feature allows the user to set the LR720T millimetre tracking receiver at a particular height. The laser will then slope its beam on the selected axis to find this height and lock to this grade. This, therefore, makes the setting grades extremely quick and is especially useful where you want to match to a particular slope on-site.
The EL614GM comes complete with the Heavy Duty LR720T electronic receiver with millimetre Display & tracking facility, dual LCD front and back. The EL614GM also comes with rechargeable Ni-MH batteries and a charger, however, you can also use standard “C” batteries with the included “C” cell battery caddie. You can even power the laser off the charger/power supply, therefore, making the laser always available to use.
This laser model is ideal for concreters who need a tough, reliable and accurate laser. The EL614GM is also ideal for all general building and site levelling applications. The Automatic Grade Match feature makes this laser also extremely useful in Plumbing and Earthmoving applications. The millimeter Display receiver, which comes from the EL614GM model has a large reception window (110mm) and this, together with mm from level display makes rough levelling so much quicker.
The RedBack EL614GM comes with a 5 Year manufacturer’s warranty, thus, providing peace of mind.
RedBack Lasers MR710D machine receiver with magnetic mount and in-cab repeater unit. The MR710D is designed to work with most red rotating laser levels. It features magnetic mounting on a machine/excavator, as well as clamps for easy attachment to poles for blades. The MR710D features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window. When the laser moves out of this reception window the receiver will flash slowly indicating the laser height the laser was last detected at. On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser. This indicates above and below level as well as on level.
The RedBack Lasers MR710D has an internal Ni-mh battery that can be charged with the included mains charging unit. The receiver can also operate on a 12 or 24V system with the included cable with crocodile clips. Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.
The RedBack Lasers MR710D pack comes also with an in-cab repeater unit and cables. The in-cab repeater unit duplicates the display given on the receiver itself and so when placing the repeater unit inside the cab the height indication lights are easier to see. The MR710D can be used without the in-cab repeater if desired.
Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines. This is a great receiver for Excavators, Backhoes, Skid Steers, Grader Blades and more.
Using a machine laser receiver with excavators and other earthmoving equipment with RedBack Lasers
How to Select the right Machine Receiver from RedBack Lasers
RedBack Lasers Service Department can also service and calibrate the following brands when possible (not all laser levels are built for recalibration - so check with us first); Topcon, Leica, Rugby, Geo Fennel, Spectra, Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, Spectra Precision HV302, CPI, Datum, Fukuda and more. Call us on 1800 769 858 or have a look at our Service & Calibration Page for further info.
If you're looking for a handy grade conversion tool for calculating slopes & grades, check out this page on Laser Level Review.
RedBack Lasers’ EL614GM Electronic Auto-Levelling Grade Laser & MR710D Magnet & Clamp Mount Machine Receiver with In-Cab Display – Earthmoving Combo
Ideal for Single Grade Earthmoving & use on multiple machines. Versatile yet robust Earthmoving Package.
