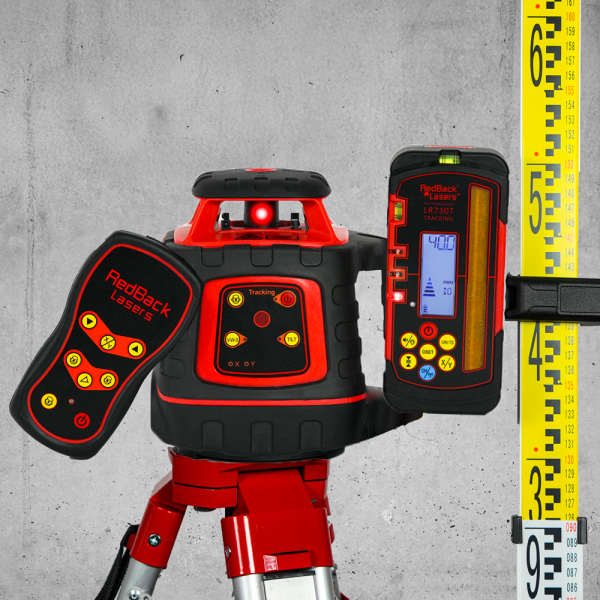

EL614GMP – RedBack Rotating Auto Grade Match Laser Level with mm tracking Receiver and Tripod and Staff
RedBack Lasers EL614GMP is an electronic auto levelling rotating laser with grade cp,plete with heavy duty Tripod and 2.4m Staff. Ideal for concreting and general site levelling. Included in this special package is the LR720 millimeter display receiver with a dual sided display staff clamp, rechargeable batteries and charger and hard shell carry case. More details & Videos below.
RedBack Lasers EL614GMP Auto Grade Match Tracking Laser Package with Tripod & Staff.
Grade Match Tracking Laser Package by RedBack Lasers Electronic Self Levelling and Millimeter Display Tracking Receiver.
Video Guides followed by Descriptions and Specifications
EL614GM tracks to the height of the receiver and so locks on to provide auto grade match. (Drag slider above to see animation)
The EL614GM is a fully automatic electronic self levelling rotating laser with auto grade match. Simply place laser level on a tripod (optional extra) and press the power button, in seconds it self levels and begins to rotate. The EL614GM is extremely tough with steel internal chassis and heavy duty rubberised casing it can handle use day in, day out on the toughest of job sites.
This model features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating and indicate something has moved. It also features V W S (vibration and wind setting) when selected the EL614GM will continue to spin even when making minor adjustments due to vibrations. Without V W S selected in windy conditions the laser will stop rotating each time to make those minor adjustments.
The EL614GM rotating laser with auto grade match comes with a remote control that allows the setting of a manual single axis grade with just one person.
Auto Grade Match Tracking
Most importantly the EL614GM features Automatic Grade Match. This feature allows the user to set the LR720T millimeter tracking receiver at a particular height. The laser will then slope its beam on the selected axis to find this height and lock to this grade. This, therefore, makes setting grades extremely quick and is especially useful where you want to match to a particular slope on site.
The EL614GM comes complete with the Heavy Duty LR720T electronic receiver with millimeter Display & tracking facility, dual LCD front and back. The EL614GM also comes with rechargeable batteries and charger, however, it can also be used with standard “C” batteries or even be powered of the charger/power supply.
This laser model is especially ideal for concreters who need a tough, reliable and accurate laser, also ideal for all general site levelling applications. The millimeter Display receiver, which comes the EL614GM model has a large reception window together with mm from level makes these jobs that bit quicker. The Automatic Grade Match feature makes this laser also extremely useful in Plumbing and Earthmoving applications.
The RedBack EL614GM comes with a 5 Year manufacturers warranty.
The EL614GMP Package also includes heavy duty tripod and 2.4m Staff.
- Electronic Self Levelling
- Horizontal Rotation for Levelling
- Single Grade Setting with Remote
- Automatic Grade Match
- LR720T Millimeter Tracking Receiver
- Easy to Set Up and Use
- TILT and V-W-S Vibration modes
- Internal Steel Safety Cage
- Direct Drive Rotation
- INCLUDES Ni-mh Rechargeable Battery & Charger also Std “C” cell Battery Operation
- Heavy Duty Receiver
- 5 Year RedBack Warranty
EL614GMP includes Heavy Duty Tripod and 2.4m Staff Bundle (240HDF)All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.
- Range – 500m diameter using LR720 receiver
- Accuracy – +/- 1.5mm at 20m
- Laser Class – class 2 <1mW 635-670nm red
- Water Dust Resistance – IP55
RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS,
|Dimensions||103 × 20 × 38 cm|
Range Brochure PDF can be viewed, printed and downloaded HERE
Base Instruction PDF can be viewed, printed and downloaded HERE
Additional Grade Match and Millimeter Receiver instruction sheet HERE
