EGL624GMP – RedBack Rotating Laser Level with Auto Grade Match, MM Tracking Receiver, Tripod and Staff
RedBack Lasers EGL624GM Rotating Laser with millimeter receiver features, electronic auto levelling rotating laser level with Dual Auto Grade Match and Horizontal and Vertical rotation modes. Included is the LR720T millimeter display tracking receiver with a dual sided display staff clamp, rechargeable batteries and charger and hard shell carry case. This Package EGL624GMP also includes Heavy Duty Tripod and 2.4m Staff bundle (240HDF) Buy Now. More details and videos below.

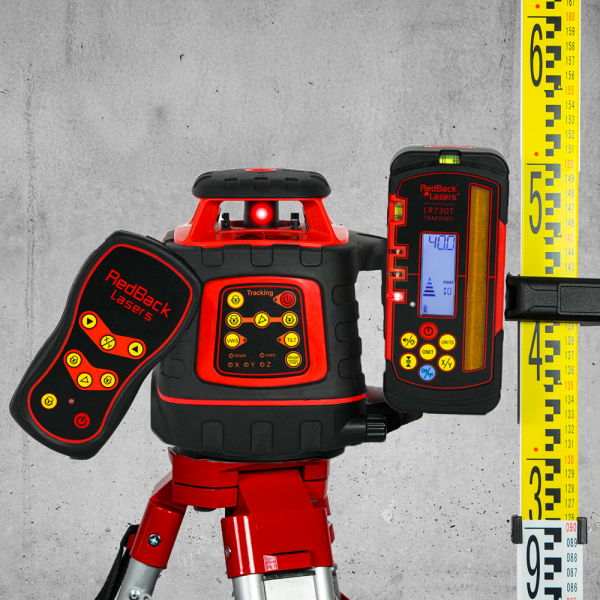

RedBack Lasers EGL624GMP Grade Tracking Rotating Laser Package with Millimeter Receiver, Tripod & Staff
Auto Grade Tracking rotating laser package included millimeter display tracking receiver, Rechargeable battery, Tripod and Staff. Perfect Construction Contractors Rotating Laser Level, built tough.
Video Guides followed by Descriptions and Specifications
EGL624GM tracks to the height of the receiver and locks on to provide auto grade match. (Drag slider above to see animation)
The EGL624GM is a fully automatic electronic levelling rotating laser with easy to use controls. Simply place laser level on a tripod (optional extra) and press the power button, in seconds it self levels and begins to rotate. The EGL624GM is extremely tough with steel internal chassis and heavy duty rubberised casing it can handle use day in, day out on the toughest of job sites.
The EGL624GM Is also electronically self levelling on its side for vertical rotation and includes a dot laser at 90 degrees for site layout. One of its main features is it has dual manual grade match so you can set a grade on either or both axis using the remote control, so single person grade setting. In addition the GM model features automatic grade match and tracking LR720T receiver. This feature allows the user to set the LR720T millimeter tracking receiver at a particular height. The laser will then slope its beam on the selected axis to find this height and lock to this grade. This makes setting grades extremely quickly and is especially useful where you want to match to a particular slope on site. This tracking feature can also be used with the laser on its side for vertical alignment. Making it an awesome fencing laser, see video on fence alignment above.
The EGL624GM also features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating and indicate something has moved. Another features is V W S (vibration and wind setting) when selected the EGL624GM will continue to spin even when making minor adjustments due to vibrations, without it selected it will stop rotating each time to make those minor adjustments. The EGL624GM can also be use for interior installation with Scan line modes to intensify the visible brightness for both horizontal and vertical operation.
Grade Tracking Rotating Laser Package
The EGL624GM comes complete with the Heavy Duty LR720T electronic tracking receiver with millimeter Display, dual LCD front and back. This laser level also comes with rechargeable batteries and charger, but, can also be used with standard “C” batteries or even be powered of the charger/power supply. Also included is a remote control. The EGL624GMP package includes heavy duty tripod and 2.4m staff.
The EGL624GM electronic levelling rotating laser is ideal for contractors, concreters, plumbers, general builders and site levelling as well as internal installation. The LR720T Millimeter receiver makes levelling that bit easier,
The RedBack EGL624GM comes with a 5 Year manufacturers warranty.
- Electronic Self Levelling
- Horizontal Rotation for Levelling
- Vertical Rotation for Alignment & Layout
- LR720T Millimeter Tracking Receiver
- Dual Grade Setting
- Easy to Set Up and Use
- TILT and V-W-S Vibration modes
- Internal Steel Safety Cage
- Direct Drive Rotation
- INCLUDES Ni-mh Rechargeable Battery & Charger also Std “C” cell Battery Operation
- Remote Control
- 5 Year RedBack Warranty
EGL624GMP includes Heavy Duty Tripod and 2.4m Staff Bundle (240HDF)All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.
- Range – 500m diameter using LR720 receiver
- Accuracy – +/- 1.5mm at 20m
- Laser Class – class 2 <1mW 635-670nm red
- Water Dust Resistance – IP55
RedBack Lasers service department also service and calibrate the following brands when possible; Topcon, Leica, Rugby, Geo Fennel, Spectra, Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, Spectra Precision HV302
|Dimensions||103 × 20 × 38 cm|
Range Brochure PDF can be viewed, printed and downloaded HERE
Base Instruction PDF can be viewed, printed and downloaded HERE
Additional Grade Match and Millimeter Receiver instruction sheet HERE
