Rotating Laser with Electronic Receiver Tripod & Staff

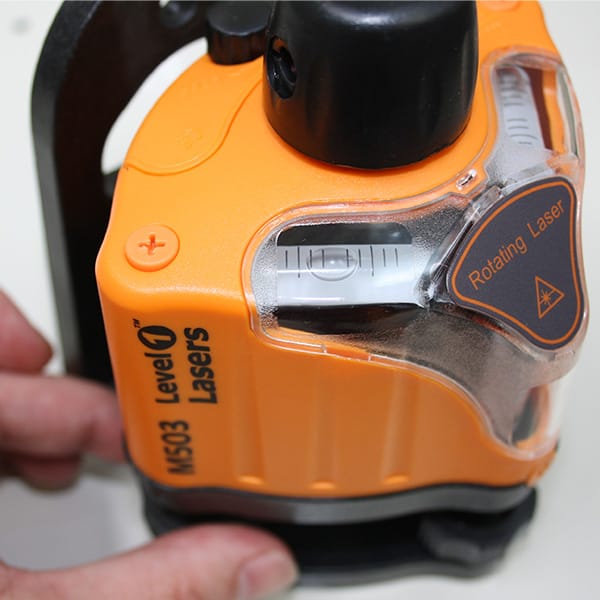

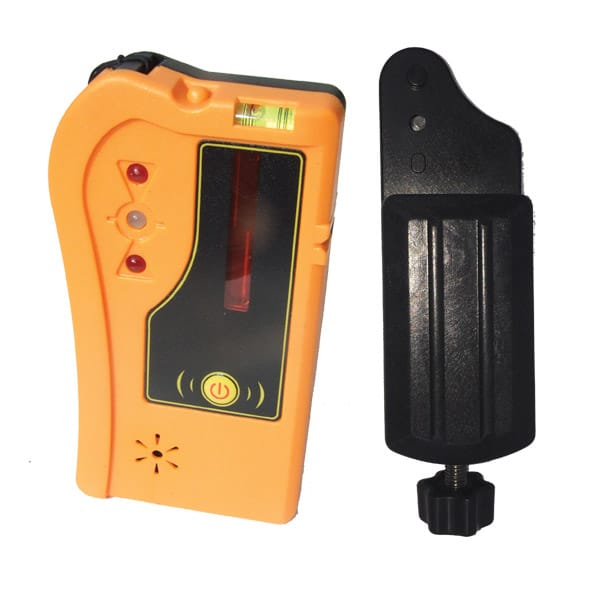

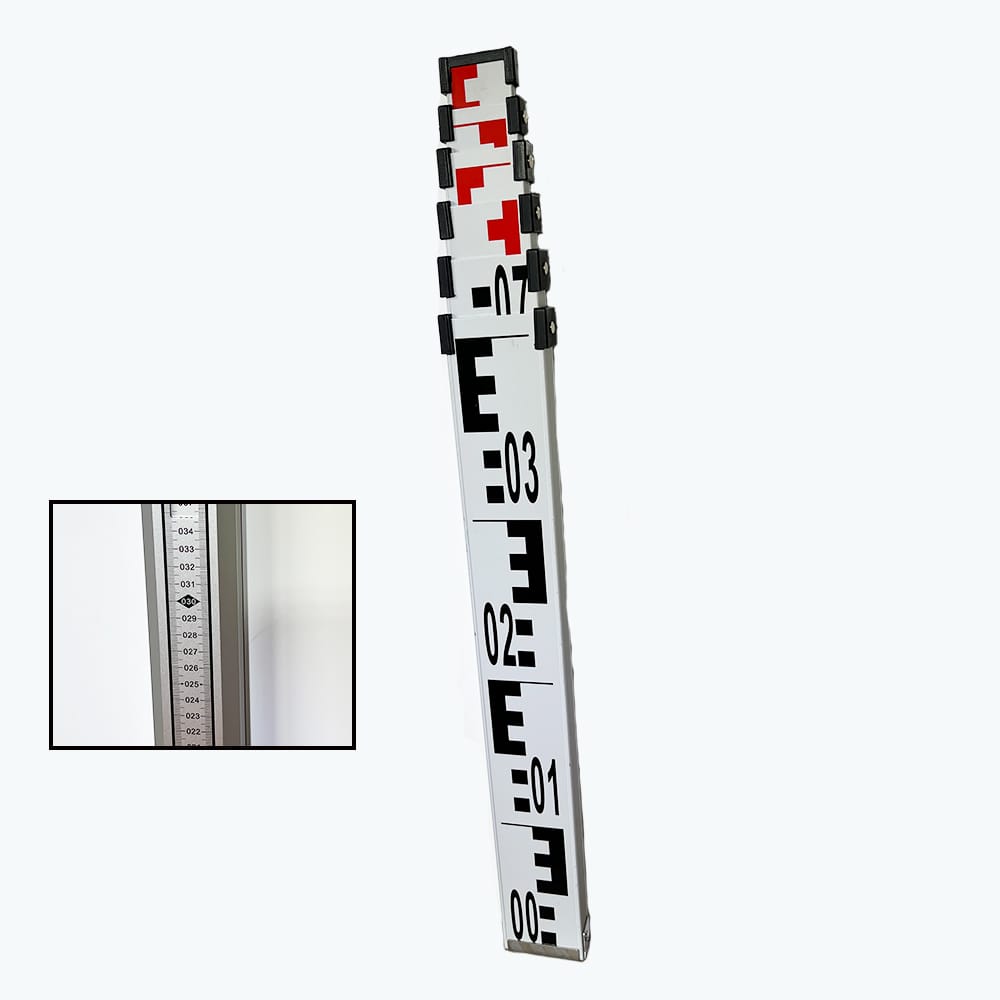

The M503 by Level1 is easy to use, compact manual levelling rotating laser with the receiver. Simply place the rotary laser on the supplied tripod, level the vials and you are off to work. The M503 can also operate on its side for vertical rotation.  The M50322S Kit includes an LR700 electronic Receiver with an LED display.  This is essential for using the laser level outside, it sees the laser when you cannot.  The M50322S kit also includes a small elevating tripod and 2,4m 5 section staff (note staff does not fit into the carrying case).   The staff supplied is the 240CMMINI which is super compact 2.4m staff ideal for this type of laser kit.

Other features of the M50322 laser with receiver kit include; a built-in wall/side mount bracket, variable rotation speed settings, small tripod and standard “AA” batteries all in a hard shell carry case.

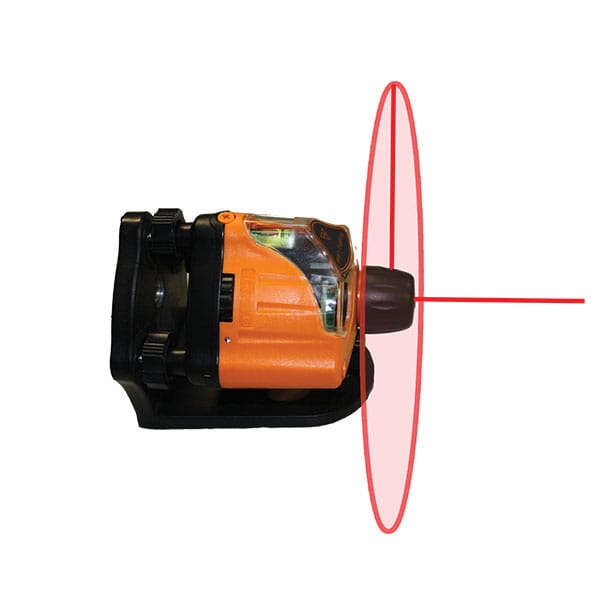

The M503 is ideal for all general levelling inside and outside the home for all DIY type applications, decking, renovations etc.  A cost-effective alternative to renting a laser when you need to do jobs in and around the home.  Vertical mode allows for vertical alignment jobs.  In addition, a dot laser at 90 degrees to the rotating plane allows for basic site squaring.

Rotating Laser with Receiver, Tripod and Staff Summary

DOWNLOAD Instruction Book HERE

The Level1 M503 comes with a 12 month manufacturers warranty.

  • Manual Levelling Rotary Laser
  • Horizontal Rotation for Levelling
  • Vertical Rotation for Alignment
  • Std Battery Operation
  • Electronic Receiver and Clamp
  • 12 Month Level1 Warranty

Videos

Specifications:

  • Range – 240m diameter using LR700 receiver (up to 20m Visibly indoors (light dependent)
  • Accuracy – +/- 6mm at 20m
  • Laser Class – class 2 <1mW 635-670nm
  • Water Dust Resistance – IP32
Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.
Weight4.2 kg
Dimensions36 × 73 × 14 cm

DOWNLOADS

Instruction PDF can be viewed, printed and downloaded HERE
