The RedBack Rotating Laser Level Kit 509KIT is an easy to use, compact but solid auto-levelling rotating laser level. First place the laser on the tripod, second unlock the pendulum and you are ready to work in seconds with one of the fastest self-levelling rotating lasers available. The 509 can also operate on its side for vertical rotation. Simply place the laser on its side mount either on the floor or tripod, DO NOT unlock the pendulum and use the manual levelling bubble vial to level it off. Power up the laser and it will start rotating — note the laser level is manually levelling in vertical mode. The 509KIT is powered by 4x "AA" standard Alkaline batteries.
As an option, the 509KIT upgrade pack can be purchased which includes rechargeable Ni-mh batteries and charger.
Other features of the 509KIT include an integrated wall/side mount bracket, 3 rotation speed settings and rubberised housing.

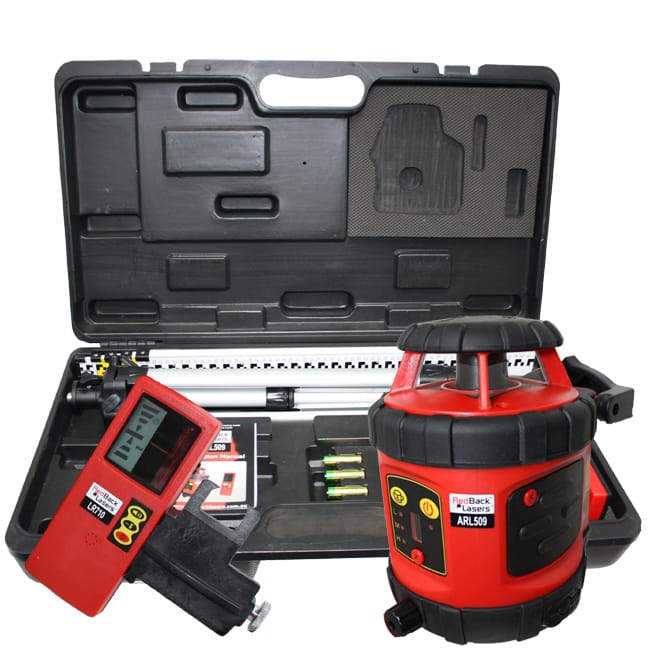

The Rotary Laser 509KIT comes complete with an LR710 LCD electronic receiver, small elevating tripod, 2.4m telescopic staff and standard "AA" batteries, all in a hard shell carry case.
The 509KIT is ideal for all general construction and site levelling applications and can be used both outdoors with the receiver and indoors visibly. Vertical mode allows for vertical alignment jobs and a dot laser at 90 degrees to the rotating plane allows for basic site squaring. This kit is ideal for owner-builders, general construction and trades.

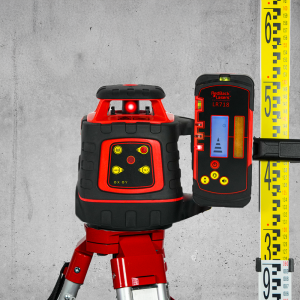

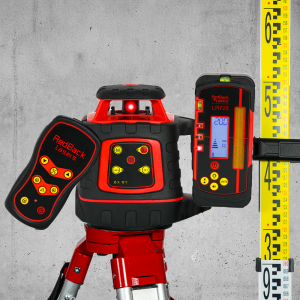

This kit was designed so that everything is in one small case, ready to get to work on those odd occasions when you need a laser on site. However, if you need a laser for more day-in day-out use then perhaps look at the RedBack Lasers EL614P — electronic self-levelling with heavy duty tripod, staff and Ni-mh batteries included.
The RedBack Lasers Rotary Laser 509KIT comes with a 2 Year manufacturers warranty.
The 509KIT Upgrade pack consisting of Ni-mh rechargeable batteries and RB4 charger is also available separately.
Watch
Accessories
Features
Convenient rotating laser package — everything you need enclosed in one hard carry case, ready to grab and go on site.
Auto-Levelling Horizontal with Manual Levelling Vertical Rotation for alignment jobs — handles most general levelling tasks.
Unlock the pendulum and it levels in seconds — one of the fastest self-levelling rotating lasers available.
Convenient Rotating Laser Package - Everything in one carry case!

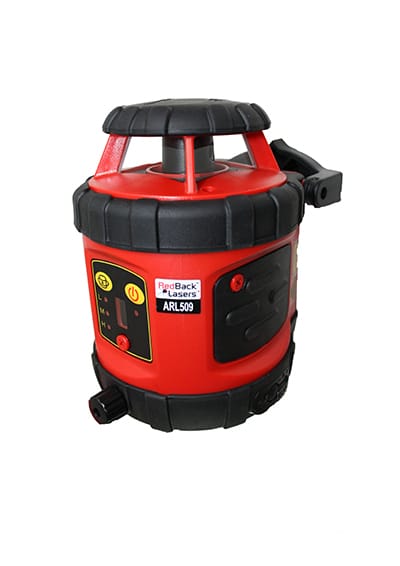

ARL509 Auto-Levelling Rotating Laser with Receiver
Auto-Levelling Horizontal, Manual Levelling Vertical Rotation
Ultra-fast pendulum levelling
Mini Tripod & Telescopic Staff enclosed inside Hard Carry Case with Laser & Receiver
In the box
Technical details
| Range | 120m Radius, 240m Diameter |
|---|---|
| Accuracy | +/-3mm @ 20m |
| Laser Class | Red Class 2 <1mW 635-670nm |
| Battery Type | AA Batteries - Optional Rechargeable Battery Available |
| Water Dust Resistance | IP54 |
| Warranty | 2 Year |
| Tripod Maximum Height | ~1.5m |
| Staff Maximum Height | ~2.4m |
