EL614GM & MR710 – Electronic Grade Laser & Machine Receiver Earthmoving Combo
Original price was: $3,048.00.$2,898.95Current price is: $2,898.95. inc. GST
No more jumping in and out of the cabin to check heights!- Easy-to-use Single Grade Laser with Machine Mounted Receiver for quick height guidance

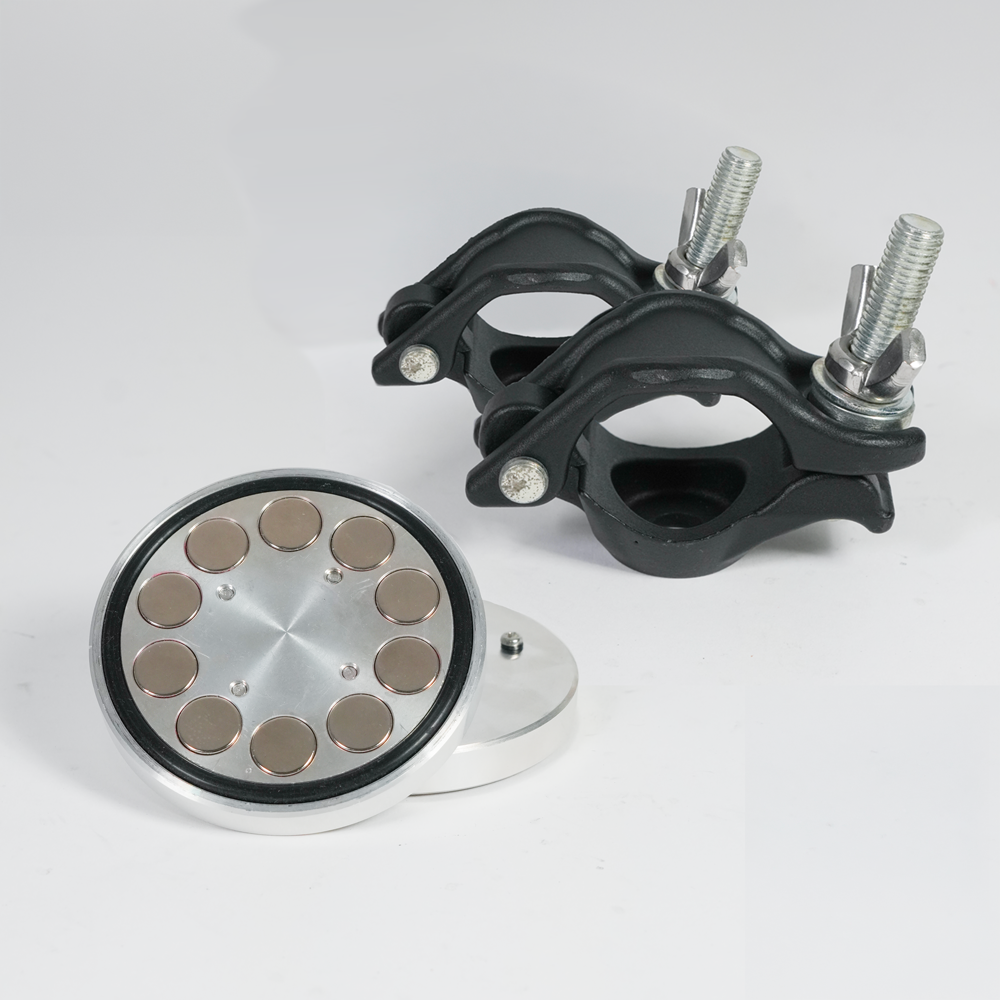

- Versatile Clamp & Magnet Mounting Options for Receiver
- 1-button Auto Grade Match or slope remote for 1-person Grade Setting
Secure Checkout
Ships from Melbourne. 1-2 Day Dispatch
Finance Options Available 🔽
EL614GM & MR710 - Electronic Grade Laser & Machine Receiver Earthmoving Combo
| Weight | 37 kg |
|---|---|
| Dimensions | 45 × 37 × 25 cm |
Features / Specifications
Laser Features
- Electronic Self Levelling
- Horizontal Rotation for Levelling
- Single Grade Setting with Remote
- Automatic Grade Match
- LR720T Millimeter Tracking Receiver
- Easy to Set Up and Use
- TILT and V-W-S Vibration modes
- Internal Steel Safety Cage
- Direct Drive Rotation
- INCLUDES Ni-mh Rechargeable Battery & Charger also Std “C” cell Battery Operation
- Heavy Duty Receiver
- 5 Year RedBack Warranty
Laser Specifications
- Range – 500m diameter using LR720 receiver
- Accuracy – +/- 1.5mm at 20m
- Laser Class – class 2 <1mW 635-670nm red
- Water Dust Resistance – IP55
Receiver Features
- 360 Degree Sensors for all-round reception
- Large 250mm Reception Window
- Laser Received Height Flash Indicator
- Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
- IP66 water and dust-tight
- Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
- Operates with Red Beam Rotating Lasers.
- Two Year Warranty
All orders from RedBack Lasers are delivered free anywhere in Australia - this includes Post Box's & PMBs.
We utilize multiple different couriers including Australia Post, StarTrack, Aramex. We do this to ensure the best possible delivery service for your product, location, amongst other factors. If you have a preference, get in touch and we will try to accomodate you as best we can.
Express Freight is available at an additional charge. This is calculated at checkout once your delivery information has been put in. We can also accomodate Air Freight to certain locations, which we can quote over the phone.
We generally have same or next day dispatch depending on when you order – although this is not guaranteed.
If you need a product in a hurry – it is often best to call us to see what we can organize.
Like the look of this product?
Give it a go - and if it doesn't live up to you needs within the first 30 days, send it back to us for a refund or exchange!Note additional fees may be charged to cover freight costs.
Electronic Grade Laser & Machine Receiver Earthmoving Combo
This Laser & Machine Receiver combination is ideal for general site levelling and grade setting applications when using a small machine or excavator.
This combo includes the RedBack EL614GM electronic levelling laser with auto grade tracking functionality. The Laser level includes a millimetre display tracking receiver for this function plus rechargeable batteries and remote control. The RedBack MR706 is a self-contained receiver with an inbuilt rechargeable battery. The receiver mounts onto a machine with extremely strong magnets with anti-slip feet. This is a great package for Excavators, Backhoes and more.
RedBack EL614GM Rotating Grade / Slope Laser with Auto Grade Match Laser
RedBack Lasers EL614 range of Electronic Self-Levelling Rotating Laser Levels.
RedBack Lasers EL614 range of Electronic Self-Levelling Rotating Laser Levels.
Tilt Function on RedBack Lasers EL614 & EGL624 Range
VWS Vibration Wind Sensor Feature RedBack Lasers EL & EGL Models
Setting an Automatic Grade with RedBack Lasers Grade Match Tracking Lasers
RedBack Lasers EL614 range of Electronic Self-Levelling Rotating Laser Levels.
RedBack Lasers EL614 range of Electronic Self-Levelling Rotating Laser Levels.
Tilt Function on RedBack Lasers EL614 & EGL624 Range
VWS Vibration Wind Sensor Feature RedBack Lasers EL & EGL Models
Setting an Automatic Grade with RedBack Lasers Grade Match Tracking Lasers
Description of the EL614GM Auto Grade Match Laser
The EL614GM is a fully automatic electronic self-levelling rotating laser in the horizontal plane with an auto-grade match. Firstly place laser level on a tripod (optional extra) and then press the power button, it levels and begins to rotate. The EL614GM is extremely tough with a steel internal chassis and heavy-duty rubberised casing it can handle use day in, day out on the toughest of job sites.
This model features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating and indicate something has moved. It also features V W S (vibration and wind setting) when selected the EL614GM will continue to spin even when making minor adjustments due to vibrations. Without V W S selected in windy conditions, the laser will stop rotating each time to make those minor adjustments, in other words, you can keep working.
The EL614GM rotating laser with auto-grade match comes with a remote control that allows the setting of a manual single-axis grade with just one person. Probably the RedBack EL614GM’s most outstanding feature is Automatic Grade Match Tracking. This feature allows the user to set the LR720T millimetre tracking receiver at a particular height. The laser will then slope its beam on the selected axis to find this height and lock to this grade. This, therefore, makes the setting grades extremely quick and is especially useful where you want to match to a particular slope on-site.
-
- EL614GM – Rechargeable Battery – Grade – Grade Tracking – Millimeter Receiver – Hard Case
-
- Built Tough Steel Chassis of the EL & EGL Series Laser
Conclusions
The EL614GM comes complete with the Heavy Duty LR720T electronic receiver with millimetre Display & tracking facility, dual LCD front and back. The EL614GM also comes with rechargeable Ni-MH batteries and a charger, however, you can also use standard “C” batteries with the included “C” cell battery caddie. You can even power the laser off the charger/power supply, therefore, making the laser always available to use.
This laser model is ideal for concreters who need a tough, reliable and accurate laser. The EL614GM is also ideal for all general building and site levelling applications. The Automatic Grade Match feature makes this laser also extremely useful in Plumbing and Earthmoving applications. The millimeter Display receiver, which comes from the EL614GM model has a large reception window (110mm) and this, together with mm from level display makes rough levelling so much quicker.
The RedBack EL614GM comes with a 5 Year manufacturer’s warranty, thus, providing peace of mind.
Features
- Electronic Self Levelling
- Horizontal Rotation for Levelling
- Single Grade Setting with Remote
- Automatic Grade Match
- LR720T Millimeter Tracking Receiver
- Easy to Set Up and Use
- TILT and V-W-S Vibration modes
- Internal Steel Safety Cage
- Direct Drive Rotation
- INCLUDES Ni-mh Rechargeable Battery & Charger also Std “C” cell Battery Operation
- Heavy Duty Receiver
- 5 Year RedBack Warranty
Specifications
- Range – 500m diameter using LR720 receiver
- Accuracy – +/- 1.5mm at 20m
- Laser Class – class 2 <1mW 635-670nm red
- Water Dust Resistance – IP55
MR710 Machine Receiver
RedBack Lasers MR710 machine mounted receiver with magnetic mount. The MR710 is designed to work with most red rotating laser levels. It features magnetic mounting for attaching to a machine dipper arm boom or blade/bucket. This is a great package for Excavators, Backhoes and more.

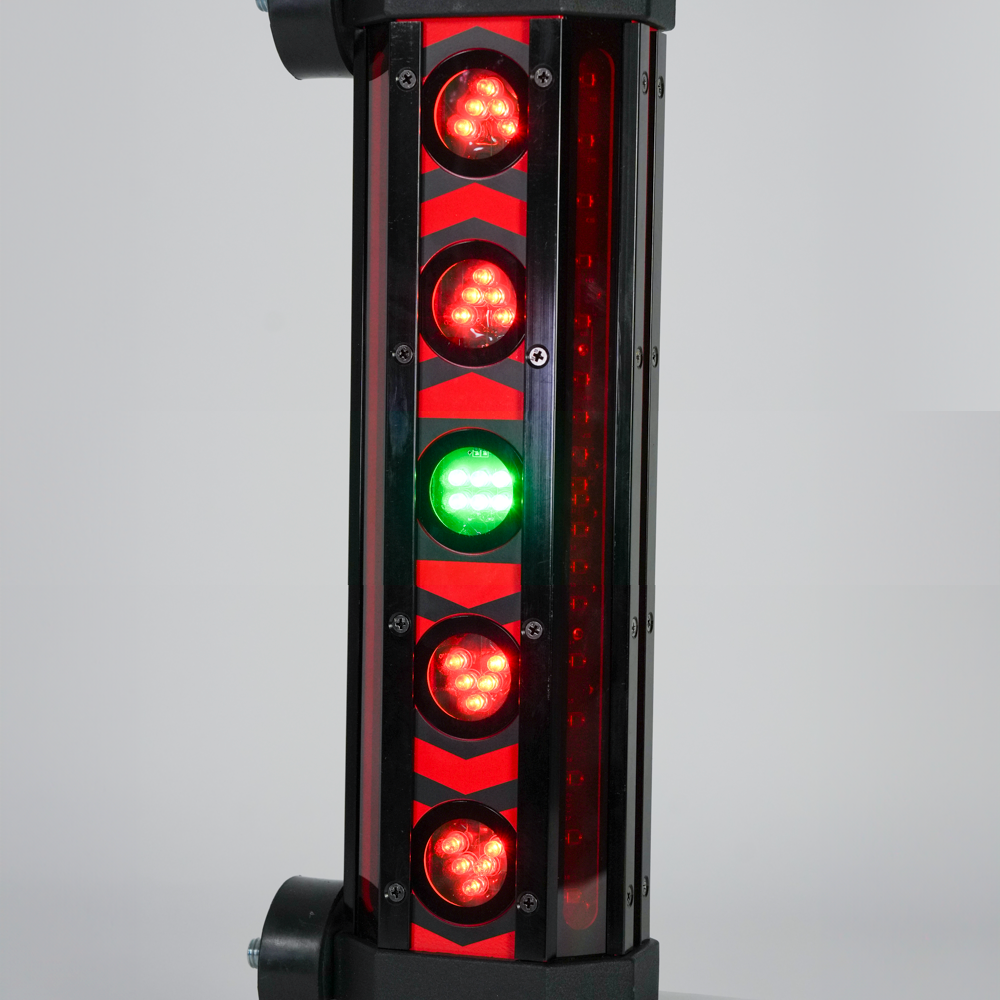

The MR710 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window. The receiver will flash slowly it indicates when the laser moves outside of the reception window and shows the height at which the laser was last detected. On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser. Both above and below level as well as for level.

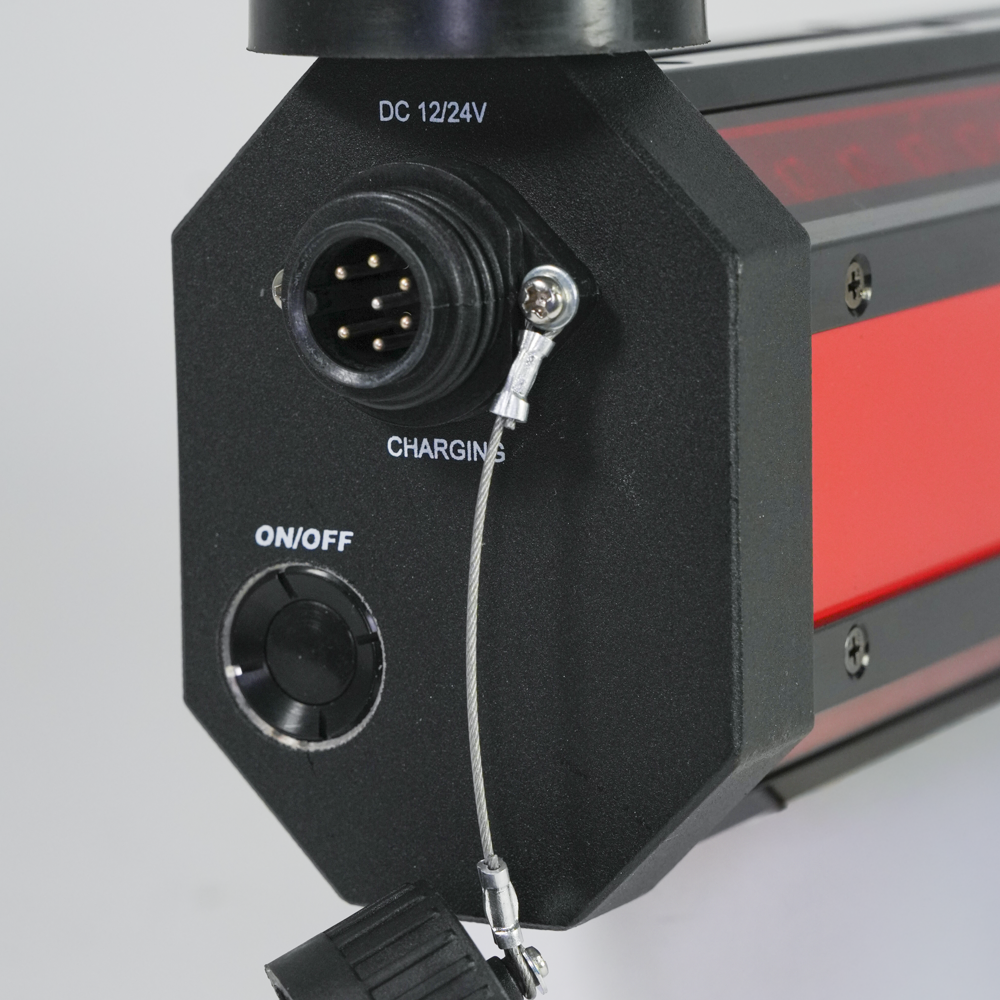

The RedBack Lasers MR710 has an internal Ni-mh battery that can be charged with the included mains charging unit. It can also operate on a 12 or 24V system with the included cable with crocodile clips. Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.
Machine receivers are ideal for all types of earthmoving and groundworks, excavating for level and grades, and can be installed on a number of machines.
Operating the MR710/D
Using a machine laser receiver with excavators and other earthmoving equipment with RedBack Lasers
How to Select the right Machine Receiver from RedBack Lasers
Features
- 360 Degree Sensors for all-round reception
- Large 250mm Reception Window
- Laser Received Height Flash Indicator
- Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
- IP66 water and dust-tight
- Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
- Operates with Red Beam Rotating Lasers.
- Two Year Warranty
