Original price was: $3,548.00.$3,248.95Current price is: $3,248.95. inc. GST
EGL624GM & MR710D - RedBack Rotating Laser with Auto Grade Match - Magnet & Clamp Machine Reciever - Earthmoving Combo
| Weight | 6 kg |
|---|---|
| Dimensions | 37 × 45 × 25 cm |
Range Brochure PDF can be viewed, printed and downloaded HERE
Base Instruction PDF can be viewed, printed and downloaded HERE
Additional Grade Match and Millimeter Receiver instruction sheet HERE
All orders from RedBack Lasers are delivered free anywhere in Australia - this includes Post Box's & PMBs.
We utilize multiple different couriers including Australia Post, StarTrack, Aramex. We do this to ensure the best possible delivery service for your product, location, amongst other factors. If you have a preference, get in touch and we will try to accomodate you as best we can.
Express Freight is available at an additional charge. This is calculated at checkout once your delivery information has been put in. We can also accomodate Air Freight to certain locations, which we can quote over the phone.
We generally have same or next day dispatch depending on when you order – although this is not guaranteed.
If you need a product in a hurry – it is often best to call us to see what we can organize.
This great earthmoving combo features RedBack Lasers highly featured EGL624GM with dual grade and auto-tracking grade match. Together with the MR710D machine receiver with magnetic mounting and in-cab repeater unit. Perfect for your earthmoving and plumbing needs. Need a laser with Digital grade? check out the DGL1010GM HERE, and if you need the machine receiver then add it separately. For help in deciding which is the best model for you call us on 1800 769 858. This is a great package for Excavators, Backhoes and more.
The EGL624GM is a fully automatic electronic leveling rotating grade/slope laser with easy-to-use controls. Simply place laser level on a tripod (optional extra) and press the power button, it levels and begins to rotate. The EGL624GM is extremely tough with a steel internal chassis and heavy-duty rubberised casing.
Earthmoving Laser Level with Dual Grade and vertical Alignment RedBack Lasers EGL624GM
Fence & Vertical Alignment kit FVAK64 - Suitable for RedBack EGL624GM and DGL1010GM Laser Levels
RedBack Fencing Lasers - How to align fences using the rotating tracking laser
Tilt Function on RedBack Lasers EL614 & EGL624 Range
VWS Vibration Wind Sensor Feature RedBack Lasers EL & EGL Models
The EGL624GM features a dual manual grade match so you can set a grade on either or both axis using the remote control, so single person grade setting. Where the EGL624GM stands out from the rest is the automatic grade match and tracking facilitated by the LR720T tracking receiver. This feature allows the user to set the LR720T millimeter tracking receiver at a particular height. The laser will then slope its beam on the selected axis to find this height and lock to this grade. This makes setting grades extremely quickly and is especially useful where you want to match to a particular slope on-site. This tracking feature can also be used with the laser on its side for vertical alignment. Making it an awesome fencing laser, see video on fence alignment above.

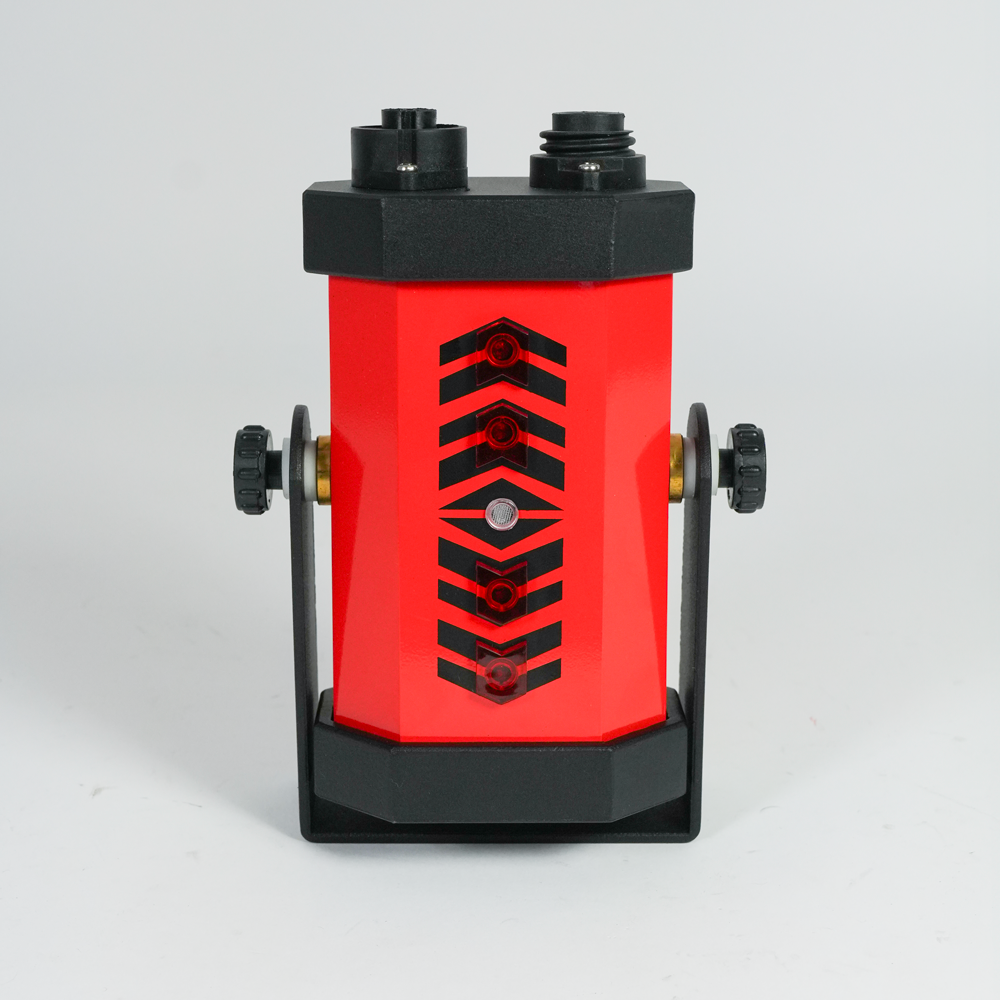

RedBack Lasers MR710D machine receiver with magnetic mount and in-cab repeater unit ideal for earthmoving applications. It features magnetic mounting on a machine boom or dipper arm, as well as clamp mount to attach onto a pole for blades/buckets. The MR710D features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window. When the laser moves out of this reception window the receiver will flash slowly indicating the laser height the laser was last detected at. On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser.
The RedBack Lasers MR710D has an internal Ni-MH battery that can be charged with the included mains charging unit. The receiver can also operate on a 12 or 24V system with the included cable with crocodile clips. Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.
The RedBack Lasers MR710D pack comes also with an in-cab repeater unit and cables. The MR710D can be used without the in-cab repeater if desired.
Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines. This is a great package for Excavators, Backhoes, Skid Steers, Grader Blades and more.
Using a machine laser receiver with excavators and other earthmoving equipment with RedBack Lasers
How to Select the right Machine Receiver from RedBack Lasers
Also available is the FVAK64 Fence & Vertical Alignment Kit which makes this laser ideal for long-distance fence alignment tasks in commercial and rural situations. CALL 1800 769 858 for details.
RedBack Lasers Service Department can also service and calibrate the following brands when possible (not all laser levels are built for recalibration - so check with us first); Topcon, Leica, Rugby, Geo Fennel, Spectra, Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, Spectra Precision HV302, CPI, Datum, Fukuda and more. Call us on 1800 769 858 or have a look at our Service & Calibration Page for further info.
If you're looking for a handy grade conversion tool for calculating slopes & grades, check out this page on Laser Level Review.
RedBack Lasers’ EGL624GM Rotating Laser with Auto Grade Match & MR710D Machine Receiver Earthmoving Combo.
The ideal Laser combo for Earthmovers, Farmers & more with Dual Grade, Vertical Alignment & more.
EGL624GM & MR710D –... Original price was: $3,548.00.$3,248.95Current price is: $3,248.95. inc. GST
