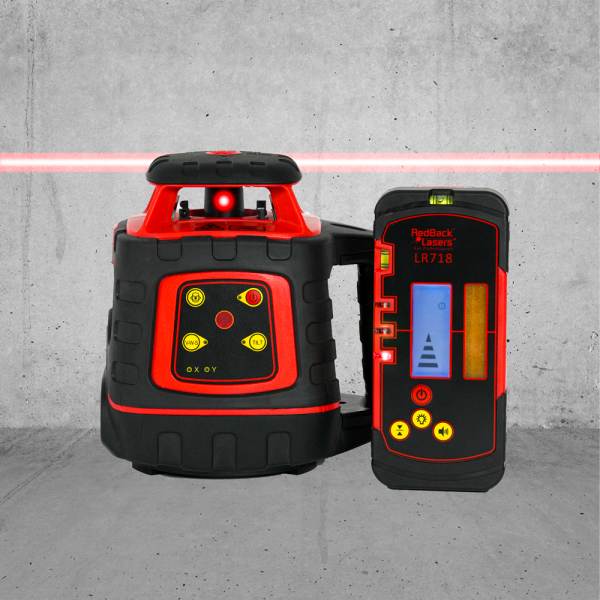

RedBack Lasers BASIC614 Electronic Auto-Leveling Rotating Construction Laser Level Built Tough

Perfect rotary rotating laser level for Concreters, General Construction and Builders’ Site Levelling.  The Basic614 kit features the same heavy-duty laser level head as the Popular EL614 & EL614S models but in a cut down form.  The Basic614 features standard “C” Cell battery power and comes in a soft carry bag.

Video Guides followed by Descriptions and Specifications

Note: The BASIC614 Does NOT include rechargeable battery and charger.

Introducing the RedBack BASIC614 Auto-Leveling Rotating laser

VWS Vibration and Wind Function

TILT Function

BASIC614 Rotating Laser Level Description

RedBack Lasers 614 is a fully automatic electronic self-levelling rotating laser level with easy to use controls.  Simply place the rotary laser on a tripod (optional extra) and press the power button, in seconds, it self levels and begins to rotate.  The 614 is extremely tough with a steel internal chassis and heavy-duty rubberised casing, in other words, it can handle rough treatment.  It is the perfect Construction, concreting and Agriculture laser.  Standard “C” Cell battery operation is ideal for a laser that is not used all the time making it ready to go whenever you need it.

Features

RedBack Lasers 614 features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating, therefore, indicating something has moved.  It will only re-start once you have selected to do so, thus, providing the opportunity to check that it’s still at the correct height.  It also features V W S (vibration and wind setting).  When selected the 614 laser level will continue to rotate even when making minor adjustments due to vibrations.  Without it selected the laser will stop rotating each time to make those minor adjustments.  In high wind or near machines selecting VWS will make the levelling far quicker, because you no longer have to wait for it to start rotating again.

The BASIC614 rotating concreters laser level kit comes complete with an LR715 electronic long range receiver with dual LCD displays.

If you find you are using the laser on a more regular basis then a rechargeable battery and charger can be purchased for this model.

The BASIC614 laser is perfect for concreters who need a tough, reliable and spot-on accurate laser.  Therefore, this laser is also ideal for all general construction site levelling applications.

In Summary

The RedBack BASIC614 rotary construction laser comes with an automatic 5 Year manufacturer’s warranty, for, peace of mind.

  • Electronic Self Levelling
  • Horizontal Rotation for Levelling
  • Easy to Set Up and Use
  • TILT and V-W-S Vibration modes
  • Internal Steel Safety Cage
  • Direct Drive Rotation
  • Electronic Receiver LR715
  • 5 Year RedBack Warranty
All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.

Remember to add a tripod and Staff Bundle 240HDF if you need one.

Construction Rotating Laser Level Specifications

  • Long Range – 500m diameter using LR715 receiver
  • High Accuracy – +/- 1.5mm at 20m
  • Laser Class – class 2 <1mW 635-670nm red
  • Water Dust Resistance – IP55
Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.



Compare this laser with similar models in our range!

Compare Specifications, Features, Accessories and more here!



TitleBASIC614 – RedBack Electronic Levelling Rotating Laser Level
Reviews
Price$799.00 inc GST
Laser TypeRotating Laser
Tripod & Staff Included?-
Horizontal LevellingAuto-Levelling - Electronic
Colour & Laser ClassRed - Class 2
Accuracy+/-1.5mm @ 20m
Range500m Diameter
ReceiverLR715 - Dual Display Receiver
Extra FeaturesTilt Mode, VWS Mode, Scan Mode
Grade SettingNo Grade Setting
Grade Range-
Vertical AlignmentNo
Mounting Options5/8" Survey Thread
BatteryBattery Caddy - C Cell, Optional Rechargeable Battery
CaseSoft Case with Protective Foam
Warranty5 Years

in stock

or
TitleEL614S – RedBack Electronic Levelling Rotating Laser Level with Grade
Reviews
Price$1,099.00 inc GST
Laser TypeRotating Laser
Tripod & Staff Included?-
Horizontal LevellingAuto-Levelling - Electronic
Colour & Laser ClassRed - Class 2
Accuracy+/-1.5mm @ 20m
Range500m Diameter
ReceiverLR715 - Dual Display Receiver
Extra FeaturesTilt Mode, VWS Mode, Scan Mode
Grade SettingSingle Grade, Manual Grade - Slope Remote
Grade Range+/- 8%
Vertical AlignmentNo
Mounting Options5/8" Survey Thread
BatteryNi-mh Rechargeable Battery, Battery Caddy - C Cell
CaseHard Case with Protective Foam
Warranty5 Years

in stock

or
TitleEL614GM – RedBack Electronic Levelling Auto Grade Match Rotating Laser with mm Display Tracking Receiver
Reviews
Price Original price was: $1,499.00.Current price is: $1,349.95. inc GST
Laser TypeRotating Laser
Tripod & Staff Included?-
Horizontal LevellingAuto-Levelling - Electronic
Colour & Laser ClassRed - Class 2
Accuracy+/-1.5mm @ 20m
Range600m Diameter
ReceiverLR720T - mm Tracking Receiver
Extra FeaturesTilt Mode, VWS Mode, Scan Mode
Grade SettingSingle Grade, Auto-Grade Match to mm Receiver, Manual Grade - Slope Remote
Grade Range+/- 8%
Vertical AlignmentNo
Mounting Options5/8" Survey Thread
BatteryNi-mh Rechargeable Battery, Battery Caddy - C Cell
CaseHard Case with Protective Foam
Warranty5 Years

in stock

or
Title509KIT – RedBack Lasers Rotating Laser Level Kit with Tripod and Staff in Carry Case
Reviews
Price$699.00 inc GST
Laser TypeRotating Laser
Tripod & Staff Included?Yes
Horizontal LevellingAuto-Levelling - Pendulum
Colour & Laser ClassRed - Class 2
Accuracy+/-3mm @ 20m
Range240m Diameter
ReceiverLR710 - Standard Receiver
Extra Features-
Grade SettingNo Grade Setting
Grade Range-
Vertical AlignmentYes - Manual Levelling
Mounting Options5/8" Survey Thread
BatteryAA Batteries, Optional Rechargeable Battery
CaseHard Case with Tripod & Staff enclosed
Warranty2 Years

in stock

or



FREE Freight Australia Wide
Have a Question?
Call 1800 769 858




RedBack Lasers service department also service and calibrate the following brands when possible; Topcon RL-H5B, Leica, Rugby, Geo Fennel, Spectra, Imex Lasers, Powerline, Spot on, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Fukuda, Stabila, Stanley, sokkia,

Weight3 kg
Dimensions29 × 22 × 25 cm
