RedBack Lasers 509KIT Rotating Laser Level Kit

The RedBack Rotating Laser Level Kit 509KIT is an easy to use, compact but solid auto levelling rotating rotary laser level. First place the laser on the tripod, Second, unlock the pendulum and your ready to work in seconds with one of the fastest self levelling rotating lasers available.  The 509 can also operate on its side for vertical rotation.  Simply place the laser on its side mount either on the floor or tripod, DO NOT unlock the pendulum and use the manual levelling bubble vial to level it off.  Power up the laser and it will start rotating, note the laser level is manually levelling in vertical mode.  The 509KIT is powered by 4x “AA” standard Alkaline batteries.  As an Option 509KIT upgrade pack can be purchased which includes, rechargeable Ni-mh batteries and charger HERE

Other features of the 509KIT include; integrated wall/side mount bracket, 3 rotation speed settings and Rubberised housing.

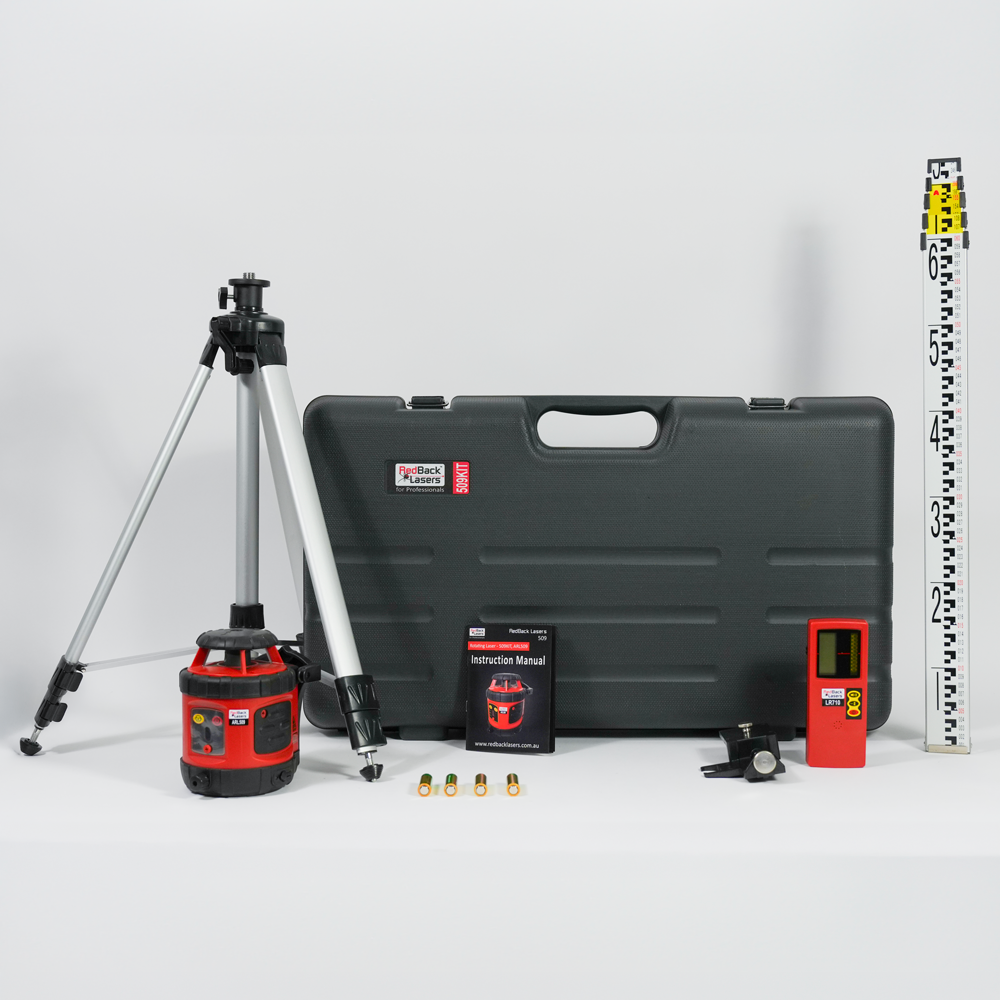

The Rotary Laser 509KIT comes complete with an LR710 LCD electronic receiver, Small Elevating Tripod, 2.4m telescopic Staff and standard “AA” batteries all in a hard shell carry case.

The 509KIT is ideal for all general construction & site levelling applications and can be used both outdoors with the receiver and indoors visibly.  Vertical mode allows for vertical alignment jobs and a dot laser at 90 degrees to the rotating plane allows for basic site squaring.  This kit is ideal for owner builders general construction and trades.

In Conclusion

This kit was designed so that everything is in one small case, ready to get to work on those odd occasions when you need a laser on site.  However, If you are needing a laser to use on a more day in and day out then perhaps look at RedBack Lasers EL614P (electronic Self Levelling, Heavy Duty Tripod and Staff, Ni-mh batteries included) HERE

The RedBack Lasers Rotary Laser 509KIT comes with a 2 Year manufacturers warranty (laser head).

  • Self Levelling (Horiz)
  • Horizontal Rotation for Levelling
  • Vertical Rotation for Alignment
  • Std Battery Operation (rechargeable batteries/charger optional accessories)
  • Electronic Receiver
  • 2 Year RedBack Lasers Warranty
All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.



Specifications:

  • Range – 240m diameter using LR710 receiver
  • Accuracy – +/- 3mm at 20m
  • Laser Class – class 2 <1mW 635-570nm
  • Water Dust Resistance – IP54
Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.

You can purchase the 509KIT Upgrade pack consisting of Ni-mh rechargeable batteries and RB4 charger HERE




RedBack Lasers service department also service and calibrate the following brands when possible; Geo Fennel, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, PLS, Fukuda, aLIne, Bince, Stanley

Weight7.5 kg
Dimensions42 × 72 × 15 cm

DOWNLOADS

Instruction PDF can be viewed, printed and downloaded HERE

Frequently bought together

$668.95
For 2 item(s)

29 reviews for 509KIT – RedBack Lasers Rotating Laser Level Kit with Tripod and Staff in Carry Case

Powered byCusRev
4.7
Based on 29 reviews
Showing 21 of 29 reviews (5 star). See all 29 reviews
1-5 of 29 reviews
  1. This is quality for the price. It’s surprisingly accurate and the carry case is sweet. Fast delivery. It would be nice if the receiver had a rear display as reading front display can be awkward, often my head blocks the laser. Awesome value for money.

  2. Great little laser.
    Just set out a 18x12m shed slab and a surveyor turned up do a house site next door so got him to check my levels and it was within 2mm over 20m. Really accurate for the price. The only thing is the tripod is a little light but good enough for what my needs are setting out the shed and general landscape work and plumbing.
    Very happy for what it costs as it is so handy for jobs around the farm.

  3. Very happy, thanks.

  4. I would expect a kit to come with a charger and rechargeable batteries

  5. Great product.. easy to use and was sent quickly!
