Features
See bucket position relative to the target surface at all times. Cut/fill indicators tell the operator exactly how much material to move — ±3cm RTK accuracy, no surveyor needed.
Rugged attitude sensor rated IP67 and operational from −40°C to +85°C. Built for mud, water, and the toughest Australian job sites.

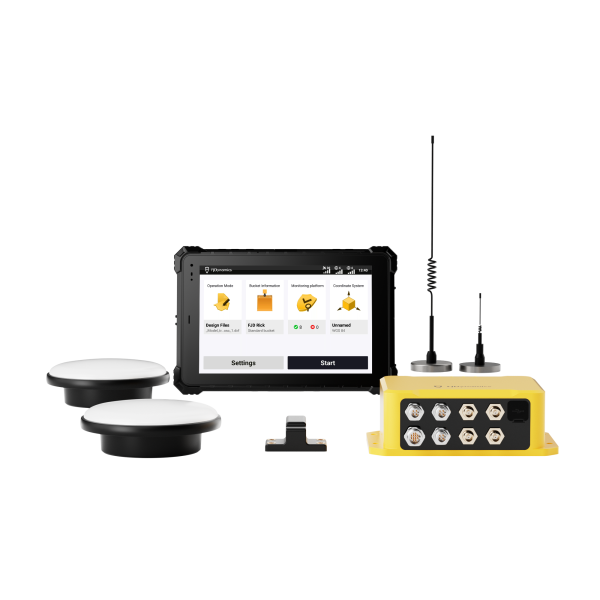

Brand-new high-precision control box handles all system processing and drives the 10.1" touchscreen. 4G, Wi-Fi and Bluetooth built in — optional UHF radio for remote sites.
Dual antenna RTK positioning delivers accurate heading without moving the machine. Quick-release mounts make install and removal fast between jobs.
Real-time 3D visual guidance — see bucket position relative to target surface at all times
Cut/fill indicators show exactly how much material to move
Transparent Bucket mode — see through the bucket for precise underground positioning
3D Line Guidance for accurate trenching and channel work
Layer Management for complex multi-layer excavation projects
Completion Rendering for project documentation and sign-off
On-site design from the cab — set datum points and start digging without a surveyor
Built-in cross-section templates for trenching and levelling
Import DXF (CAD) and LandXML files for working off existing site plans
2D guidance mode without GNSS — uses known reference points when signal is not available
OTA updates — system stays current without visiting a dealer
Double-boom and offset boom support for complex machinery configurations
Tilt bucket & tilt-rotator compatibility (Engcon, Steelwrist, Rototilt)
Long-reach solutions supported for specialty excavation
Quick-release GNSS antennas for fast install and removal
IP67 waterproof sensor rated -40°C to +85°C — built for any site condition
Technical details
| Excavation Accuracy | ±3cm (RMS) |
|---|---|
| GNSS Satellites | BeiDou / GLONASS / GALILEO / GPS |
| Connectivity | 4G / Wi-Fi / Bluetooth (UHF Radio optional) |
| Control Tablet | 10.1" LED Touchscreen |
| Tablet CPU | Octa-core 2.2GHz |
| Tablet Memory | 8GB RAM / 128GB Storage |
| Sensor IP Rating | IP67 |
| Operating Temperature | -40°C to +85°C |
| Correction Source | Ntrip (Network RTK) or Local Base Station |
