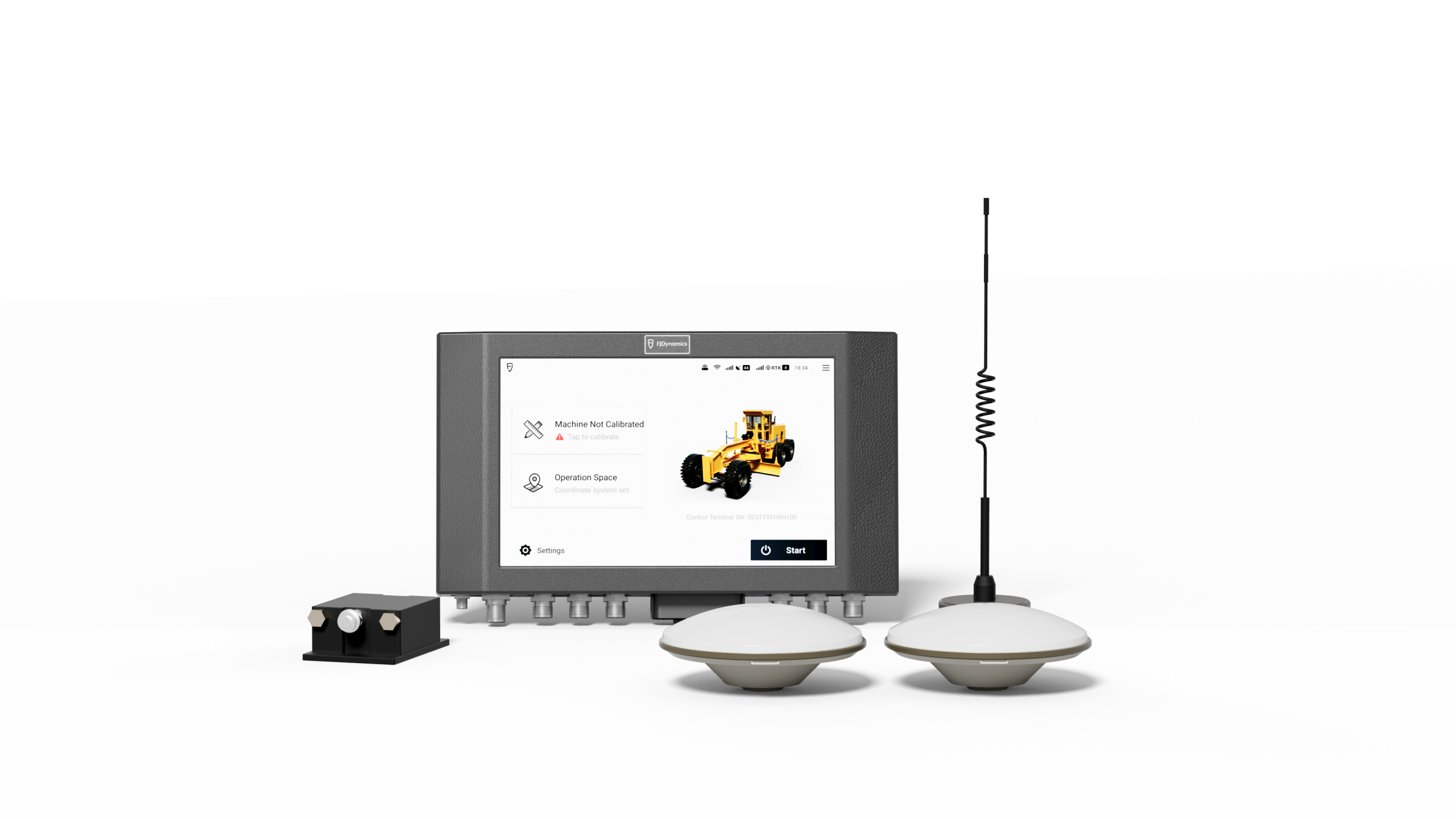

The FJD H36 PRO is a GNSS-based 3D Motor Grader Control System that automatically adjusts blade attitude in real time, delivering centimetre-level grading accuracy in a single pass. Powered by an 8-core 2.2 GHz IP68 tablet with real-time 3D visual guidance, plus the option to run 2D without GNSS for mixed-site flexibility.
The FJD H36 PRO 3D Motor Grader Control System brings intelligent, automated blade control to motor graders across all major brands. Using high-precision satellite positioning combined with multi-type sensor modules, the H36 PRO captures real-time working position and attitude data and automatically adjusts blade attitude through the valve control module — delivering accurate levelling results in a single pass and eliminating costly rework.
The system collects the blade's spatial 3D coordinates in real time via GNSS and compares them against your design file. When deviation is detected, the valve control module automatically corrects the mechanical shovel line — no repeated measuring, no guesswork, no rework.
Import design files directly into the terminal and work in Design Files, Depth or Elevation modes — with full gesture controls (move, zoom, select, 3D rotate) making on-terminal operation fast and intuitive.
The H36 PRO adapts to your job-site reality with three solution types:
The 10.1" LED touchscreen (8-core 2.2 GHz, 8 GB RAM + 128 GB ROM, IP68) displays blade position relative to the target surface in real time with cut/fill indicators — so progress and quality can be monitored directly from the cab.
The control terminal is IP68-rated; the attitude sensor is IP67 and rated from -40°C to +85°C; and the wiring harness is durable down to -40°C — engineered to keep running on airport, stadium, road, and residential sites in any climate.
Stay current with over-the-air firmware updates. FJDynamics' remote support capability means issues can be diagnosed and resolved without an on-site technician visit.
Watch
Features
The H36 PRO collects the blade's spatial 3D coordinates in real time via GNSS and compares them against your design file. When deviation is found, the valve control module automatically corrects the mechanical shovel line — delivering accurate, repeatable levelling in a single pass with no grade checker needed.
Import design files into construction drawings and work in Design Files, Depth or Elevation modes. The 10.1" touchscreen supports full gesture controls — move, zoom, select and 3D rotate — making terminal operation fast and intuitive from the cab.
Three precision tools keep the blade on grade as conditions change. Elevation Offset runs operations off a height reference for accurate, consistent results. Blade Wear calibration compensates for tool wear so accuracy never drifts. Hold Slope extends a specified slope across the working area with stable, continuous guidance.
The H36 PRO adapts to mixed-fleet reality with three solution types: Single-Mast for traditional GNSS setups, 2D Solution for sites where GNSS isn't practical, and Robotic Total Station Solution for millimetre accuracy from a tracked total station.
The 10.1" LED touchscreen (8-core 2.2 GHz, 8 GB RAM + 128 GB ROM) is IP68-rated for in-cab dust and water protection. The attitude sensor is IP67 and operates from -40°C to +85°C, and the wiring harness is durable down to -40°C — engineered for road, airport, stadium and residential jobsites in any climate.
The H36 PRO receives over-the-air firmware updates automatically, keeping the system current without downtime. FJDynamics' 24/7 remote support means most issues can be diagnosed and resolved without an on-site technician visit.
In the box
Technical details
| Operation Accuracy | 30 mm |
|---|---|
| Heading Accuracy | 0.1° |
| Control Terminal Screen | 10.1" LED Touchscreen |
| Control Terminal Dimensions | 284 × 189 × 22.5 mm |
| Control Terminal Processor | 8-core 2.2 GHz |
| Control Terminal Memory | 8 GB RAM + 128 GB ROM |
| Control Terminal IP Rating | IP68 |
| Attitude Sensor IP Rating | IP67 |
| Attitude Sensor Max. Angular Velocity | ≤400°/s |
| Attitude Sensor Operating Temperature | -40°C to +85°C |
| Solution Options | Single-Mast, 2D (no GNSS), Robotic Total Station |
| GNSS Technology | High-precision satellite positioning |
| Remote Support | OTA firmware updates included |
