EGL624
RedBack Electronic Levelling Rotating Laser Level H/V with Grade
- Dual Grade & Vertical Alignment - a true allrounder!
- 1-person Dual Grade Setting via Slope Remote
- Electronic Levelling with TILT, VWS & Scan suitable for any jobsite
- Comes complete with Rechargeable Battery & Charger, Dual Sided Receiver, Hard Case & more!
Some accessories shown are optional extras. See what's included
4 fortnightly payments of $374.75 · interest free
- Free delivery Australia-wide. Dispatched fast from our warehouse.
Express Post option available at checkout.
- 5 years warranty. Warranty and care details
- Talk to a laser specialist. Call 1800 769 858 or .
Overview
RedBack Lasers' EGL624 Electronic Levelling Laser - Dual Grade Electronic Auto-Levelling Rotating Laser. Horizontal and Vertical Rotation Modes - Ideal for concreting, general site levelling, site layout, plumbing, earthmoving & more.
RedBack Lasers EGL624 Electronic Levelling Rotating Laser
Electronic Levelling Rotating Laser with dual Grade, Slope laser using Remote, dual display receiver and rechargeable Battery and charger. An ideal Builders Laser, Construction Laser perfect for a variety of tasks.
RedBack Lasers EGL624 is a fully Electronic Levelling Rotating Laser both Horizontal & Vertically. Firstly place laser level on a tripod (optional extra) then secondly, press the power button. In seconds it self levels and begins to rotate and is ready to work. The EGL6124 is extremely tough with a steel internal chassis and heavy rubberised casing. It can handle use day in, day out on the toughest of job sites.

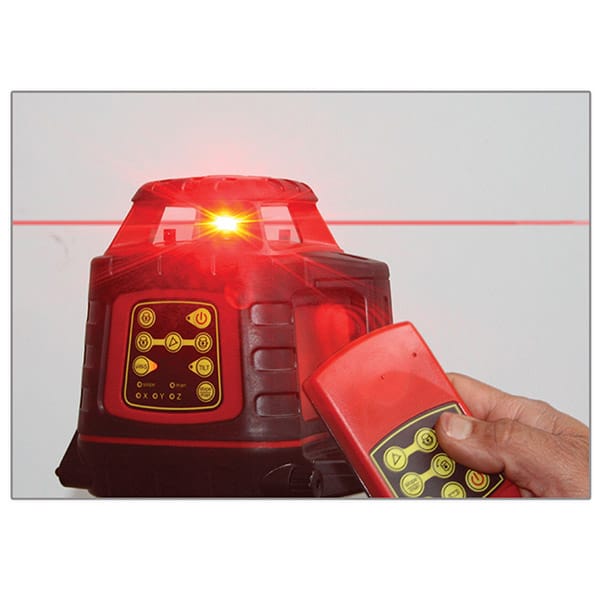

RedBack Lasers EGL624 Is also electronically self levelling on its side for vertical rotation. Also included is a dot laser at 90 degrees, consequently, it can be used for site square layout. One of its main features is dual manual grade match so you can set a grade on either or both axis using the remote control. So, one person operation for setting grades or slopes with ease.
More Features
The EGL624 also features TILT function in that if this is selected and the laser is disturbed or knocked the beam will stop rotating. This warns you that something has moved, therefore, prompting the user to check the set up before continuing. Another features is V W S (vibration and wind setting) when selected the EGL624 will continue to spin even when making minor adjustments due to vibrations. Without VWS selected it will stop rotating each time to make those minor adjustments, therefore, saving time on site. This laser can also be use for interior installation with Scan line modes. This intensify the visible brightness for both horizontal and vertical operation.

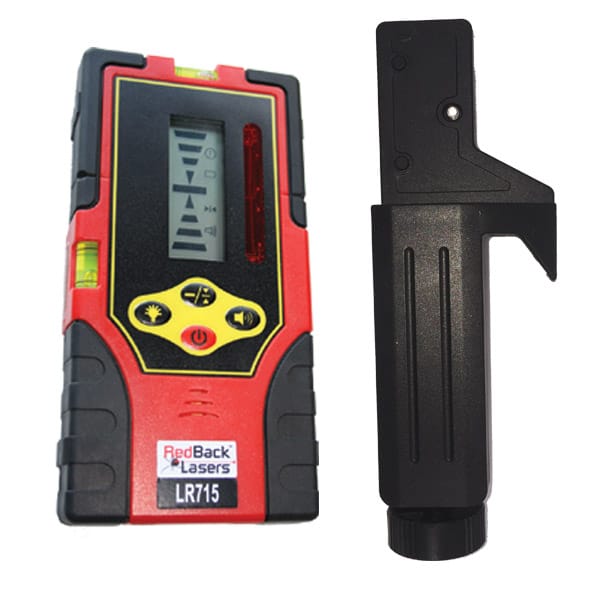

The EGL624 dual slope laser comes complete with Heavy Duty LR715 electronic receiver. This receiver features dual LCD front and back displays. The EGL624 builders laser also comes with rechargeable batteries and charger. But, can also be used with standard “C” batteries or even be powered of the charger/power supply.
Other brands sell rechargeable batteries and charger separately with the RedBack EGL624 its all included.
The EGL624 Electronic Levelling Rotating Laser is ideal for many jobs/trades. For example; concreters, plumbers, general builders laser and site levelling as well as internal installation.
The RedBack EGL624 dual grade laser comes with a 5 Year manufacturers warranty.
[xyz-ihs snippet=”Calibration-Certified”]
Key Features
- 1-Button Electronic Self Levelling
- Horizontal Rotation for Levelling
- Auto Levelling Vertical Rotation for Alignment & Set-out
- Dual Grade/Slope via Slope Remote
- Vibration & Wind Sensor Mode (VWS)
- TILT Mode for Error Mitigation
- Scan Mode for increased Indoor Visibility
- Heavy Duty Cast Metal Chassis
- Manual Mode for Infinite Grades
- Dual Sided Receiver

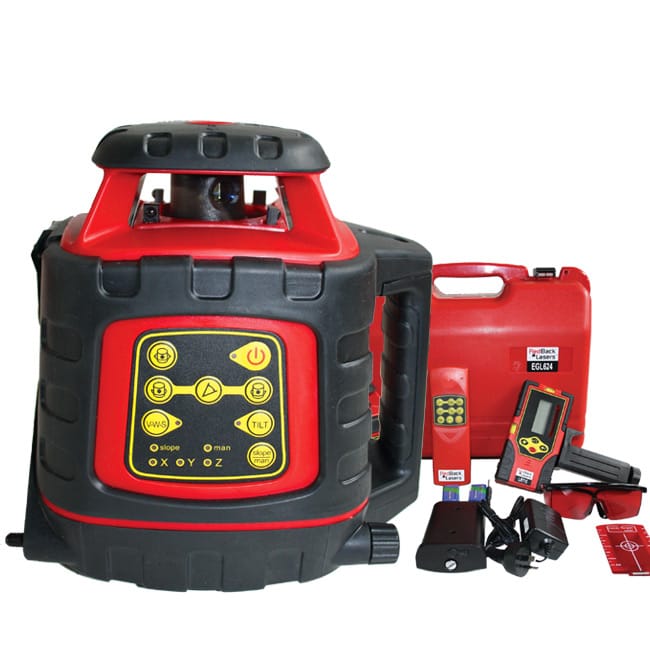

What's Included
- EGL624 Dual Grade Rotating Laser with Vertical
- LR715 Dual Sided Graduated Receiver
- SB715 Receiver Staff Bracket
- CASE C Hard Carry Case with Soft Protective Foam
- Slope Remote for Dual Grade Setting
- BAT 614/624 - NiMH Rechargeable Battery
- CHARGER RB2 - Charger for Rechargeable Battery
- BATTERY Box 614/624 - C Cell Battery Holder
- Alternate Receiver Mount Bracket
- LEK1R - Laser Enhancement Glasses & Target
- Batteries for Receiver & Remote
- Instruction Manual
- Calibration Certificate
Full Specifications
| Maximum Range | 300m Radius, 600m Diameter |
|---|---|
| Accuracy | 1.5mm @ 20m |
| Levelling Range | ± 8% |
| Grade Range | ± 8% |
| Laser Class | Class 2 |
|---|---|
| Water Dust Resistance | IP66 |
| Warranty | 5 Year |
| Battery Types | NiMH Rechargeable Battery or C Cell |
Complete Your Setup
Reviews
Only verified customers can leave a review
No written reviews yet.
Spare Parts
-
SB715Replacement Staff Bracket to fit RedBack LR715 & LRG715 Receivers
$69.00
Add
-
CHARGER RB2For RedBack EGL624, EL614, CX440, ARL516G and more
$79.00
Add
-
BAT 614/624EGL624 EL614 Battery Pack Ni-mh
$139.00
Add
-
BATTERY Box 614/624"C" Cell Battery Holder for RedBack EGL624, EGL624G and EL614
$58.00
Add
-
CASE CRedBack Lasers carry case shell for EL, EGL and CXR880 ranges
$139.00
Add
-
TARGET LS307Laser Target - Red
$15.00
Add
-
GLASSES LG1Red Laser Enhancement Glasses - Red
$24.00
Add
Care Information
5 Year Warranty
RedBack Lasers stand by their Electronic Levelling Rotating Lasers, with a 5 year "no-BS" warranty.
No yearly calibrations required, no extra sign-ups, no extra fees - genuine warranty. We don't void warranty if the laser shows signs of wear and tear, our lasers are a trade tool designed for everyday use.
Looking after it
To get the most out of your rotating laser - make sure to take care to avoid dropping/knocking over your laser.
Although these lasers are built extremely tough - they're still a high precision measuring device. The better you look after it, the better results you'll get!
This laser shouldn't need regular calibration unless it takes a drop, or if it's been a few years of solid use.
Calibration & servicing
This laser is 100% calibratable and repairable by our Geelong-based servicing team.
It can also be serviced & calibrated by our expert service agents located across Australia.
