$2,399.00 inc. GST
Complete Your Kit
LLR705 - RedBack Line Laser Receiver with LCD Display - Outdoor Line Laser Upgrade
+$189.95
240HDF - Tripod & Staff Bundle
+$200
Out of stock
Deposit
For more information about this product, including specs, comparison and even to ask for a deal, get in touch with RedBack Lasers' friendly team. We'll help you choose the best option to suit your exact needs and budget.
The XLG44XXL is a high-powered green multi-line laser with servo electronic self-levelling — the ultimate complete kit. This pack includes the LLRMM30 outdoor line receiver with LCD display and built-in laser distance measure, plus the AT1 Auto Tracking Base for site layout and square. The LLRMM30 allows the laser to be used outside up to 40m in all lighting conditions and doubles as a staff-less height measurement tool or standard laser distance measure.
The helpful LED display on the laser indicates which lines are selected. With all lines turned on you have a massive 360-degree horizontal line coverage, 4x vertical lines producing ceiling cross and 4 wall crosses. Plus a floor plumb red dot for floor to ceiling transposing of points.
Electronic Servo levelling means fast, accurate and durable self-levelling. The XLG44 360G Green automatically self-levels continuously — for minor adjustments using the rotation fine adjust knobs the laser will stay illuminated. This makes vertical alignment far easier than other servo multi-line models. With the control panel you can select a variety of lines to suit your needs. The bright LCD display provides a simple way to see which lines have been selected.
The laser is operated by simply pressing the red power button. The "V" and "H" buttons select the number of horizontal or vertical laser lines activated. The "M" mode button toggles between "P" Pulse mode for use with the included LLRMM30 green line receiver, and "D" is a power-saving dimmer mode. There is also a backup "AA" battery holder if the Li-ion battery pack has not been charged.
An additional feature unique to this laser is an integrated laser dot on the horizontal and vertical lines. These dots are more intense than the lines themselves, making the location of the lines easier to see in very bright conditions.
The Auto TRACK is designed to make vertical laser line alignment and square as easy as possible. Featuring an auto-tracking line receiver that communicates with the motorised base unit, the kit operates with any red or green beam line laser with either a 5/8" survey thread or 1/4" camera thread mount. For best results the laser needs its plumb point central to the mount and must have pulse/receiver mode active.

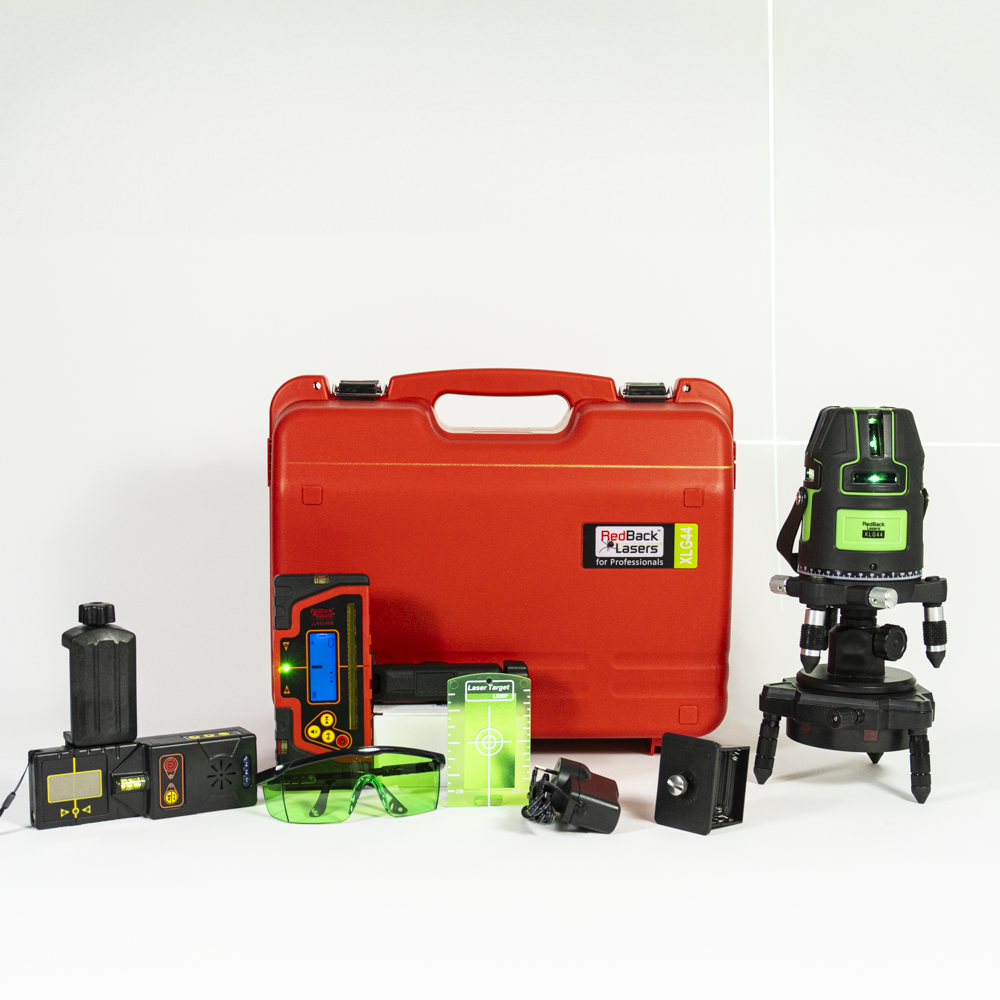

Includes: XLG44 Laser, LLRMM30 Millimeter Receiver, AT1 auto-tracking base and receiver, heavy-duty carry case, laser glasses, target, Li-ion rechargeable battery, charger and backup "AA" battery holder.
This product consists of:
Accessories
Watch
Features
The brightest & most accurate line laser in Australia.
Powered by 9x OSRAM diodes, with Servo Electronic Levelling.
The best of the best.
Rotates around it's plumb dot axis.
Easily align your lines & get 90° without having to move the laser.
The XLG44 can handle any situation - with laser dots in it's horizontal/vertical lines for outdoor use in daylight.
Pair it up with a Line Laser Receiver to detect the laser lines anywhere on your jobsite.
Electronic Levelling Multi-Line Laser
Electronic Levelling gives best-in-class accuracy
Class 3 Ultra-Bright Line Laser - Powered by 9 Laser Diodes for Maximum Brightness
Rotates around it's Plumb Laser Dot for Easy Squares, Set-out, Fit-out
Toggleable Laser Lines & Dimming Modes for Battery Preservation
Extra-visible dots in Vertical & Horizontal lines for brighter conditions
Pulse Mode for Receiver use to ~50m Radius
Digital Main Display for Battery, Levelling & Line Indication
In the box
Technical details
| Accuracy | +/-1mm @ 10m |
|---|---|
| Visible Range | Up to 40m Radius Indoors |
| Range with Receiver | Up to 50m Radius, 100m Diameter |
| Laser Class | Class 3R <5mW 522nm Green |
| Laser Diodes | German OSRAM Diodes x 9 (1 x Plumb Dot, 1 for each Laser Line) |
| Water Dust Resistance | IP54 |
| Battery Type | Li-ion Rechargeable or AA Batteries |
Features
1-person Vertical Alignment of Line Lasers!
Motorized Auto Tracking Base spins until Vertical Line meets the Receiver
Works best with Plumb-Rotating Style Line Lasers where the Plumb Point doesn't move when the Line Laser is spun
AT Receiver works as a Line Laser Receiver for Levels & Alignment
In the box
Technical details
| Communication Type | Infra-red |
|---|---|
| Compatible Lasers | Class 2 or 3 Red or Green Line Lasers - with Pulse Mode |
| Auto-Tracking Range | ~20m Indoors,~15m Outdoors (Condition Dependent) |
| Green Laser Receiver Range | <50m Radius, <100m Diameter |
| Red Laser Receiver Range | <150m Radius, <300m Diameter |
| Battery Type | AA Batteries |
| Warranty | 2 Year |
Features
mm Display Receiver for Red & Green Line Lasers with Pulse Mode
Allows Line Lasers to be used outdoors/in bright conditions where the beam is not visible
New Line Laser Receiver features improved responsiveness
25mm Display Above & Below Receiver for Precision
100mm Long Sensor Window
Dual Sided Displays
Loud Audible Speaker
Backlit LCD Display
Adjustable Accuracy Settings
Near & Far Mode
Comes complete with Adjustable Staff Bracket
In the box
