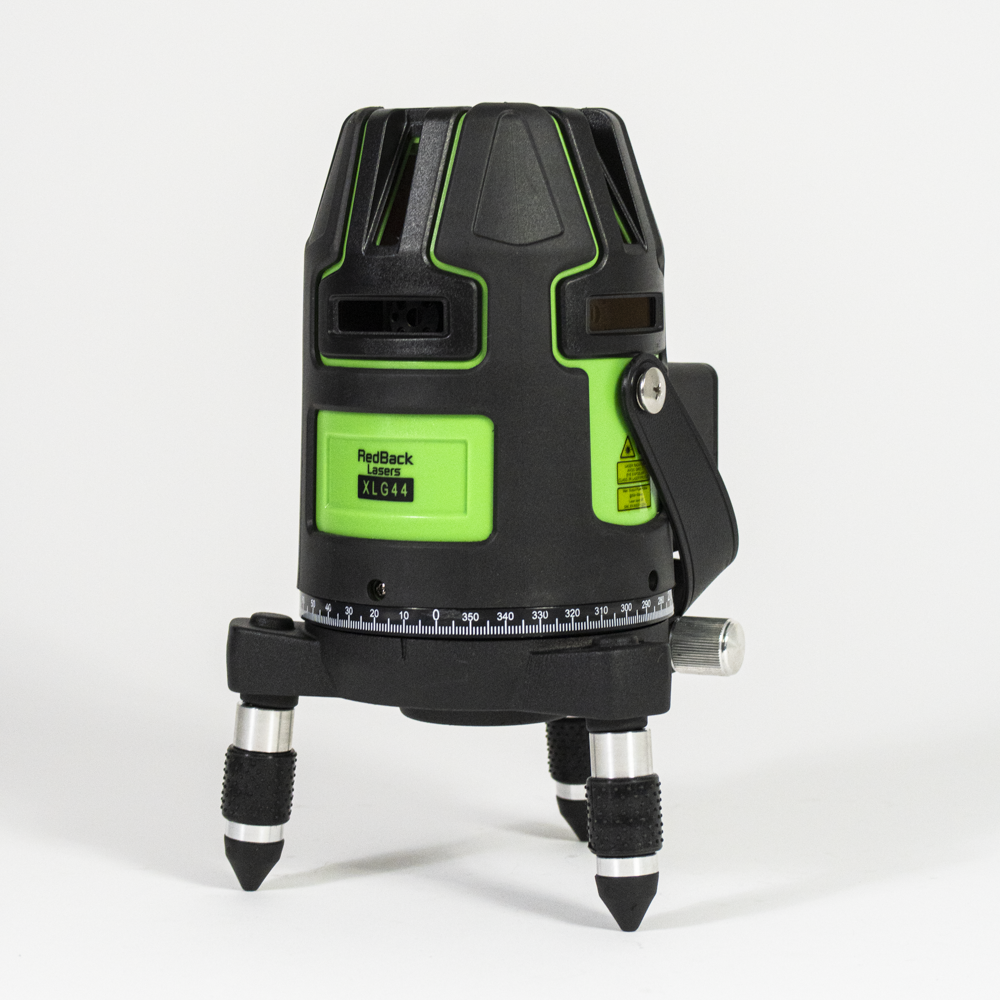

Green 360 Multi-Line Laser With Servo Electronic Self Leveling

The XLG44 is a green 360 multi-line laser with servo electronic self-levelling.  The laser features ultra-bright green laser lines ideal for interior fit out and installation applications.  The helpful LED display on the laser indicates which lines are selected.  With all line turned on you have a massive 360-degree horizontal line coverage, 4x vertical lines producing ceiling cross and 4 wall crosses.  Plus a floor plumb red dot for floor to ceiling transposing of points.

XL4G green multi line green beam laser

Servo Electronic Self Leveling

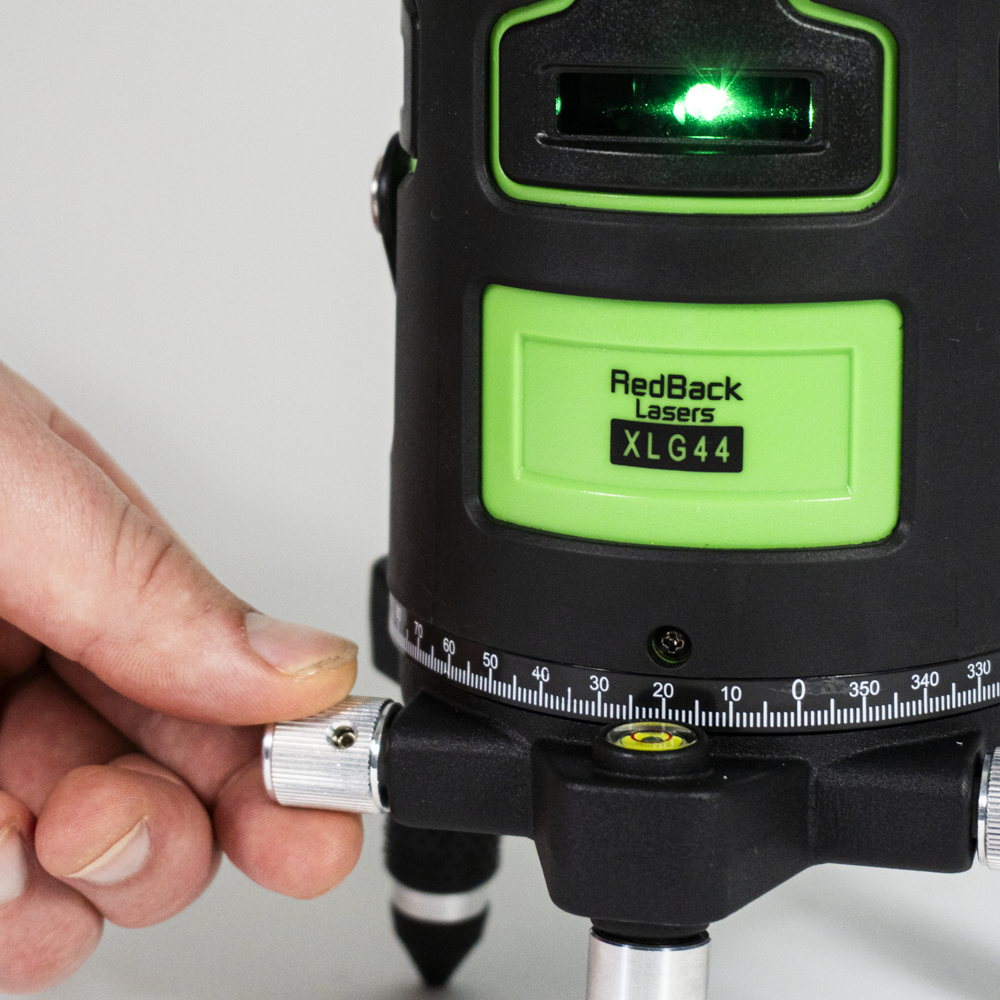

Electronic Servo leveling means; fast, accurate, and durable self-levelling.  The XLG44 360 degree Green laser automatically self-levels continuously for minor adjustments using the rotation fine adjust knobs the lasers will stay illuminated.  This makes vertical alignment far easier than other servo multi-line models.  With the control panel, you can select a variety of lines to suit your needs. The bright LCD display a simple way to see which lines have been selected.

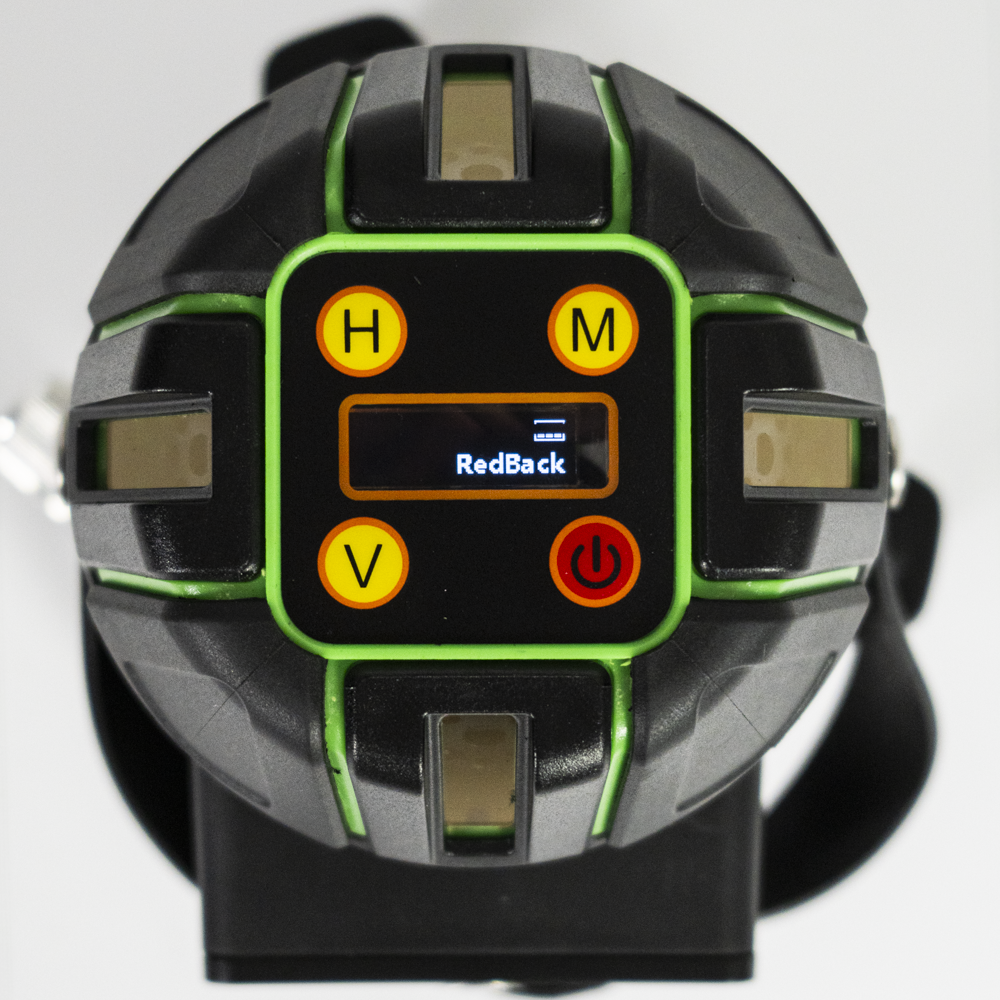

XLG44 Control Panel with LCD display




The laser is operated by simply pressing the red power button.  The “V” and “H” buttons select the number of horizontal or vertical laser lines activated.  The “M” mode button toggles between “P” Pulse mode for use with an OPTIONAL LLR705 green line receiver or LLRMM30 Millimeter Line Receiver.  And “D” is a power-saving dimmer mode.

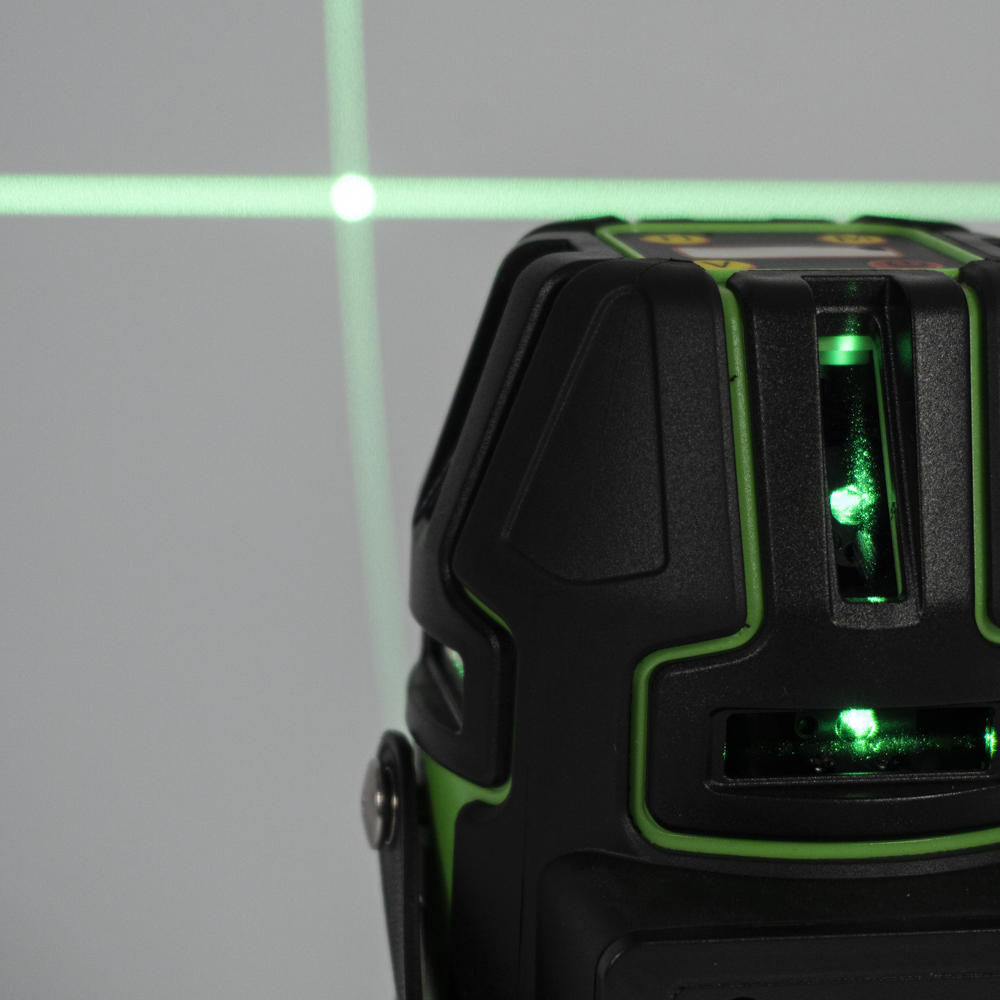

An additional feature unique to this laser is an integrated laser dot on the front horizontal and vertical lines.  These dots are more intense than the lines themselves making the location of the lines easier in very bright conditions.


  • Electronic self levelling for fast and accurate levelling operation.
  • 360 degree horizontal line and 4 vertical lines at 90 degrees plus ceiling cross and plumb dot down.
  • Comes with a Li-ion rechargeable battery pack & Charger plus “AA” standard battery holder.
  • LED display with beam selection, leveling status, mode and battery power indication.
  • Pulse mode for the OPTIONAL outdoor receiver for 50m diameter range outdoors in full sun.
  • Two Year Warranty

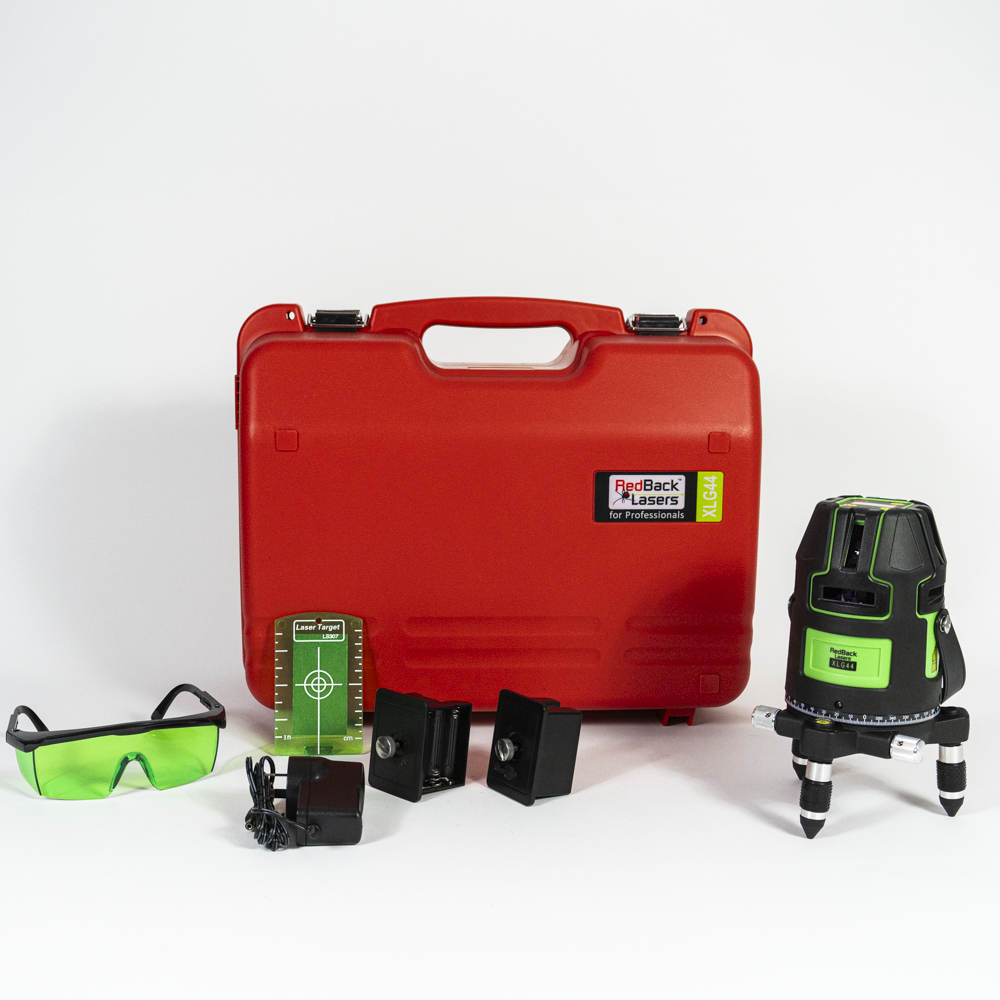

Includes heavy duty carry case, laser glasses, target, Li-ion rechargeable battery, charger and back up “AA” battery holder.

Green Multi-Line Laser with Servo – Specifications

  • Range – up to 40m visible indoors
  • Accuracy – +/- 1mm at 10m
  • Laser Class – class 3r <5mW 522nm green
  • Water Dust Resistance – IP54

OPTIONAL LLR705 green line receiver HERE
OPTIONAL AT1 Auto Track Kit including motorised base with tracking receiver HERE


RedBack Lasers service department also service and calibrate the following brands when possible; Leica, Geo Fennel, Bear, Spectra, Imex, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, PLS, Bear Servo 360G,

Weight5 kg
Dimensions37 × 45 × 25 cm


Download Instructions HERE
