Plumb-Point Rotation
The CX610G rotates on its central plumb point, making it ideal for site squaring and setup. Placing the laser over your mark-out point gives fast and easy levels and right-angles across your site.

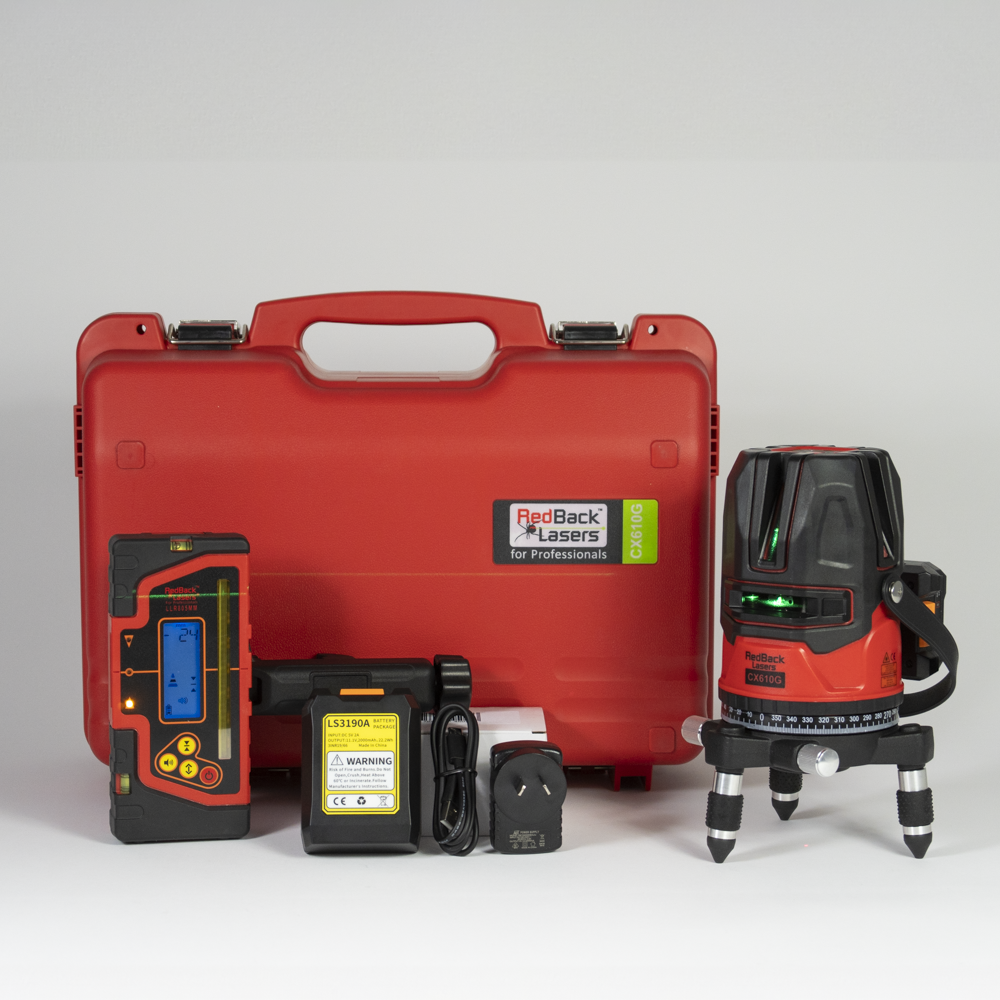

CX610G Class 3 Green Multi-Line Laser w/ LLR805MM mm Display Receiver
Some accessories shown are optional extras. See what's included
This bundle includes
CX610G | Class 3 Green Beam Multi-Line Laser with 4 Vertical & 1 Horizontal Green Laser Lines
View
LLR805MMmm Display Line Laser Receiver for Green & Red Line Lasers (50mm Display)
View
Bought separately $1,348.00 · save $49.00 with the bundle
Out of stock — get notified
Leave your details and we'll let you know the moment it's back.
The CX610G+MM bundles the brand-new CX610G Class 3 Green Multi-Line Laser with the LLR805MM mm-display outdoor line laser receiver — precision set-out, indoor or out, to the millimetre. Class 3R green beam multi-line laser with 4 vertical + 1 horizontal lines, rotating around its plumb axis for easy squares — plus the LLR805MM receiver with 100mm sensor and 50mm mm-display (25mm above & below level) for millimetre-accurate outdoor work.
The CX610G+MM pairs RedBack Lasers’ CX610G Class 3 Green Multi-Line Laser with the latest-generation LLR805MM mm-display line laser receiver. It’s our premium set-out kit — built for trades who need millimetre-precise outdoor readings with the unmatched ease of plumb-axis rotation indoors.
Unlike standard 3D Multi-Line lasers, the CX610G can be turned around its true plumb axis when aligning vertical lines. The plumb dot directly below the laser never moves — rotate the laser body to align vertical lines without losing your reference point. Faster, more accurate squares and set-out every time.
The CX610G features Class 3R green laser beams — the brightest laser class legally permitted for sale in Australia. Premium German OSRAM diodes deliver consistent beam performance and long-term reliability, with substantially higher visibility than the Class 2 (<1mW) lasers commonly sold elsewhere.
4 vertical lines at 90° to each other for square & alignment, plus 1 horizontal line with a 120° fan angle for levels. A Class 3 red plumb dot below the laser gives a permanent reference. Pulse Mode allows operation with the included LLR805MM receiver for outdoor use.
The LLR805MM is RedBack Lasers’ new & improved generation of Line Laser Receiver. Most line laser receivers use incremental arrows to indicate position — the LLR805MM tells you exactly where you are in millimetres. With a 100mm sensor length and a 50mm mm-display (25mm above and below level), you can be as precise as the job requires and dial-in your set-out faster than ever. Includes the SB720 adjustable staff bracket.
Buying the laser and mm-receiver together saves on standalone prices and gives you the complete indoor + outdoor precision set-out solution out of the box. Ideal for trades that need millimetre-precise readings — surveyors, fit-out crews, builders chasing pinpoint set-out, and anyone who can’t afford to guess at the +/-3mm range typical of arrow-only receivers.
Includes both products’ full warranties, calibration certificate and instruction manuals — packed in the laser’s premium carry case.
CX610G Class 3 Multi-Line Laser Overview

The CX610G rotates on its central plumb point, making it ideal for site squaring and setup. Placing the laser over your mark-out point gives fast and easy levels and right-angles across your site.

Unlike other laser companies, we'll show you what goes on inside our lasers. Built tough to withstand your jobsite, the CX610G comes with a 2 year warranty.

You've never seen a line laser as bright as a Class 3. The CX610G offers maximum usable brightness without compromise, for improved clarity in bright rooms and outdoor use with the included receiver.

Use the CX610G's fine adjustment knob to rotate your beams for absolute accuracy.

99% of Line Laser Receivers use incremental arrows — the LLR805MM tells you exactly where you are in millimetres. A 100mm sensor and 50mm mm-display (25mm above & below level) lets you set out to the millimetre, every time.

Pairing the CX610G with the LLR805MM receiver gives you levels, alignment and squares outdoors — well beyond a standard line laser's visible range. One kit replaces what used to need a rotating laser plus a separate line laser for indoor work.


| Laser Class | Class 3 |
|---|---|
| Accuracy | ±2mm @ 10m |
| Visible Range (Laser) | Up to 30m Radius (Light Dependant) |
| Range with Receiver | Up to 150m Radius (Laser Dependent) |
| Water & Dust Resistance | IP54 (Laser) |
| Laser Battery | 2 × Li-ion Rechargeable |
|---|---|
| Compatible lasers | Line lasers with pulse mode |
| Receiver Sensor Length | 100mm |
| Receiver mm Display | 50mm (25 Above & Below Level) |
| Warranty | 2 Year |

| Compatible lasers | Line lasers with pulse mode |
|---|---|
| Sensor Length | 100mm Long |
| mm Display | 50mm (25 Above & Below level) |
|---|---|
| Range | Up to 150m Radius (Laser Dependent) |
Bright, defined lines for easy install of downlights, switches and more — indoor or out, to the millimetre.
The CX610G+MM is a great tool for indoor & outdoor levels and straight lines, with mm-accurate outdoor readings.
A versatile 3D Line Laser with mm-display receiver — consistent measurements for every square & alignment of your build.
