CX610G | Class 3 Green Beam Multi-Line Laser with 4 Vertical & 1 Horizontal Green Laser Lines

Class 3 Green Beam Multi-Line Laser with Laser Plumb Dot/Plummet

The CX610G is the latest addition to our CX range of premium trade line lasers, building on the popular CX510 and CX510SS line lasers from the past. Retaining the easy-to-use Plumb Axis Rotation design, the CX610G introduces a number of major upgrades - most notably an upgrade to Class 3 Green Beam, delivering maximum visibility and performance for all indoor applications.

Rotation around Plumb Axis

Unlike standard 3D Multi-Line lasers (3D3XG/R & Green3DMax), this laser can be turned/rotated around its true plumb axis when aligning the vertical lines. What that means in practice:

• The plumb dot directly below the laser never moves
• You can rotate the laser body to align vertical lines without losing your reference point
• Squares, layouts, and set-out stay locked and accurate

This makes it dramatically easier to achieve precise 90° squares & alignment than 3D Style Line Lasers which have an offset Plumb Point that moves whenever the laser is turned/moved to align a vertical line. CX610G Plumb-Axis Line Laser ✔ Plumb dot stays fixed ✔ Rotate vertical lines freely without losing reference ✔ Faster, more accurate squaring and alignment Typical 3D Multi-Line Laser ✖ Plumb point moves when laser rotates ✖ Constant re-checking and re-alignment ✖ Harder to achieve accurate squares

Class 3 Green Beam - Maximum Brightness

At RedBack Lasers, we are committed to supplying the brightest lasers legally available. The majority of Line Lasers sold in Australia are actually Class 2 (<1mW compared with <5mW), those units simply do not deliver the same level of visibility, clarity, or working range as a true Class 3R green beam laser. The CX610G is designed for professionals who want maximum usable brightness, not marketing compromises. Green laser light is more easily detected by the human eye than red. In real-world conditions, this means:

• Greater visibility over distance
• Improved clarity in bright rooms
• Stronger reflection off common jobsite surfaces such as timber, plaster, concrete, and cabinetry

The CX610G features a Class 3R green laser beams, the brightest laser class legally permitted for sale and use in Australia (and many international markets). Class 3R lasers are fully compliant for building and construction applications, delivering substantially higher visibility than lower-class alternatives while remaining safe for professional jobsite use when handled correctly.

Fully-Featured & Tough-Built Line Laser

The CX610G is tough built from the inside out, featuring a metal internal chassis and premium German OSRAM laser diodes for long-term reliability on demanding worksites. This construction delivers superior stability, consistent beam performance, and the durability required by trades that use their tools every day—not just occasionally. Integrated Pulse Mode allows the CX610G to be used with optional line laser receivers, extending its usability into brighter conditions and outdoor environments. For advanced applications, the CX610G can be upgraded to an AT configuration with the addition of the AT1, enabling Auto-Tracking / Auto-Alignment of the vertical line to the receiver. This system automatically aligns the laser to the receiver within a 20 m working range, both indoors and outdoors—ideal for long runs, repetitive set-out, and precision alignment work.

How to use the CX610G Multi-Line Laser

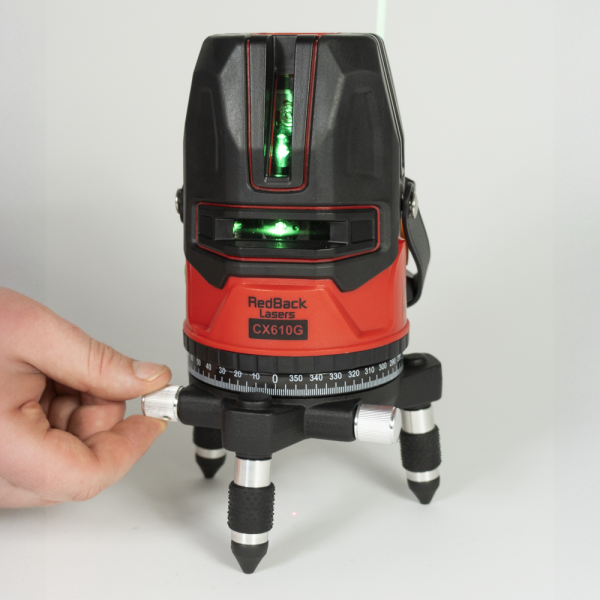

The CX610G is easy to use - simply unlock the transport/pendulum lock & the laser will automatically level within seconds. It features toggleable buttons to turn the Vertical Lines on each axis on & off as needed as well as the Horizontal Line. Once a Vertical Line is turned on, the Laser Plumb Dot will appear underneath the Laser. When you toggle both Vertical Lines on - there will be a crossline above the laser which gives you Plumb above the laser. The Laser has built-in fine adjustment knobs in order to give you maximum control over your vertical alignment.

What can I use the CX610G Multi-Line Laser for?

This Laser is a multi-line laser suitable for Indoor applications. The bright Class 3 Green Beam lines will give you the maximum performance possible even in bright conditions (not outdoors!). To use this Laser outdoors, you can pair it up with an optional Line Laser Receiver like the LLR705 Receiver or NEW LLR805MM mm Line Receiver. The CX610G features an auto-levelling Horizontal Line which will give you levels & heights easily. It has 4 Vertical Lines which also auto-level, and are at 90° to each other. This gives you accurate alignment to ensure consistent straight lines, as well as squares by using 2 or more perpendicular Vertical Lines.

Who should buy the CX610G?

The CX610G is best suited to any tradie or DIY user who relies & works around a reference mark for measurement.
