For more information about this product, including specs, comparison and even to ask for a deal, get in touch with RedBack Lasers' friendly team. We'll help you choose the best option to suit your exact needs and budget.

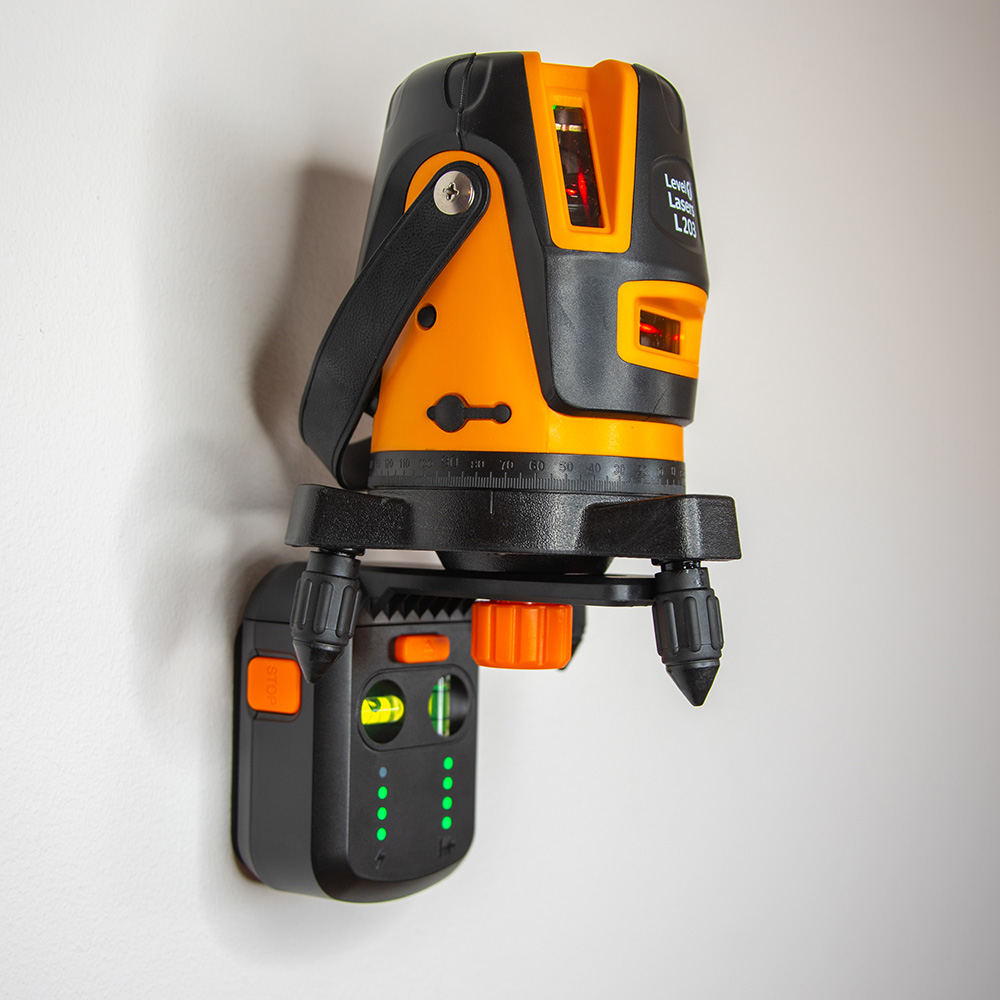

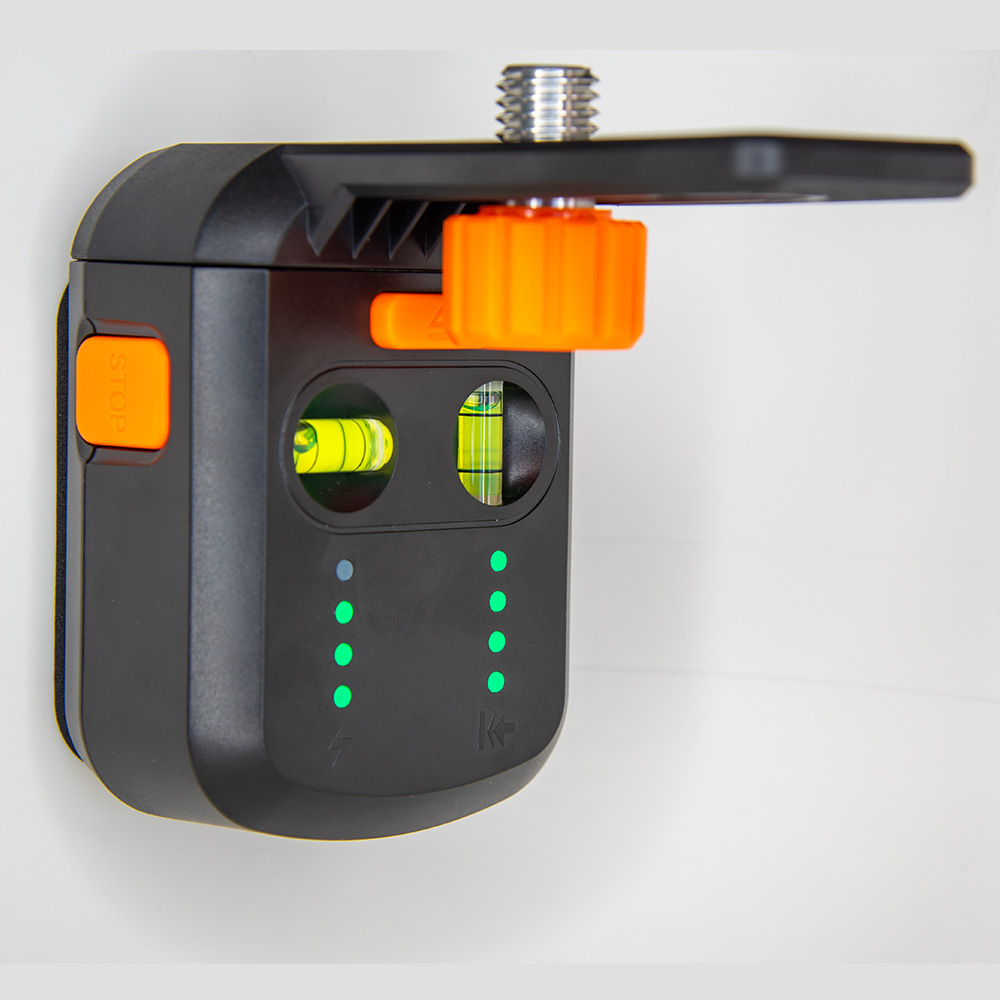

The DC10 suctions onto the wall electronically, powered by an internal Li-ion battery charged via a USB cable. The Suction mount automatically activates to maintain suction continuously. The cleaner the surface the mount is suctioning to, the better the holding power. The mount comes with a 1/4" camera thread plus a 5/8" Survey Thread adaptor. In the image above, an L203/LS607 Line laser (not included) is shown mounted to a painted plaster wall.
The Suction Mount has two sets of LED lights: one for battery level and the other for suction quality. The cleaner and less porous the surface it is mounted to, the better and stronger the mount. There is no recommended laser mounting weight, as it all depends on the surface you are mounting on. However, from our experience, most line lasers and even some lighter rotating lasers can be safely used with this device. Make sure you regularly check the battery level and have a dust-free area on the wall you are mounting to.
Accessories
Features
Electronic Suction with Automatic re-suctioning when pressure starts to drop
Laser Level Mount with 1/4" and 5/8" thread options

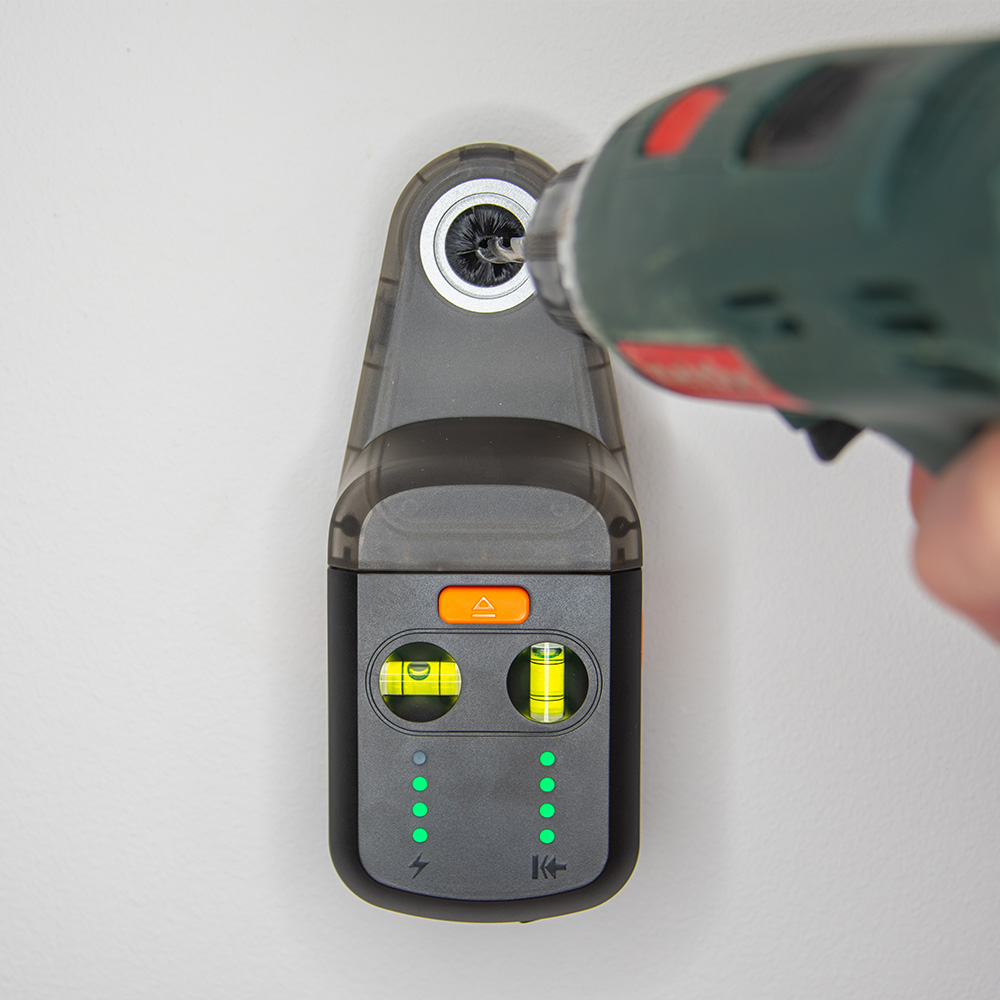

Dust Collection Unit
Green Laser Line with bubble vials for levelling
Built-in Li-ion battery with USB charging cable
In the box
Technical details
| Working Pressure | <55 Kpa |
|---|---|
| Air Flow | 2 L/m |
| Laser | Class 2 Green <1mW 500-580nm |
| Noise | <60 db |
| Manual Level Accuracy | 2mm/1m (assuming perfectly central bubble in vial) |
| Warranty | 1 Year |
| Battery | Rechargeable Battery 1800mAh |
