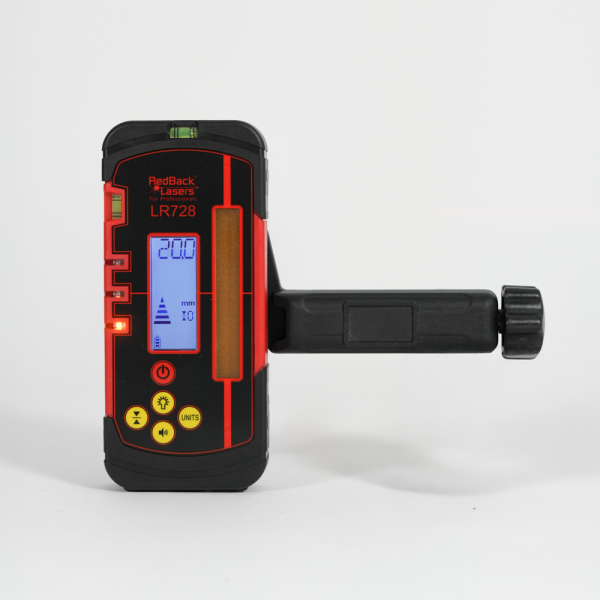

LR728
0.5mm Millimeter Receiver for Rotating Lasers (40.0mm Display)
- Maximum Precision - 0.5mm readings
- Premium Cast Metal Staff Bracket
- Massive Sensor Window for Quick Detection
- Works with Red & Green Rotating Lasers
Some accessories shown are optional extras. See what's included
Out of stock — get notified
Leave your details and we'll let you know the moment it's back.
- Free delivery Australia-wide. Dispatched fast from our warehouse.
- 1 year warranty.
- Talk to a laser specialist. Call 1800 769 858 or .
Overview
RedBack Lasers' LR728 Premium Rotating Laser Receiver Our best Millimeter Receiver for Rotating Lasers just got better! 0.5mm Readings for Red & Green Rotating Lasers, complete with Cast Metal Staff Clamp.
Introducing our brand new RedBack Lasers Millimetre LR728 Receiver – The LR728 is our toughest built Millimeter Display Receiver to date, suitable for both RED and GREEN rotating laser levels. The standout feature of the LR728 is the millimeter display which can show readings as precise as +/- 0.5mm, a first for RedBack Lasers. The receiver itself has an 80mm laser reception sensor window, dual LCD back lit displays and three LED displays.
The RedBack LR728 can provide a 0.5 or 1 millimetre reading of up to 20mm above and 20mm below the level point and counts down the millimeters as you get closer to the level. You can also set a custom zero-point based on the existing position of the laser beam if you wish.
The LR728 has 4 accuracy settings for level +/-0.5mm, 1mm, 5mm and 10mm level bands. The LR728 comes with a BRAND NEW heavy-duty cast metal staff clamp (SBPro) and also has magnets built into the casing for mounting on steelwork etc.
Advantages
One of the biggest advantages of this Millimeter Receiver over a standard one is when performing coarse levelling tasks. For example, If all you need is to be within 20mm (+/- 10mm) of level then just keep an eye on the reading and make sure it never hits 11mm either above or below. This allows your onsite workflow to be much more efficient than having to constantly find the exact level mark on most conventional receivers.
The LR728 millimetre detector is powered by 2 x “AA” batteries, we include a rechargeable set and charger pack & cable when you purchase this receiver. Do not attempt to recharge normal batteries in this charger pack.
This Receiver is most commonly used to detect Horizontal Beams (Level), but can also be used on it’s side to detect Vertically traced Rotating Laser lines as well (for use with Lasers that can be used Vertically for Alignment). Instead of detecting up and down, the Receiver with give readings of Left & Right, and with the same mm accuracy settings as listed above. This is commonly used for Fencing, Alignment or Set-out applications.
The RedBack LR728 is suitable for most visible rotating lasers and picks up both Red & Green. Suitable on both Class 2 & 3 Rotating Lasers.
Looking for a replacement Staff Clamp for the LR728? You can find that HERE
The Ideal Receiver for…
Rotating Lasers are most commonly used outdoors for longer range applications like Building, Fencing, Concreting, Landscaping and more. The LR728 is the ideal receiver for outdoor work with a Rotating Laser, but can also be suitable for indoor applications like Tiling, Alignment, Fit-out if required. Millimeter Receivers are by far the most accurate receiver to use, and also help with onsite efficiency by giving quick, responsive and accurate readouts. This Receiver will not work with Line Lasers even if they have pulse mode, due to the pulse mode of a line laser being a different frequency to what this Receiver can detect.
RedBack Lasers have a wide range of Rotating Receivers to suit all budgets, colors and applications, as well as larger Machine Receivers to mount to Excavators, Graders, Skid Steers and more for Earthmoving, Plumbing, Levelling applications. If you need any advice on which Receiver might suit your laser or application best, feel free to contact our friendly staff on 1800769858 and we can guide you through the various options available.
Videos
LR728 0.5mm Rotating Laser Receiver - Feature Deep Dive
Key Features
- 0.5mm Readings for Maximum Accuracy & Effiency
- 20.0mm Readings above & below level
- 80mm Long Detection Window
- Dual Sided Display for Convenience
- Visual & Audible Indications
- 0.5mm, 1mm, 3mm, 5mm, 10mm Accuracy Settings
- Auto-Tracking & Auto-Align Features with Compatible RedBack Lasers
- Suitable for Both Red & Green Rotating Lasers
- Cast Metal Staff Bracket
What's Included
- LR728 0.5mm Rotating Laser Receiver
- SBPro Cast Metal Staff Bracket
- AA Batteries
Full Specifications
| Receiver range | 700m diameter (350m radius) with compatible lasers |
|---|---|
| MM Reading Range | 20.0mm Above & Below Level |
| Sensor Window | 80mm Length |
| Accuracy Settings | 0.5mm, 1mm, 3mm, 5mm, 10mm |
|---|---|
| Compatible lasers | Rotating lasers |
| Battery Type | AA Batteries |
