The DGL1010GM is an Electronic Levelling Digital Grade / Slope with tracking Auto Grade Match rotating laser

Description

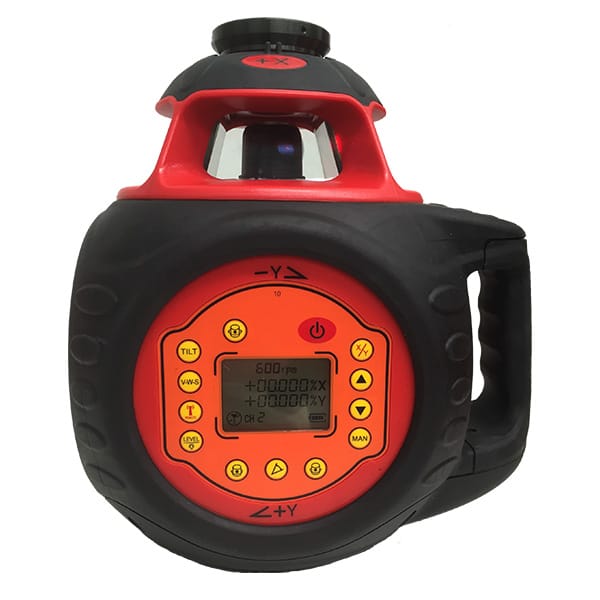

The RedBack Lasers DGL1010GM Digital Grade / Slope Laser with Tracking laser is fully electronic self levelling and features dual digital grade setting either from its control panel or Smart Remote.  It is the ultimate in Grade setting on site.

Digital Grade with Tracking

DGL1010GM can set up to a 10% grade one axis at a time or both axis simultaneously and grades can be set to 3 decimal places.  The sophisticated mechanism will even re-level and re-set grade automatically if disturbed or you can select TILT to warn of any major knocks or vibrations, so, providing peace of mind your grades are accurate.

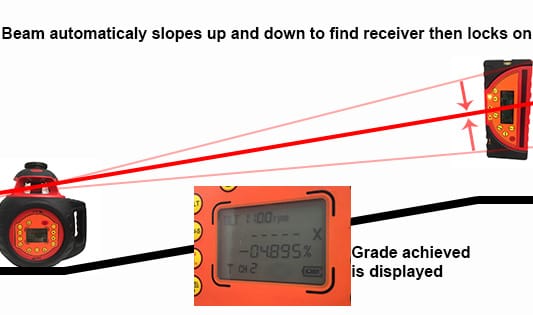

The DGL1010GM can, in addition, auto grade match on either axis by locking onto the special two way RF communicating tracking millimeter receiver.  The laser level on the selected axis slopes up and down to find the receiver and then locks onto its position, once locked the laser even displays the percentage grade it has matched to. This tracking feature can also be used with the laser on its side for vertical alignment. Making it an awesome fencing laser, see video on fence alignment above.

Vibration Settings

The DGL1010GM also features V-W-S vibration and Wind Settings, during high winds or on side with heavy machinery the laser may stop to re-level frequently.  To save time select V-W-S and the laser will continue rotating whilst making these small adjustments, thus saving a great deal of time on site.

Tilt

Another feature is TILT.  When selected this operates much like tilt on a pin ball table, any major movement or vibration and the laser will shut down, thus warning the user.  The user can then make sure everything is still true to the datum and let the laser re-start.

Horizontal and Vertical

RedBack Lasers DGL1010GM can also operate in vertical rotation mode for alignment and site layout applications and has scan line mode to intensify laser clarity for indoor fit out.

Vertical Tracking

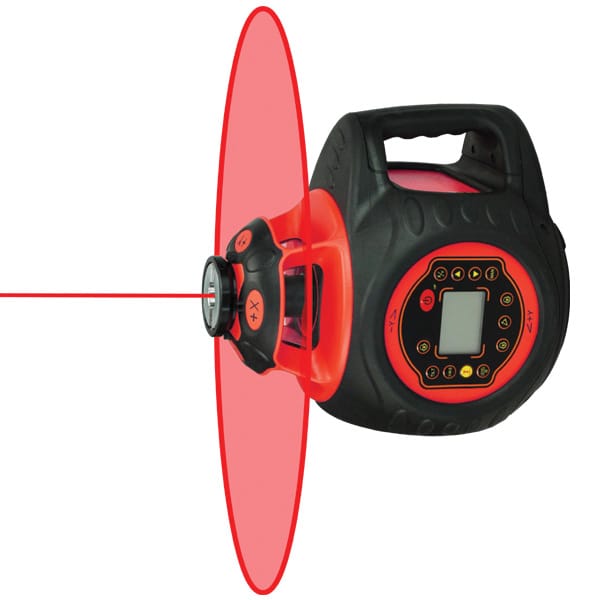

The  DGL1010GM can use its tracking receiver in vertical mode with the laser on its side.  This is handy for jobs such as fence alignment or site squaring layout when used in combination with the laser dot at 90 degrees to the rotating beam.

Included

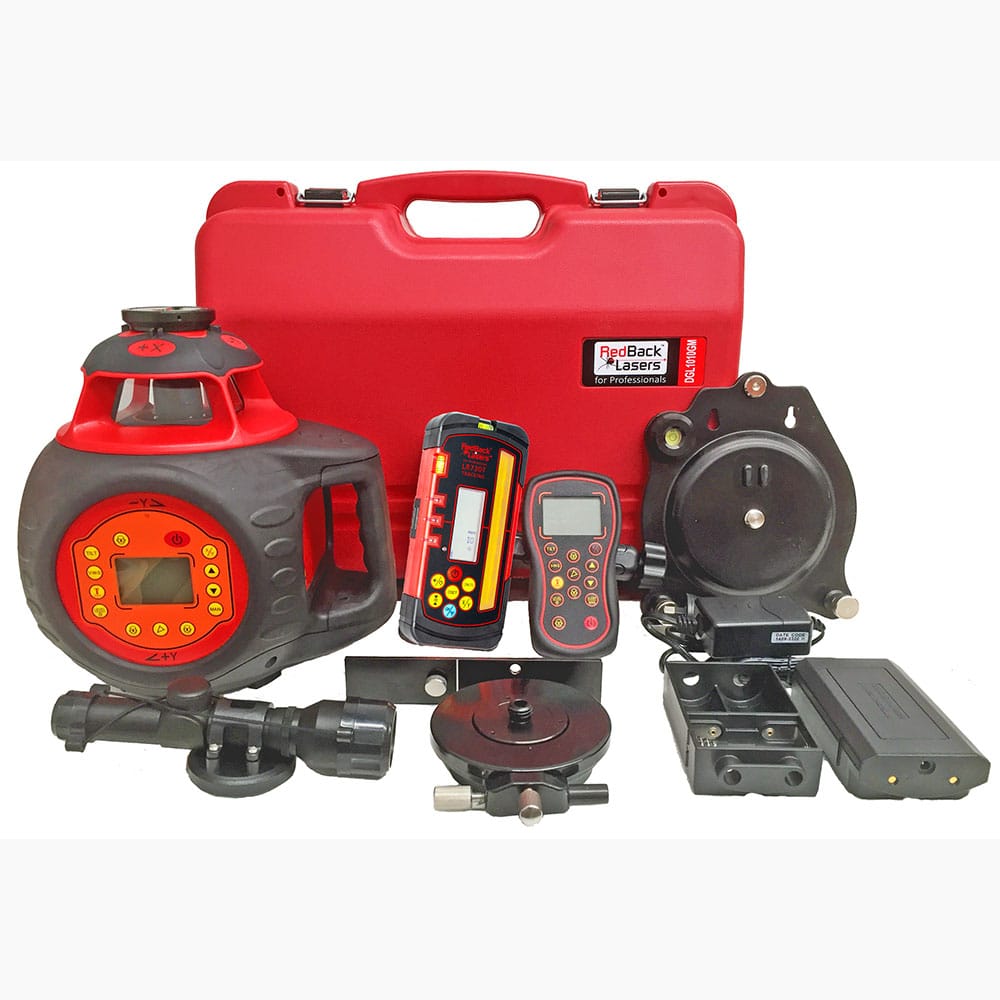

The DGL1010GM comes with a Smart Remote with LCD display, the remote can control nearly all the facets of the laser level but is particularly handy for setting digital grades, for example, when you have the laser high in the air (using HDET 3m Tripod).  This laser comes with a special heavy duty double LCD display receiver that not only sets automatic grade match but also has a large reception window and displays distance from level in millimeters, Also included is Li-ion rechargeable laser level batteries and charger, Axis alignment scope, axis fine adjustment plate, side mount plate and a hard shell carry case.

The DGL1010GM laser is suitable for just about any general levelling tasks but is designed for serious grade or slope setting in earthmoving and civil construction.

So if you need a serious digital grade laser, with dual axis, auto grade match, 0.5 millimeter receiver and Li-ion power all as standard then the DGL1010GM by RedBack Lasers is the tool for you.

The RedBack DGL1010GM comes with a 5 Year manufacturers warranty.

• Electronic Self Levelling
• Horizontal Rotation for Levelling
• Vertical Rotation for Alignment and Site Layout
• Digital Dual Grade Setting
• Smart Remote Control
• V-W-S and TILT modes
• Scan Line modes for indoor fit out

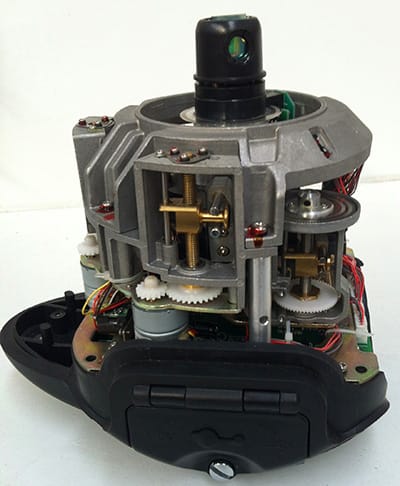

• Internal cast metal Safety Cage
• Direct Drive Rotation
• INCLUDES Li-ion Rechargeable Battery & Charger also Std “D” cell Battery Operation
• RF Remote Grade Match Dual LCD Receiver with millimeter display and large reception window
• NEW – 0.5mm Tracking Receiver with Cast Metal Staff Clamp LR730T
• Side Mount Plate
• Axis Alignment Scope
• Axis adjustment plate
• 5 Year RedBack Warranty

All RedBack Laser Levels have been Checked and Calibrated in Australia and come with a FREE certificate of calibration.

Specifications

• Range – 700m diameter using Millimeter Receiver
• Accuracy – +/- 1mm at 20m
• Grade – Dual Axis +/- 10.000%
• Remote Range – 60m
• Laser Class – class 3 <5mW 635-670nm red
• Water Dust Resistance – IP66

Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.

RedBack Lasers MR710D Machine Mounted Receiver with In-Cab Display

RedBack Lasers’ MR710D machine-mounted receiver comes complete with both clamp and magnet mounts. The MR710D comes with a wired In-Cab Display (10m cable) to give you height indications conveniently positioned in front of the operator. Machine Receivers increase your on-site efficiency by allowing the operator to get height readings from the cabin of their machine, rather than needing to check with a staff. The MR710D is designed to work with most red rotating laser levels.

The clamp mount allows you to firmly attach the receiver onto a machine with rod structure (not supplied) fixed to a boom or blade/bucket, giving extremely accurate height readings of these implements.
The magnet mount is primarily designed to attach to the side of an Excavator dipper arm, giving height readings of your bucket, although it can also be attached to square tubing for blade use, or to the side of a skid steer/loader.
The In-Cab Display helps in situations where visibility of the Machine Receiver would be poor, for example when the Receiver is mounted high in the air on a pole, or when using Implements like Backhoes or Land Planes on the back of your Tractor

The MR710 features 360 degrees of reception and can pick up a laser anywhere within its massive 250mm reception window.  When the laser moves out of this reception window the receiver will flash slowly indicating the last height the laser was detected.

On the receiver are 5 extremely bright clusters of LED lights indicating the height of the laser.  These display both above and below level as well as on level.  The RedBack Lasers MR710 has an internal Ni-mh battery that can be charged with the included mains charging unit.  It can also operate on a 12 or 24V system with the included cable with crocodile clips.  Note though on a 12V system the receiver will still need a mains charge from time to time as the 12V system will only top up the internal battery not fully charge it.

The MR710 is the ideal machine receiver for use over multiple machines and implements due to having both magnets and clamps, making it an extremely versatile unit. Machine receivers are ideal for all types of earthmoving, excavating, and groundworks for level and grades and can be installed on a number of machines.  This is a great receiver for Excavators, Box Blade, Grade Blade, Dozer, Bobcat, Skid Steer and more. Machine Receivers increase your on-site efficiency by allowing the operator to get height readings from the cabin of their machine, rather than needing to check with a staff.

Features

• 360 Degree Sensors for all-round reception
• Large 250mm Reception Window
• Laser Received Height Flash Indicator
• Fine and Coarse Accuracy settings (3-5mm to 5-25mm)
• IP66 water and dust-tight
• Internal Ni-Mh battery and Mains Charger, cable for 12V and 24V operation.
• Operates with Red Beam Rotating Lasers.
• Two Year Warranty

Also available is a Magnetic Mounted unit MR706 HERE
Also available is a Clamp Mounted unit MR708 HERE
