CX610G+

CX610G Class 3 Green Multi-Line Laser & LLR705 Outdoor Receiver

★★★★★5.01 review
  • Plumb-Axis Rotation — plumb dot stays fixed while you rotate vertical lines for fast, accurate squares
  • A Class Above — Class 3R Green Beam, up to 5× brighter than standard Class 2 lasers
  • 4 Vertical + 1 Horizontal Lines for squares, alignment, plumb and levels
  • Take it outdoors — included LLR705 Receiver detects red & green line lasers with pulse mode
  • Premium German OSRAM diodes, ultra-fast levelling pendulum, steel safety chassis

Some accessories shown are optional extras. See what's included

$899.00inc GST Out of stock

Out of stock — get notified

Leave your details and we'll let you know the moment it's back.

  • Free delivery Australia-wide. Dispatched fast from our warehouse.
  • 2 years warranty.
  • Talk to a laser specialist. Call 1800 769 858 or .

Overview

The CX610G+ bundles the brand-new CX610G Class 3 Green Multi-Line Laser with the LLR705 outdoor line laser receiver — Plumb-Point rotation laser plus outdoor capability in one kit. Class 3R green beam multi-line laser with 4 vertical + 1 horizontal lines, rotating around its plumb axis for easy squares and set-out — paired with the LLR705 receiver so you can take it outdoors for levels, alignment and square in full sunlight.

Videos

CX610G Class 3 Multi-Line Laser Overview

Key Features

Plumb-Point Rotation

Plumb-Point Rotation

The CX610G rotates on its central plumb point, making it ideal for site squaring and setup. Placing the laser over your mark-out point gives fast and easy levels and right-angles across your site.

Steel Safety Chassis

Steel Safety Chassis

Unlike other laser companies, we'll show you what goes on inside our lasers. Built tough to withstand your jobsite, the CX610G comes with a 2 year warranty.

Class 3 Maximum Brightness

Class 3 Maximum Brightness

You've never seen a line laser as bright as a Class 3. The CX610G offers maximum usable brightness without compromise, for improved clarity in bright rooms and outdoor use with the included receiver.

Fine Adjust

Fine Adjust

Use the CX610G's fine adjustment knob to rotate your beams for absolute accuracy.

LLR705 Outdoor Receiver Included — Take Your Line Laser Outside

LLR705 Outdoor Receiver Included — Take Your Line Laser Outside

The LLR705 line laser receiver detects red & green line lasers with pulse mode — even in full sunlight where you can't see the beam. Pair with the CX610G for outdoor levels, alignment and square in one kit. Includes the SB705 staff bracket and 9V battery.

LCD Display + Audible & Visual Feedback

LCD Display + Audible & Visual Feedback

The LLR705 features a progressive LCD bar display, bright LED indicators (above/on/below) and different audible beeps. Near & Far Mode lets you optimise for short or long working ranges, and accuracy is rated to 1mm.

  • Class 3 Green Beam lines for Maximum Brightness
  • Premium German OSRAM Diodes
  • Laser Rotates around its Plumb Axis for easy & accurate squares
  • 4× Vertical Lines at 90° to each other for Square & Alignment
  • 1× Horizontal Line with 120° Fan Angle for Levels
  • Class 3 Red Plumb Dot / Laser Plummett below
  • Tough Built Design for Aussie Tradies
  • Ultra-fast Auto-Levelling Pendulum
  • Fine-tune adjustment for vertical lines
  • Pulse Mode for the included LLR705 Line Laser Receiver
  • Toggle Buttons for Individual Lines + Battery Status Indicators
  • 2× Li-ion Rechargeable Batteries with USB-C charging
  • LLR705 Receiver detects Red & Green Line Lasers with Pulse Mode
  • LCD Progressive Display + LED Above/On/Below Indicators on Receiver
  • Comes complete with SB705 Staff Bracket for outdoor levelling
LLR705

Also in this kit: LLR705 RedBack Line Laser Receiver with LCD Display - Outdoor Line Laser Upgrade

  • Line Laser Receiver which can detect Line Laser Beams Indoors & Outdoors
  • Suitable for both Red Beam & Green Beam Line Lasers with Pulse Mode
  • Able to detect Vertical Lines for Alignment
  • Able to detect Horizontal Lines for Levelling
  • LCD Display with Graduations

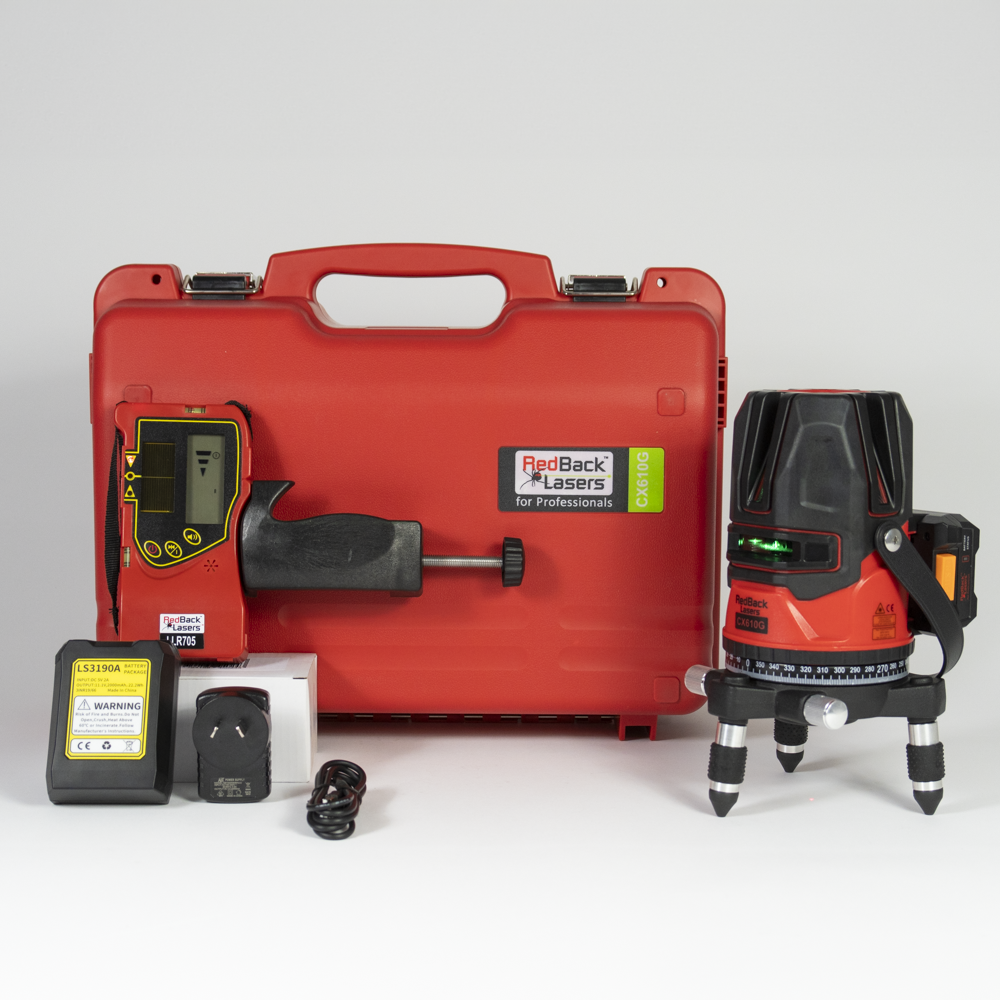

What's Included

Everything included with the CX610G+
  1. 1CX610G Laser LevelClass 3 Green Beam Line Laser
  2. 2BATMAX x1Li-ion Rechargeable Battery
  3. 3BATMAX x1Li-ion Rechargeable Battery
  4. 4LLR705 ReceiverLine Laser Receiver for Outdoors
  5. 5SB705 Staff BracketAttaches Receiver to Staff
  6. 6240V Power PlugFor charging
  7. 7USB-C CableFor charging
  8. 8Case BHard Case w/ Protective Foam
LLR705

Plus the LLR705 RedBack Line Laser Receiver with LCD Display - Outdoor Line Laser Upgrade

  • LLR705 Line Laser Receiver
  • SB705 Staff Bracket
  • 9V Battery

Full Specifications

Laser ClassClass 3
Accuracy±2mm @ 10m
Visible Range (Laser)Up to 30m Radius (Light Dependant)
Range with Receiver40m Radius / 80m Diameter (Green Beam with LLR705)
Water & Dust ResistanceIP54
Laser Battery2 × Li-ion Rechargeable
Compatible lasersLine lasers with pulse mode
Receiver DisplayLCD Progressive Display + LED Above/On/Below Indicators
Warranty2 Year
LLR705

LLR705 RedBack Line Laser Receiver with LCD Display - Outdoor Line Laser Upgrade

Compatible lasersLine lasers
Receiver range300m diameter (150m radius)

Built for Professionals

Electricians

Bright, defined lines for easy install of downlights, switches and more — indoor or out.

Carpentry

The CX610G+ is a great tool for indoor & outdoor levels and straight lines, with the outdoor receiver included.

Building

A versatile 3D Line Laser with outdoor receiver — consistent measurements for every square & alignment of your build.
