MCR900 Single Receiver Machine Control System earthmoving automation system

machine Laser Control System Single Receiver unit

RedBack Lasers MCR900 Single Receiver Machine control Unit

RedBack Lasers MC900 Automation Laser Receiver unit

machine Control System earthmoving hydraulic

Machine Laser Control Single System Control Unit

MC900 Machine Control Automation Receiver Unit

Machine Control setup example with Single MCR900 RedBack Lasers system DGL1010GM laser and Box Blade on a Skid Steer Machine

Single Receiver Machine Control laser system on a box blade small skid steer

MCR900 Single Receiver Laser Machine Control System in use

Machine Control Automation Single receiver control unit MCR900 in tractor cab Earthmoving Automation System

RedBack Lasers earthmoving Machine Automation System Control with Single receiver system on Landplane Land Plane

MCR900 – RedBack Laser Machine Control System with Single Receiver and Hydraulic Control Unit

Original price was: $4,180.00.Current price is: $3,499.95. inc. GST

SKU: 0754169449926 Brand: RedBack Lasers

Single-receiver laser automated control of your blade/bucket
In-cab manual control & auto switch for easy operation
Comes complete with cables for hydraulics, receivers & power source
360° detection with ±5mm or 10 mm accuracy—ensures precise grading
Easily customizable to suit your specific needs

✅ In stock | Fast Dispatch

Check Delivery Time

Sensor 250mm Long

Versatility

MCR900 Single Automation

A more in-depth look at RedBack Lasers Single Receiver Machine Automation System ideal for Land Planes and other implements. More details and videos at; https://www.redbacklasers.com.au/machine-automation-systems/

RedBack Lasers Machine Control Automation looking at a Single laser Receiver System.

YouTube Video UEx1QVdoSURCV3BlV2tKZ2l0UXphckwxbFFyQ2ZMQWpuVi41NkI0NEY2RDEwNTU3Q0M2

RedBack Lasers Machine Control Automation looking at a Single laser Receiver System.

RedBack Lasers 1.2K views

RedBack Lasers can design the perfect customised machine automation system for your particular needs. In this unusual example, the customer wants to automate a single ram on a landplane but has other manual rams on the implement that need manual control. Do you have a custom automation job you need a quote on? then call RedBack Lasers on 1800 769 858

RedBack Lasers Machine Automation Custom Single Ram Automation System

YouTube Video UEx1QVdoSURCV3BlV2tKZ2l0UXphckwxbFFyQ2ZMQWpuVi4yODlGNEE0NkRGMEEzMEQy

RedBack Lasers Machine Automation Custom Single Ram Automation System

RedBack Lasers 266 views

RedBack Lasers Machine Automation systems options included are Single Receiver Systems and Dual Receiver Systems. These systems control hydraulic levelling implements by automatically raising and lowering the cut compared to real-time information from a laser level. https://www.redbacklasers.com.au/machine-automation-systems/ For more information call us on 1800 769 858

RedBack Lasers Machine Control Automation Systems.

YouTube Video UEx1QVdoSURCV3BlV2tKZ2l0UXphckwxbFFyQ2ZMQWpuVi4wMTcyMDhGQUE4NTIzM0Y5

RedBack Lasers Machine Control Automation Systems.

RedBack Lasers 6.4K views

An introduction to RedBack Lasers Single and Dual Receiver machine Control Automation Systems

YouTube Video UEx1QVdoSURCV3BlV2tKZ2l0UXphckwxbFFyQ2ZMQWpuVi41MjE1MkI0OTQ2QzJGNzNG

An introduction to RedBack Lasers Single and Dual Receiver machine Control Automation Systems

RedBack Lasers 945 views

Laser Machine Control System with Single Receiver & Hydraulic Control Unit

RedBack MCR900 Laser Machine Control System with Single Receiver. Want to automate your Land Plane or Box Blade, with the Redback Lasers MCR900 Machine Control System you can. The MCR900 offers autonomous control of your implement adjusting to the laser you have set through the single receiver and solenoid controller which adjusts your hydraulic ram. This works in conjunction with your laser which is supplied separately and often this is paired with the Redback Lasers DGL1010GM Laser. Your implement must be fitted with a Hydraulic block with a solenoid control valve. We can help you with the hydraulic requirements to marry into this system. Great for Land Planes, Box Blades, Dozers and more.

This machine control system comes with

The in-cab control unit and mount. This allows you to select between manual or automation control and adjust between fine and coarse operation
The Receiver and connection cable. To be attached to a pole on your machine
The solenoid switches and cable. To operate the solenoid control valve

What you will need

You will need a Red Beam Rotating Laser Level
A pole on your implement to attach the receiver to.
Live hydraulic flow to the implement with a hydraulic block with a solenoid control valve
A flow dampener on the hydraulic block so you can restrict your hydraulic flow.

Ideally, it would be best if you had a hydraulic flow rate of 40 Lpm or less.

Installation example on a Landplane and Tractor.

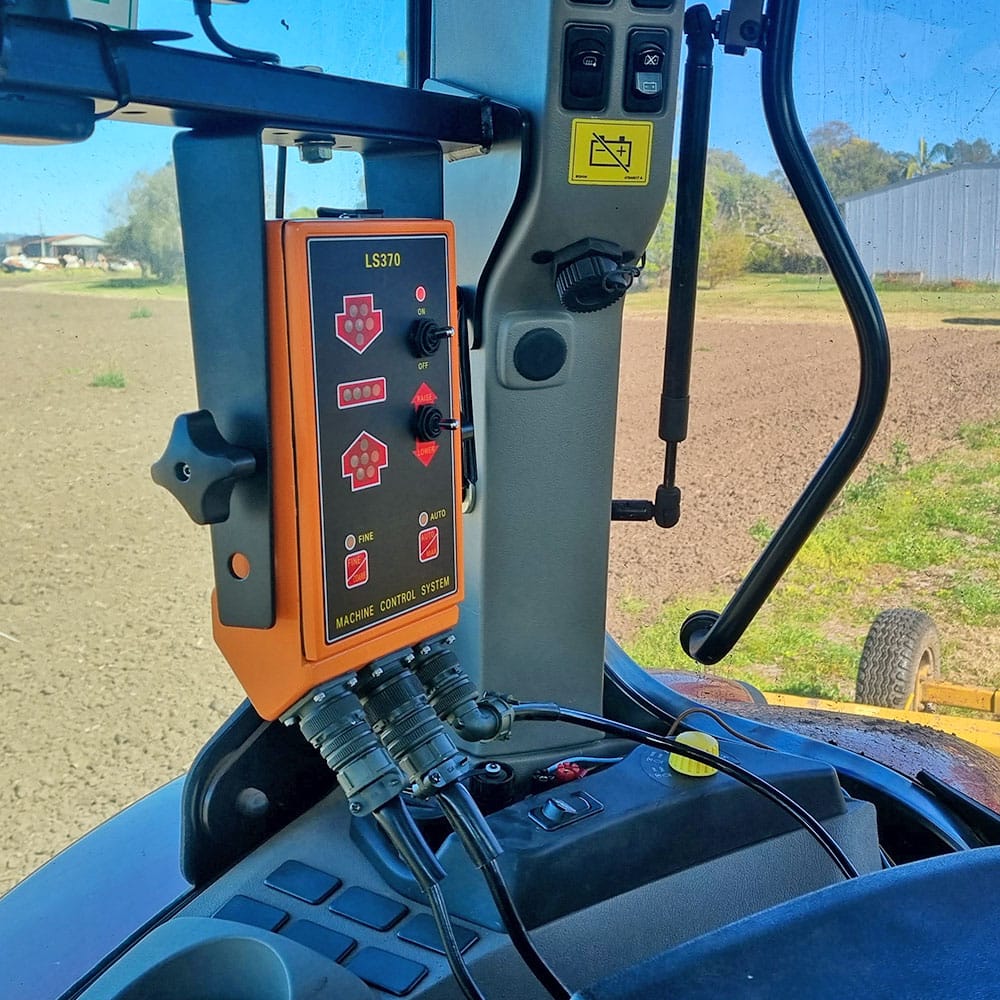

: Master Unit fitted into a Tractor

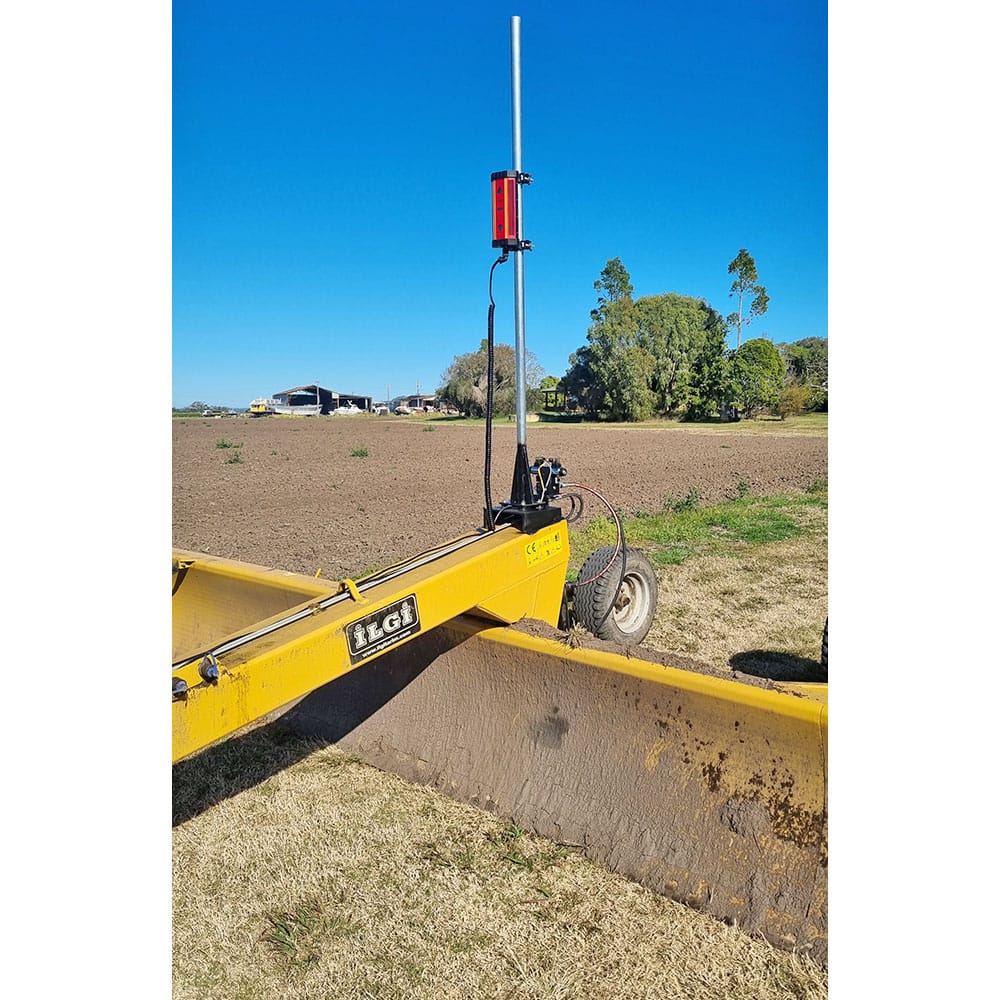

: Receiver mounted on a Land Plane

Alternatively, we can design a complete custom solution for your needs

We can design a complete custom wiring harness and breakout junction boxes. Connection Wiring harnesses to allow direct manual machine control of the implement. Complete hydraulic valve banks, blocks and flow restrictors to match your equipment. See the videos below for examples of packages we have made for previous customers.

If you are wanting more information regarding this or requiring a quote on a full setup please give our office a call on 1800 769 858

Warranty – 2 Year RedBack Warrant on RedBack Lasers components supplied

Also available is a dual receiver version MCR910 for depth and angle of cut machine automation HERE.

MCR900 Features

Laser Guided Earthmoving Automation
Manual & Automated Height Control of a Blade style implement
1 x Receivers controlling 1 x Hydraulic Ram (or 2 Rams in series)
Bright LED Height Indications for Manual Control
Control Box with Manual/Auto Switch, Joystick Manual Control, Accuracy Settings
Comes complete with cables to receiver, hydraulic valves & battery
Customization is available to suit your specific needs.
Suitable for Single & Dual Grades

MCR900 Specifications

Receiver Range 400m Radius, 800m Diameter (with Class 3 Red Beam Lasers)

Receiver Detection 360°

Detection Accuracy ±5mm Fine, ±10mm Coarse

Detection Window 210mm Long

Operating Temperature -10℃～+50℃

Power Supply DC 12V/24V

Solenoid Output Proportional Time (PT) Valve Control

Valve Compatibility Dual Proportional Time (PT) valve control

Maximum output current 10A

Dust Water Protection IP56 Controller - IP66 Receivers

Warranty 2 Year Warranty

What's included in the MCR900?

MCR900 Single Automation Control Box
MC900 Series Automation Receiver
Receiver to Control Box Cable
Control Box to Solenoid Cable
Control Box to Power Cable
Hard Carry Case

RedBack Lasers Service Department can also service and calibrate the following brands when possible (not all laser levels are built for recalibration - so check with us first); Topcon, Leica, Rugby, Geo Fennel, Spectra, Lasers, Powerline, Tuf, Bosch, Dewalt, Laser Tec, General, Hilti, Spectra Precision HV302, CPI, Datum, Fukuda and more. Call us on 1800 769 858 or have a look at our Service & Calibration Page for further info.

If you're looking for a handy grade conversion tool for calculating slopes & grades, check out this page on Laser Level Review.

Accessories featured in photos or video may be OPTIONAL, at an extra cost. Specifications may change without notice.
